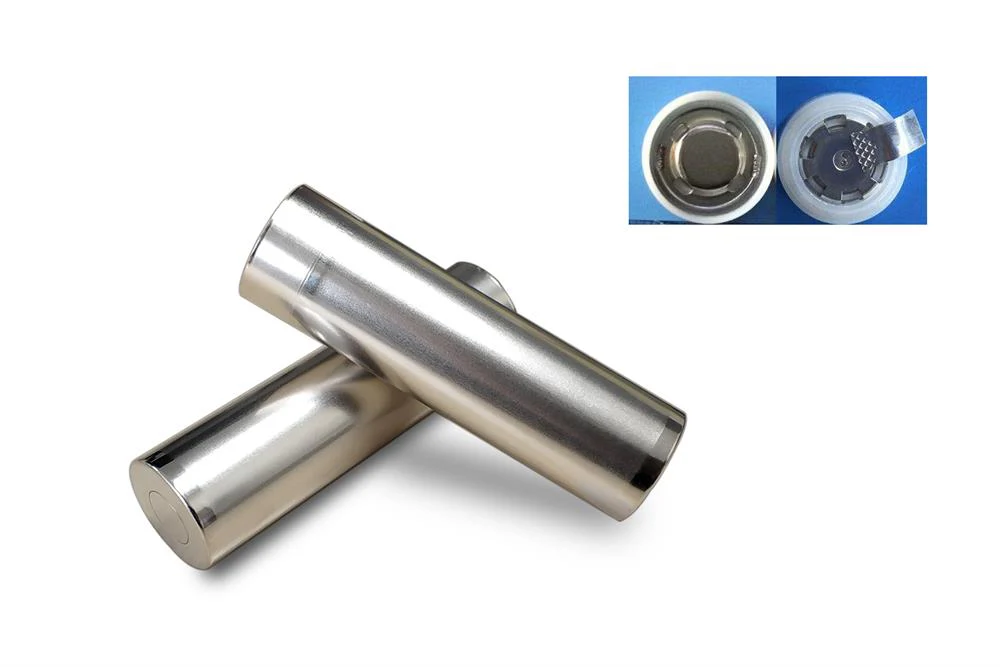

18650 Cylinder Cell Case with Insulation O-ring, without PTC Thermistor - 100 Pcs/package - Lib-18650-N

Product image 1

18650 Cylinder Cell Case with Insulation O-ring, without PTC Thermistor - 100 Pcs/package - Lib-18650-N

Specifications

Cap
  • Cap without Built-in PTC Thermistor
Dimensions (Dia x Height)
  • Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
  • Top Cap: 17.45mm(D) x 4.30mm(H)
  • Top Insulator: 12.5mm(D) x 0.19mm(H)
  • Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
  • Case and cap are made of Nickel plated A3 steel
  • Sealing spacers are made of nylon
  • The insulating gasket is made of PET
Weight
  • 9.50 g/pcs
Note
  • Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)
  • 18650 case's grooving and sealing machine is available upon request

Application
  • To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510

    Grooved by MSK-500

    Sealed by MSK-510

    Demo Video How to make cylindrical cell

    Cutter for de-assembling
