2KW Laser Welding System for Prismatic Cells (Tab Welding and Top Lid Sealing) and Cylindrical Cells - MSK-LW-S2000

Product image 1
1 / 2

2KW Laser Welding System for Prismatic Cells (Tab Welding and Top Lid Sealing) and Cylindrical Cells - MSK-LW-S2000

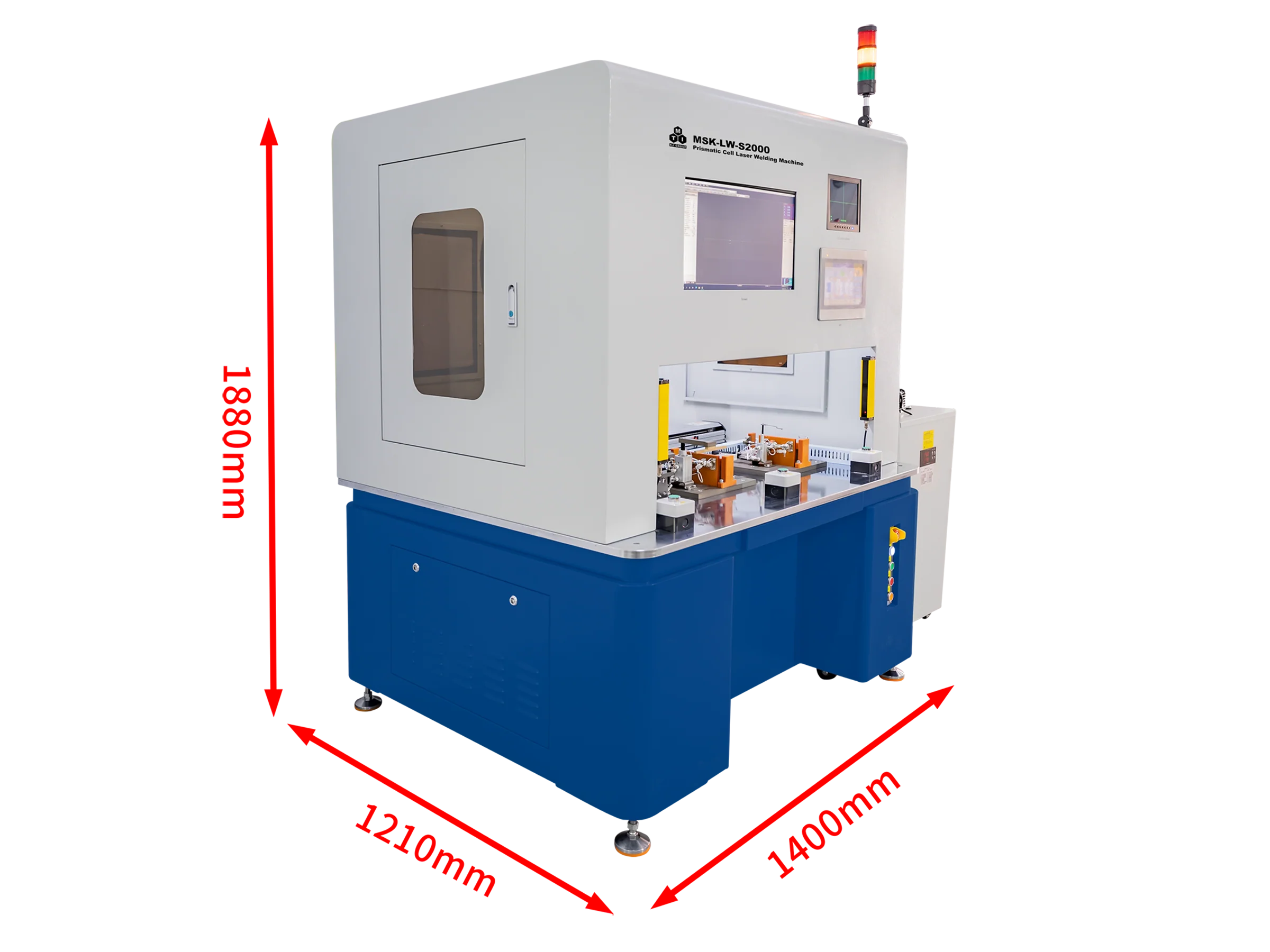

The Laser Welding System MSK-LW-S2000 is designed for the prismatic cell tab welding and top lid sealing.
There are 2 working stages. One is for the prismatic cell current collector welding. The other one is for the prismatic top lid/cap sealing.
The laser welding and sealing is the most critical step in the prismatic cell assembling procedure.

SPECIFICATIONS:

Advanced Features
  • Laser Type: Fiber laser
  • It is designed for high reflective materials such as aluminum and copper
  • The stable laser output ensure high-quality welding
  • The CCD Positioning. Quick positioning speed X: 500 mm/s, Y: 500 mm/s, Z: 500 mm/s.
  • The XY Stage Control System. Effective traverse distance X: 880 mm, Y: 230 mm, Z: 2400 mm.
  • It is suitable for prismatic cell case sealing with different dimensions and sizes
  • It is available to customize the positioning fixture based on the cell dimension.
Input Voltage
  • AC 220V +/- 10%, 50Hz, single phase
Power
  • Maximum Power Consumption: 3500 W
Welding & Sealing Area
  • Prismatic cell tab welding: 600 mm (L) x 300 mm (W) x 300 mm(H)
  • Prssmatic cell top lid sealing: 600 mm (L) x 300 mm (W) x 300 mm (H)
  • Maximum prismatic cell size: 600 mm (L) x 500 mm (W) x 300 mm (H)
Laser
  • Fiber laser power: 2,000 Watts
  • Wavelength: 1075 nm +/- 10 nm
  • Beam: M2 < 1.3
  • Continuous Mode / Manual Mode
  • Power adjustable: 10% - 100%
  • Fiber cable diameter: 50 um
  • Fiber cable output: QBH/QD
  • Fiber cable length: 20 meters
  • Stablitiy: <2%
Positioning
  • CCD Camera positioning
  • Accuracy: 0.02 mm
Cooling
  • 3 KW Water Cooling included. 20-25.
  • 33 L/min cooling water required
  • Power for water chiller: AC 220V +/- 10%, 50Hz, single phase, 2800 W
Compliance
  • CE Certified
  • NRTL certification are available upon request at extra cost
Shipping Weight and Dimension
  • TBA
Application Notes
  • TBA
