• Input power: 208 - 240 VAC,  50/60 Hz (A transformer can be used for 110 V)
• Ultrasonic output: 0 - 130 W adjustable
• Ultrasonic frequency: 40 kHz

• 17" Lathe Machine with Tailstock for alignment
• Input Power: 100 - 240 VAC, 50/60 Hz
• Current Draw: 0.5 - 15 A
• Max. Sample Length: 430 mm (17") center to center
• Max. Sample Diameter: 44 mm
• Max. Rotation Speed: 3000 r/min w/o sample

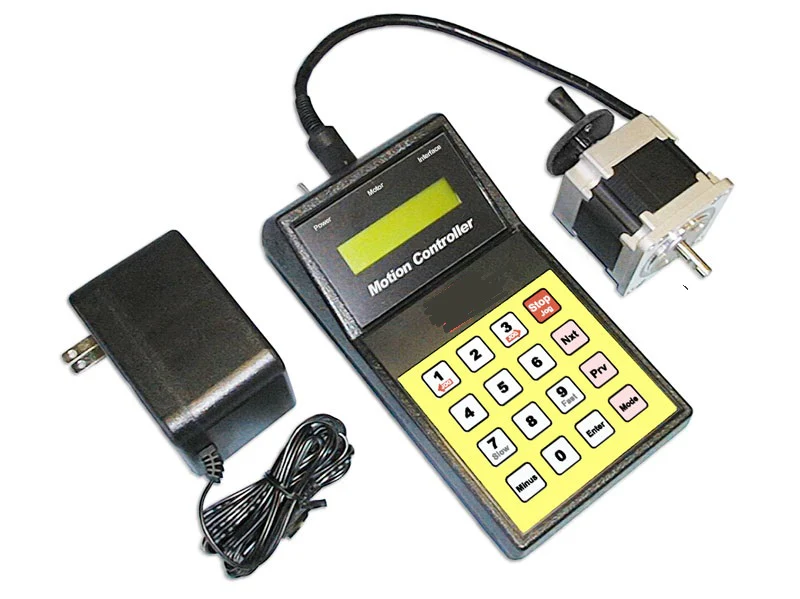

• A motion controller with a step motor for the X-axis is included
• X-axis moving speed: 1-50mm/min adjustable

• PZT (piezoelectric zirconate titanate crystal)
• Diameter: 25 mm

• 2.5 m (8.2 ft)

• Two Spray nozzles with KF-25 Adapter included. (Click the picture below to see details)
• One cylindrical type - provides a narrower spray pattern ~2 cm diameter
• One cone type - provides a wider spray pattern ~4 cm diameter
• KF25 quick clamp is included to connect the spray head to the KF25 port
• Max. temperature  70 °C
• Made of Titanium alloy (Ti-6Al-4V)
• Spraying speed:  5 mL/min~ 40 mL/min (0.3L/hr -  2.4L / hr.)
• Fluid viscosity range: 1 - 50 mPa·s (cPs)

• A compressive air vortex shaper for spray nozzles is included, which will make spraying more uniform.
• Only suitable for MTI cylindrical-type spray nozzles.
• An air compressor or an inert gas tank with a regulator will be needed

•  25 µ

Heater  ( optional )

• One IR lamp heater with temperature controller for pyrolysis is optional up to 200oC +/- 5oC

•  CE certified
• NRTL certification is available upon request

         operation video

•  One year limited warranty with lifetime technical support
