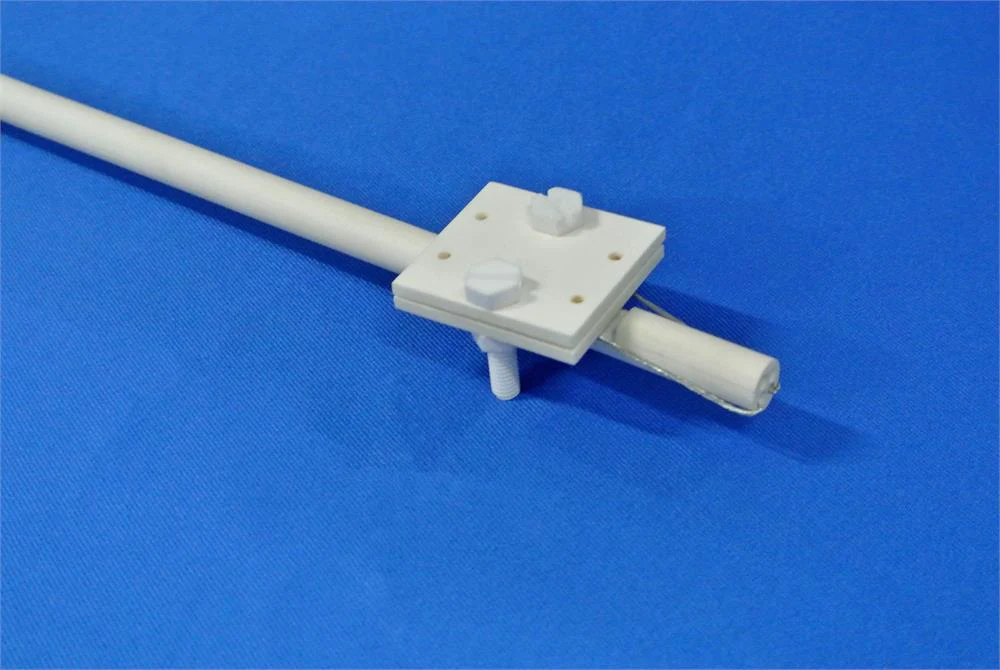

This is a set of high purity alumina fixture assembly for thermoelectric & ferroelectric ceramic materials testing under various temperature & pressure conditions. It is suitable for the use with MTI Tube furnaces such as

• General quartz/alumina tube furnaces: OTF-1200X, OTF-1500X, GSL-1600/1700/1800X series
• Specialised sliding tube furnaces: OTF-1200X-S-HPCVD, OTF-1200X-80SL-UL...
• High-pressure Ni-based superalloy/SS tube furnaces: OTF-1200X-HVHP series, OTF-1200X-80-HPV-III
•

Components in standard package	One four-bore tube support allows electrical wires to pass through and connect the testing sample. Top & bottom pressing plates ensure proper metal contacts between the sample and electrical wires. Ceramic tightening screw&nuts for holding the two plates together. Note: Electrical wires will not be included in the sale.
Purity	> 99.8%
Working Temperature	Optional: 1200°C  1500°C 1700 °C max.
Dimensions	Sample Placement Area: 27mm W x18mm L Max. Ceramic Pressing Plate: 40mm W x 36mm L x 3mm Thick Ceramic Supporting Rod: 10mm O.D x 500mm L; 4 bores, 3mm I.D Ceramic Screw length: around 25 mm.
Instruction Video
Related Article	Flexible ferroelectric organic crystals
Application Notes	You may need the JB Weld to seal the bore with wires. Ceramic is a very brittle material, it could only be applied with very little pressure on the plate
Warranty	Please note that this is a consumable item with no warranty coverage.
