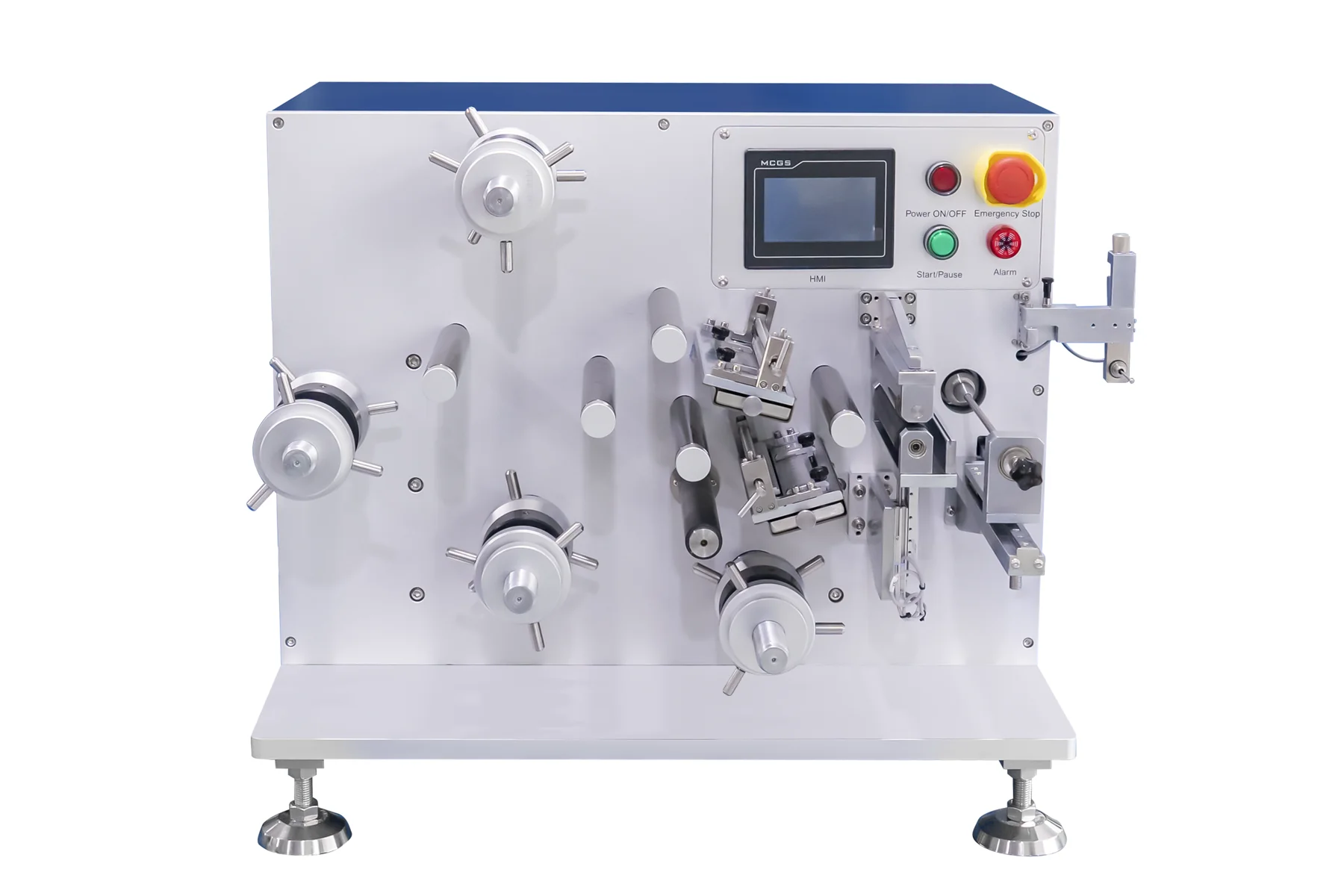

MSK-112R-H is used for the winding process of cylindrical cells. It adopts passive unwinding, manual cutting, manual pulling, guide slot positioning, automatic winding, manual glue application, and manual unloading. Suitable for laboratories to explore the process of products.


SPECIFICATIONS:

Features	Suitable for electrode winding for large cylindrical cells (up to 60150) with tabless structure. Passive unwinding, automatic estimation of roll length, manual electrode pulling, automatic winding, manual unloading, and manual gluing. Adjustable electrode guide slot positioning, guide groove position , and width. Adjustable winding speed and number of winding circles Winding tension is controlled by unwinding friction PLC control, touch screen setting. Small occupancy for laboratory use.
Power & Voltage	Single-phase AC110V-220V±10%, 50/60Hz Power: 200W
Process Introduction	Winding Core
Winding Needle	Φ6.0 mm as default (when L≤150mm, 30 mm≤D≤60mm) (Φ3.5 mm is available when L≤100mm, D≤30m)
Winding Cell Core	Diameter Max.Φ60mm, Length Max.150mm
Guide Slot	Width Max.160mm (adjustable)
Roll Size	Core Φ3 inch Max. Φ250mm
Winding Speed	Max. 300r/min (adjustable)
Compressed Air (separate purchase)	Compressed air of 0.5 MPa is needed for the operation of this machine Please note the air compressor is not included. Please click the picture below to order one at MTI, or order it from your local hardware store Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Electrode Material	Max. Width 145mm (include current collector tabs) Max. Roll Diameter 250mm
Separator Material	Max. Width 150mm Max. Roll Diameter 150mm Thickness ≥9µm
