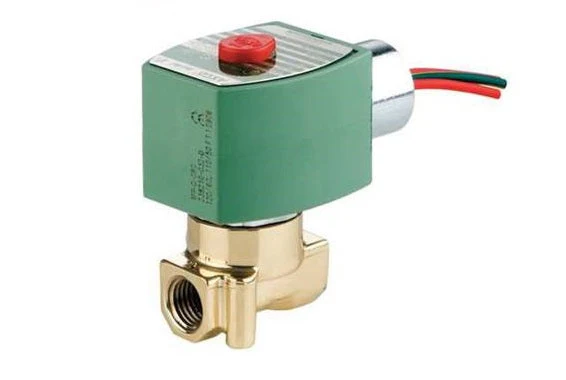

Cryogenic Solenoid Valve, 24VDC, 1/4" Female NPT, Min Temp. -195 , - CGSN-Valve-LD
EQ-CGSN-Valve is 2-way normally closed, direct-acting solenoid valves designed for cryogenic service. Valves may be provided with a general purpose or watertight/explosionproof solenoid enclosures.
Specification
Specification
| Name | Cryogenic Solenoid Valve |
| Valve Ways and Position | 2-Way/2-Position |
| Valve Configuration | Normally Closed: Valve is closed when solenoid is de-energized; open when energized. |
| Media (Valves) | Air, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Liquid Propane, Natural Gas, Oxygen, Steam, Vacuum, Water |
| Pipe Size (Valves) | 1/4" |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential |
|
| Environmental Rating (Valves) | Corrosive, Hazardous, Indoor, Outdoor |
| Valtage | 24 VDC |
| Coefficient of Volume | 0.73 |
| Body Material (Valves) | Brass |
| Coil Insulation Class | H |
| Seal Material (Valves) | PTFE |
| Orifice Dia. | 7/32" |
| Watts | 22.6 |
| Overall Dimension | 1-9/16" x 1-61/64" x 3-5/32" (LxWxH) |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2"Conduit w/8" Leads |
| Max. Fluid Temp. | 120 (49) |
| Min. Fluid Temp. | -320 (-195) |
| Seat Material | PTFE |
| Disc Material | PTFE |
| Standards | CSA Certified, Meets Applicable CE Directives |
$279.30
Original: $798.00
-65%Cryogenic Solenoid Valve, 24VDC, 1/4" Female NPT, Min Temp. -195 , - CGSN-Valve-LD—
$798.00
$279.30Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
EQ-CGSN-Valve is 2-way normally closed, direct-acting solenoid valves designed for cryogenic service. Valves may be provided with a general purpose or watertight/explosionproof solenoid enclosures.
Specification
Specification
| Name | Cryogenic Solenoid Valve |
| Valve Ways and Position | 2-Way/2-Position |
| Valve Configuration | Normally Closed: Valve is closed when solenoid is de-energized; open when energized. |
| Media (Valves) | Air, Ammonia, Cryogenic, Fuel Oil, Inert Gases, Light Oil, Liquid Propane, Natural Gas, Oxygen, Steam, Vacuum, Water |
| Pipe Size (Valves) | 1/4" |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential |
|
| Environmental Rating (Valves) | Corrosive, Hazardous, Indoor, Outdoor |
| Valtage | 24 VDC |
| Coefficient of Volume | 0.73 |
| Body Material (Valves) | Brass |
| Coil Insulation Class | H |
| Seal Material (Valves) | PTFE |
| Orifice Dia. | 7/32" |
| Watts | 22.6 |
| Overall Dimension | 1-9/16" x 1-61/64" x 3-5/32" (LxWxH) |
| NEMA Rating | 1, 2, 3, 3S, 4, 4X |
| Coil Enclosure | Watertight No Junction Box |
| Electrical Connections | 1/2"Conduit w/8" Leads |
| Max. Fluid Temp. | 120 (49) |
| Min. Fluid Temp. | -320 (-195) |
| Seat Material | PTFE |
| Disc Material | PTFE |
| Standards | CSA Certified, Meets Applicable CE Directives |
