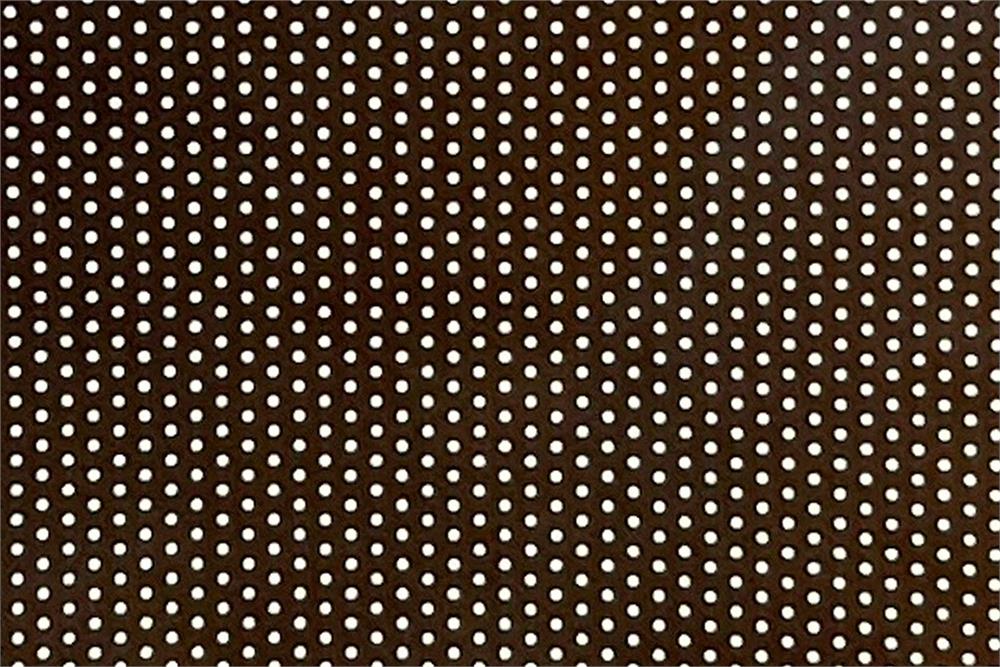

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net

Product image 1
1 / 3

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net

This Copper Mesh Foil (11um) is used as a substrate for coating anode materials in Li-Ion battery research.

Specifications

  • Material:
  • Cu+Ag≥99.8%, Zn≤0.06%, Ni≤0.01%, Cr≤0.02%
  • Sold in roll only
    Shipped in the vacuum bag
    • Length: 80 meters
    • Width of Foil Width: 290mm
    • Width of Porous Area: 260mm
    • Thickness: 11 um
    • Pore Size:0.25mm
    • Distance between Pore: 0.8mm
    • Net weight: 2 kg/roll
    • Please click to view SDS
Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC









$998.00
Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net—
$998.00

Product Information

Shipping & Returns

Description

This Copper Mesh Foil (11um) is used as a substrate for coating anode materials in Li-Ion battery research.

Specifications

  • Material:
  • Cu+Ag≥99.8%, Zn≤0.06%, Ni≤0.01%, Cr≤0.02%
  • Sold in roll only
    Shipped in the vacuum bag
    • Length: 80 meters
    • Width of Foil Width: 290mm
    • Width of Porous Area: 260mm
    • Thickness: 11 um
    • Pore Size:0.25mm
    • Distance between Pore: 0.8mm
    • Net weight: 2 kg/roll
    • Please click to view SDS
Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC
