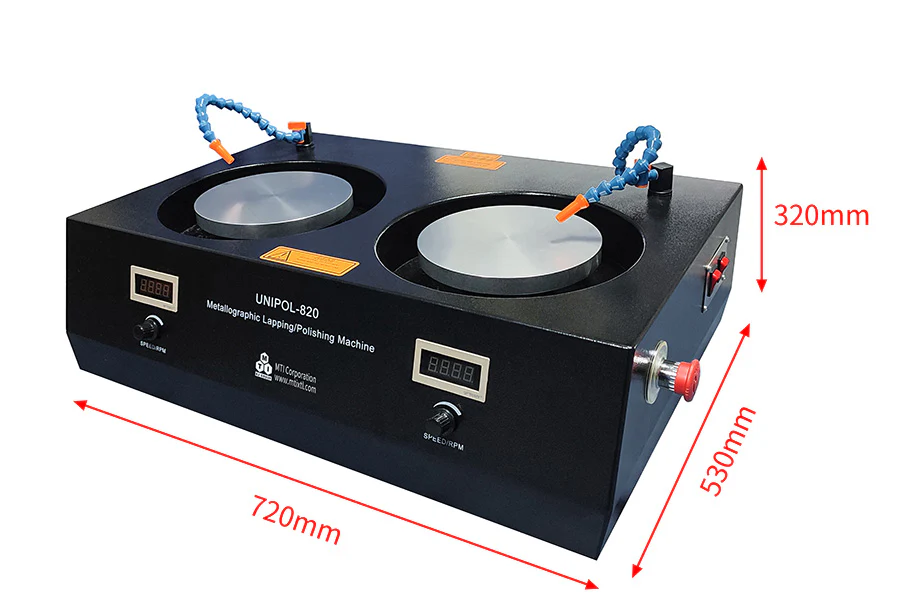

EQ-UNIPOL-820 is a heavy-duty grinding/polishing machine with two 8" lapping plates and independent speed control. Upgraded magnetic plates were installed in the machine, which makes installing sandpaper/polishing pad quickly and easily. UNIPOL-820 is perfect for use in a metallographic lab to prepare small samples faster and easier.

Structure	Heavy Duty Cast with Bright Painting (Color: Black) Belt driven platen with stable and quiet operation. Soft rubber splash guard ring for safe operation.
Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Motor	Two 300W high torque DC motor with belt pulley with independent speed control.
Variable speed	0 - 600 RPM with digital display for each plate.
Polishing plate	3 pins plug-type; Fast installation and take off
Product dimension	720 L x 450 W X 280 H (mm)
Net weight	44 Kg
Shipping dimension	42" x 48" x 25" (inch)
Shipping weight	160 lbs
Warranty & Compliance	CE Certified NRTL certification is available upon request at the extra cost.
Application Notes	Please click here to learn how to use a magnetic plate and attach the polishing pad to the plate Warning: Please always clean the machine after each use. and don't overflow water into the inside machine Please click the link below to order diamond polishing paste or sandpaper
Operation Instruction
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty

STANDARD PACKAGE

P/N	Description	Qty	Pic
UP820-01	Aluminum alloy master plate 8" dia lapping plate	2 set	Click to enlarge
UP820-02	8" dia.x 0.8 mm thick permanent magnetic sheet with PSA backing (installed in Aluminum plate)	2 set
UP820-04	8" dia x 0.7mm thick steel buffer sheet (Zinc coated) for carrying sandpaper and polishing pad, (which can be attached to the magnetic plate at the stable and take off at easy)	4 set
UP820-05	8" Sic sandpapers (2 of each at the mesh of 240#, 400#, 800#,1500#)	2 set
UP820-06	8" PSA black polishing pads for final polishing.	2 set
UP820-07	10g 0.25 micron diamond paste for faster polishing.	1 set
