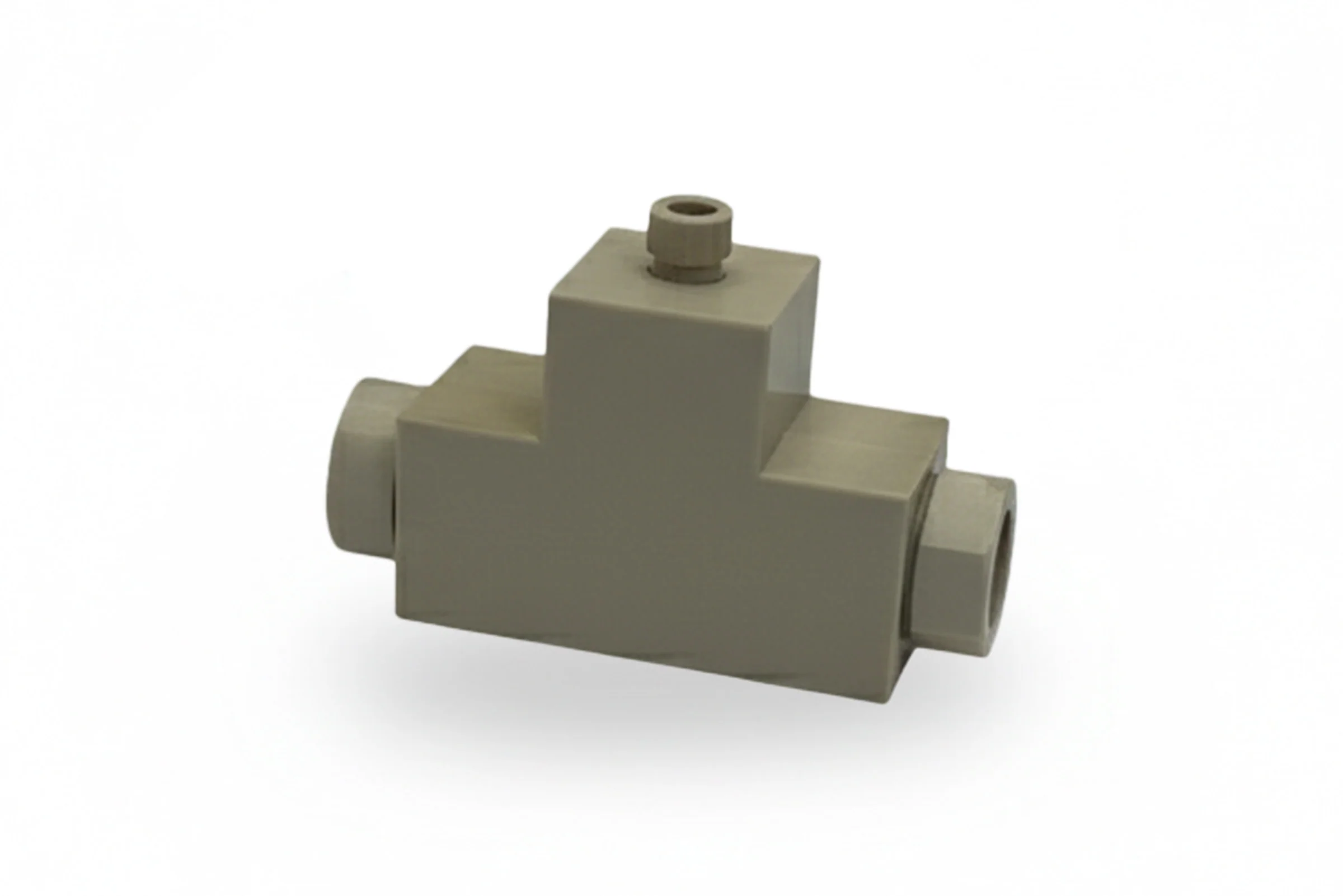

Peek Swagelok Cell (Max. 14 mm Dia) w/ Three or Two-Electrode for Battery or Fundamental Electrochemical Testing - SLC-P

Product image 1
1 / 6

Peek Swagelok Cell (Max. 14 mm Dia) w/ Three or Two-Electrode for Battery or Fundamental Electrochemical Testing - SLC-P

SLC-P is a Swagelok cell designed for high-throughput R&D battery material testing with quick assembling and disassembling. It can be used for both liquid and solid-state batteries



SPECIFICATIONS

Three-Electrode Configuration
  •  The working electrode, separator (or not), counter electrode, and reference electrode were assembled into the Swagelok cell by tightening the screw knob.
  • The cell body is made of PEEK.
  • The maximum acceptable electrode size is 16mm. The glass carbon with Φ3 size (active area) is used to connect with the anode and cathode.
  • Two Glassy Carbon Electrodes and a reference electrode are included in the package.
  • The Ag/AgCl reference electrode is included for fundamental electrochemistry study. If customer is using it for battery research, then a reference electrode (O.D. 6 mm) with glassy carbon core to support the Li/Na metal should be additionally purchased. (This change is made from Feb. 20, 2025).
  • The electrolyte is injected into the cell through the reference electrode port.

Two-Electrode Configuration
  • Anode, separator, and cathode were assembled into the Swagelok cell by tightening the screw knob.
  • The cell body is made of PEEK.
  • The maximum acceptable electrode size is 16mm.
  • The electrolyte is injected into cell through the top side.





Select Electrode Configuration
From $664.30

Original: $1,898.00

-65%
Peek Swagelok Cell (Max. 14 mm Dia) w/ Three or Two-Electrode for Battery or Fundamental Electrochemical Testing - SLC-P—

$1,898.00

$664.30

Product Information

Shipping & Returns

Description

SLC-P is a Swagelok cell designed for high-throughput R&D battery material testing with quick assembling and disassembling. It can be used for both liquid and solid-state batteries



SPECIFICATIONS

Three-Electrode Configuration
  •  The working electrode, separator (or not), counter electrode, and reference electrode were assembled into the Swagelok cell by tightening the screw knob.
  • The cell body is made of PEEK.
  • The maximum acceptable electrode size is 16mm. The glass carbon with Φ3 size (active area) is used to connect with the anode and cathode.
  • Two Glassy Carbon Electrodes and a reference electrode are included in the package.
  • The Ag/AgCl reference electrode is included for fundamental electrochemistry study. If customer is using it for battery research, then a reference electrode (O.D. 6 mm) with glassy carbon core to support the Li/Na metal should be additionally purchased. (This change is made from Feb. 20, 2025).
  • The electrolyte is injected into the cell through the reference electrode port.

Two-Electrode Configuration
  • Anode, separator, and cathode were assembled into the Swagelok cell by tightening the screw knob.
  • The cell body is made of PEEK.
  • The maximum acceptable electrode size is 16mm.
  • The electrolyte is injected into cell through the top side.
