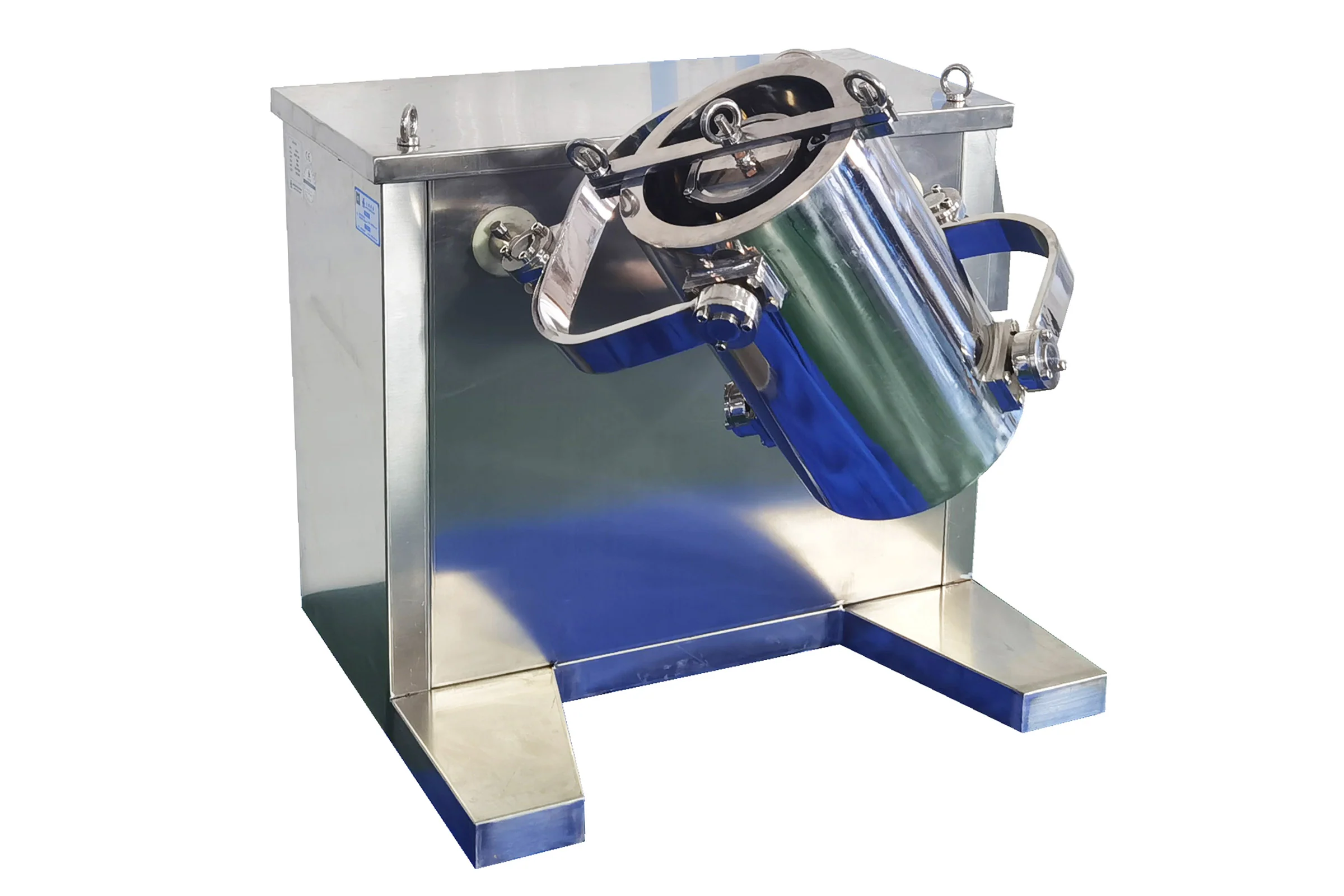

SYH-5 is a three-dimensional movement mixer & ball mill designed for processing dry powder. The sample inside the tank moves in three dimensions, so there is no centrifugal force, no gravity segregation, and no accumulation. It is suitable for mixing materials that have large specific gravity differences. The mixing tank is made of SS304, and the standard product in stock is 15L, but 1.0 L and 5 L mixers are optional.
( Upgraded to variable speed by frequency change since Jan. 20, 2021 )

SPECIFICATIONS

Input Voltage & Power		AC220V±10%, 50Hz
Mixing Tanks		Tanks are made of SS304, which is airtight via a Silicone o-ring Standard tank size 5 L, which can accept 0.5L, 1L, and 2L which is available upon request Mixing tank is  optional from1L, 2L, 3L, 5L, 10L, and 15L. please choose from product option bar Spare mixing tank is available upon request Now  15L mixing machine can accept all size of mixing tanks
Speed		Tank rotation speed: Adjustable from 0 to 20 RPM by frequency change with the constant output of power
Timer		0- 99 Hrs by a digital timer
Optional Milling Ball		Please click the picture below to choose milling balls
Certification		CE Certified NRTL / CSA certification is available upon request For the NRTL version, we will add a protection cover and touch-screen panel at extra cost.
