Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB

Product image 1

Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB

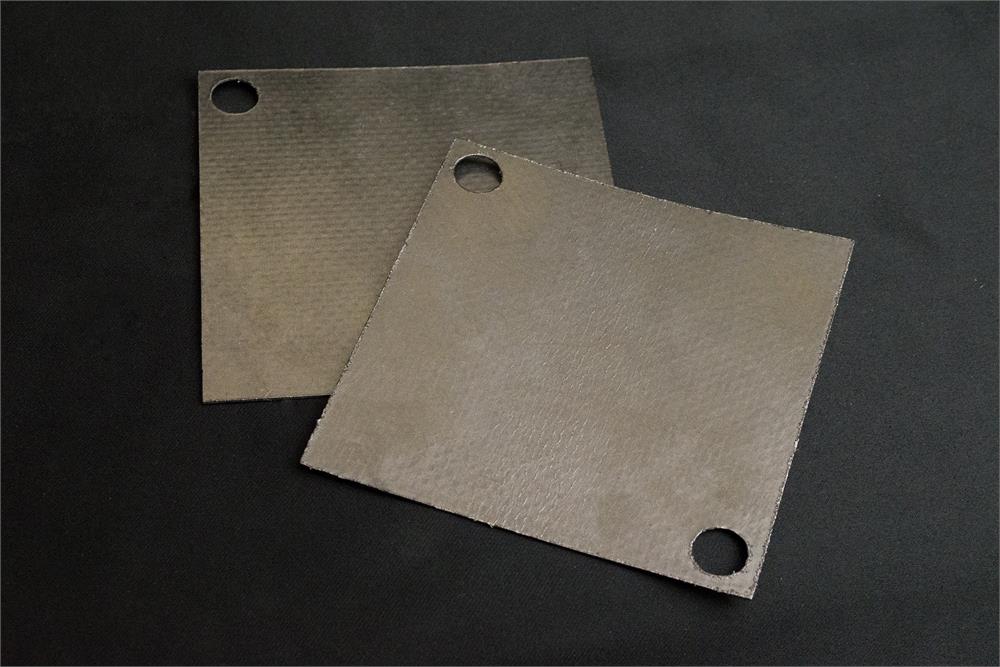

Replacement bipolar plates (2pcs per pack)  for the EQ-VRB-C splitable single unit flow cell.

Used for collecting current produced from the flow cell to enable conduction at the current plates. These polymer composite plates are flexible and tough -- useful for withstanding the fluid pressure of Vanadium electrolyte that a flow cell will be subjected to internally. The thinness (~0.7mm) of the plates also help minimize the volume and weight of each cell when assembled and stacked together.


Corresponding Parts highlighted in red, please click for enlarged view.

SPECIFICATIONS
Features
  • High electrical conductivity, chemical resistance, and high mechanical strength for toughness required when cells are clamped and stacked.
  • These highly flexible plates (polymer composite based) have similar performance compared to conventional graphite plates BUT offer excellent resistance to breakage and have less defects.
  • Only ~0.7mm in thickness, this helps minimize the volume and weight of cells when stacked (compared to graphite plates which are porous and brittle in nature; hence needs to be thick structurally).
Size
  • Two sizes are available (Please choose the correct plate size from product options above)
  • 100mm x 100mm -- for flow cells that use 7x7 cm, 5x5 cm, and 3x3 cm reactive areas (please click right picture to verify)

  • 60mm x 60mm -- for flow cells that use ONLY 3x3 cm reactive area (please click right picture to verify)

Application Note
  • Replacement of plates is recommended for every 5 tests or 50 hours of test time ( with immediate replacement if physical damage is present).







Select Plate Size
From $22.75

Original: $65.00

-65%
Polymer Composite Replacement Bipolar Plates for Redox Flow Cell, Pack of 2pcs - EQ-VRB—

$65.00

$22.75
