Vacuum Sealing Assembly for 80 mm dia Tube Furnace with Valve / Vacuum Meter - FL80

Product image 1
1 / 4

Vacuum Sealing Assembly for 80 mm dia Tube Furnace with Valve / Vacuum Meter - FL80

This is a pair of smart sealing assembly for the tube vacuum furnace to tighten both ends of OD 80 mm tube without any welding and gluing.

    • Made of Stainless Steel with double high-temperature silicon O-rings on each flange.
    • On one end the flange has a vacuum meter with a valve attached, and on the other end has the only valve.
    • Seal tube by tightening screws on the flange without any welding and glue.
    • 1/4" hose connector in the both of ends.
    • 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose.
    • Designed for MTI OTF-1200X-80 tube furnace.
    • Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
    • The assembly kit will seal 80 - 82 mm diameter (3-1/8 ~~ 3-1/4" Dia) of the quartz tube.

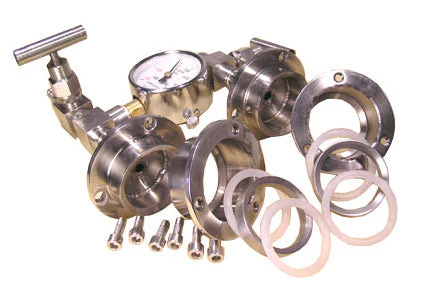

Package included  One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings  ( 300oC Max., and six screws
Vacuum Level
  • 10E-2 torr by a mechanical pump
  • 10E-5 torr by a small turbopump and
  • 10-6 torr by hi-speed turbopump

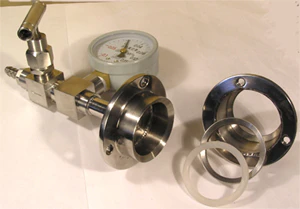

How to seal a quartz tube using the assembly, please follow the photos below:

 Warning
  • Must put a refractory tube block in front of the flange (see picture below) to avoid heat radiation melt silicone O-ring. You order a ceramic block in related products.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Optionals
  • Please click here to order digital vacuum gauge for precision vacuum control up to 10-4 torr
  • For CVD application, please choose anti-corrosive vacuum gauge ( click picture below left 2 )
  • You can choose the various end of fitting as options ( click here to order separately )
  • You may click here to order a flowmeter to control gas flowing
  • You may order flange support to avoid tube turning ( picture below right)






Select Left, Right, or Both
From $360.95
Vacuum Sealing Assembly for 80 mm dia Tube Furnace with Valve / Vacuum Meter - FL80—
$360.95

Product Information

Shipping & Returns

Description

This is a pair of smart sealing assembly for the tube vacuum furnace to tighten both ends of OD 80 mm tube without any welding and gluing.

    • Made of Stainless Steel with double high-temperature silicon O-rings on each flange.
    • On one end the flange has a vacuum meter with a valve attached, and on the other end has the only valve.
    • Seal tube by tightening screws on the flange without any welding and glue.
    • 1/4" hose connector in the both of ends.
    • 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose.
    • Designed for MTI OTF-1200X-80 tube furnace.
    • Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
    • The assembly kit will seal 80 - 82 mm diameter (3-1/8 ~~ 3-1/4" Dia) of the quartz tube.
Package included  One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings  ( 300oC Max., and six screws
Vacuum Level
  • 10E-2 torr by a mechanical pump
  • 10E-5 torr by a small turbopump and
  • 10-6 torr by hi-speed turbopump
How to seal a quartz tube using the assembly, please follow the photos below:

 Warning
  • Must put a refractory tube block in front of the flange (see picture below) to avoid heat radiation melt silicone O-ring. You order a ceramic block in related products.
  • Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
  • For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gasses with our flange assemblies. Please contact us with any concerns.
Optionals
  • Please click here to order digital vacuum gauge for precision vacuum control up to 10-4 torr
  • For CVD application, please choose anti-corrosive vacuum gauge ( click picture below left 2 )
  • You can choose the various end of fitting as options ( click here to order separately )
  • You may click here to order a flowmeter to control gas flowing
  • You may order flange support to avoid tube turning ( picture below right)
