• Solid Tube furnace with 60mm OD  Tube
• High-purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
• 40mm dia. x 40mm heating zone
• Precision temperature controller ±0.1 ºC accuracy
• One standard KF25 port, one φ6.35mm gas inlet, one quartz observation window, and one relief valve

• S Type

• 220V AC, 60Hz
• 6 kW Max

• Continuous: 1400
• Max. 1500°C for < 1 hours

• Weighing function OFF:  ≤10/min
• Weighing function ON: 0-200≤3/min, 200-1500≤5/min

• Eurotherm temperature controller made in the UK
• 10 Segments of programmable temperature control via a dedicated computer and software
• Data can be logged and exported
• +/- 0.1 ºC temperature accuracy

• A precision electronic balance ( made in Germany)  is located in the bottom of the heating chamber
• Accuracy:  0.001 g resolution
• Sample amount: 1 g minimum;  10 g maximum
• Max. weighting: 120 g if not for TGA

• Two 10 ml alumina ID Φ19* 38mm deep crucibles are included

• The TGA  can reach vacuum up to 10-2 torr by a mechanical pump ( Pic.1) and 10-5 by a turbo pumpPic. 2)
• Please click the picture below to order the pump and gas delivery system (Pic 3separately:
•

 Warranty

• One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

 Compliance

• CE Certified
• NRTL or CSA certification is available upon request at extra cost.

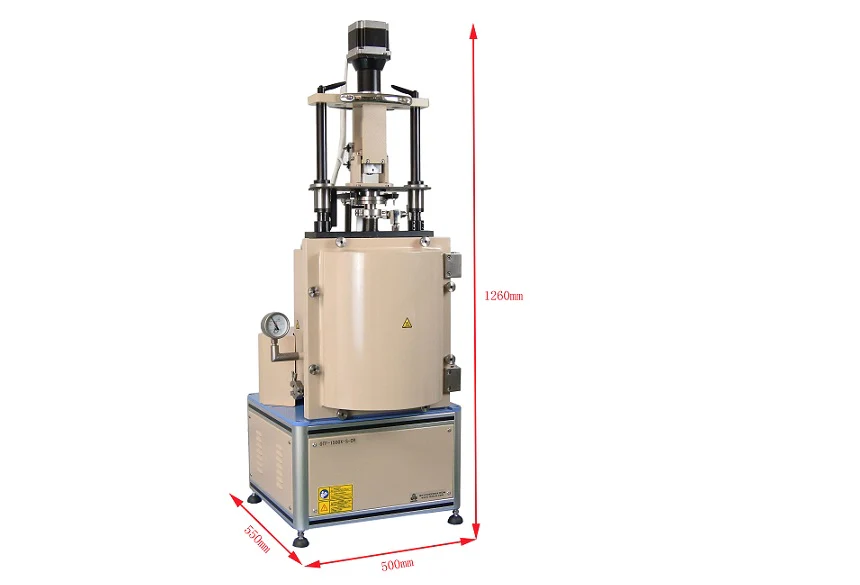

Dimension

Reference Video
