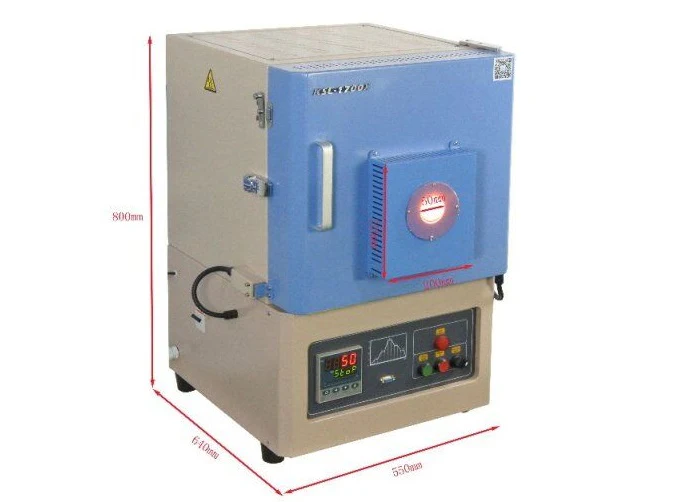

1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W

Product image 1
1 / 5

1700C Bench-Top Muffle Furnace (6"x6"x6", 3.6L) with Observation Window - KSL-1700X-W

KSL-1700X-W isbench-top 1700°C muffle furnace with 50 mm diameter quartz window, which is designed for observation sample during heating with IR camera or optical device. The furnace consists of high-quality alumina fiber insulation and SiC heating elements. It controlled by high precision SCR (Silicon Controlled Rectifier) and temperature controller with +/-1 °C accuracy and 30 programmable segments up to 1700 °C.

SPECIFICATIONS

Furnace Structure

  • Double layer steel structure with air cooling fan to keep the case's temperature below 60°C
  • High purity alumina fiber insulation for max. Energy saving
  • High-quality MoSi2 heating elements
  • 50 mm optical grade quartz window (8 mm thick)
Inside Chamber Size 150 x 150 x 149mm (6" x 6" x 6"), 3.6L
Standard Working Temperature 1600° C (continuous)
Maximum Working Temperature 1700° C (< 1 hours)
Heating Rate 0 ~20 °C/min ( ≤10°C/min recommended )
Temperature Accuracy +/- 1° C
Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
Laptop, software & WiFi Control(Optional)
  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01)enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
  • Above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.
  • Note: The software is only compatible with MTI’s Yudian Temperature Controller

Thermaocouple B-type
Heating Element MoSi2, 4 pcs
Power
  • AC 208V-240V single phase, 50/60 Hz (60A air breaker required)
  • Note: Plug is not included. 30A plug is recommended (NEMA L6-30P).
  • 6 KW intotal
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request.
Application Notes Please clicks here to learn how to DIY gas purging system.
Attention Notes
  • The temperature near by wider area is hot, must wear gloves during operation
  • Must wear heavy-duty sun glass to watch the window



$12,989.00
