CR123 Cylinder Cell Case with Anti-Explosive Cap & Insulation O-ring and Al Tab- 100 Pcs/pck - EQ-Lib-CR123

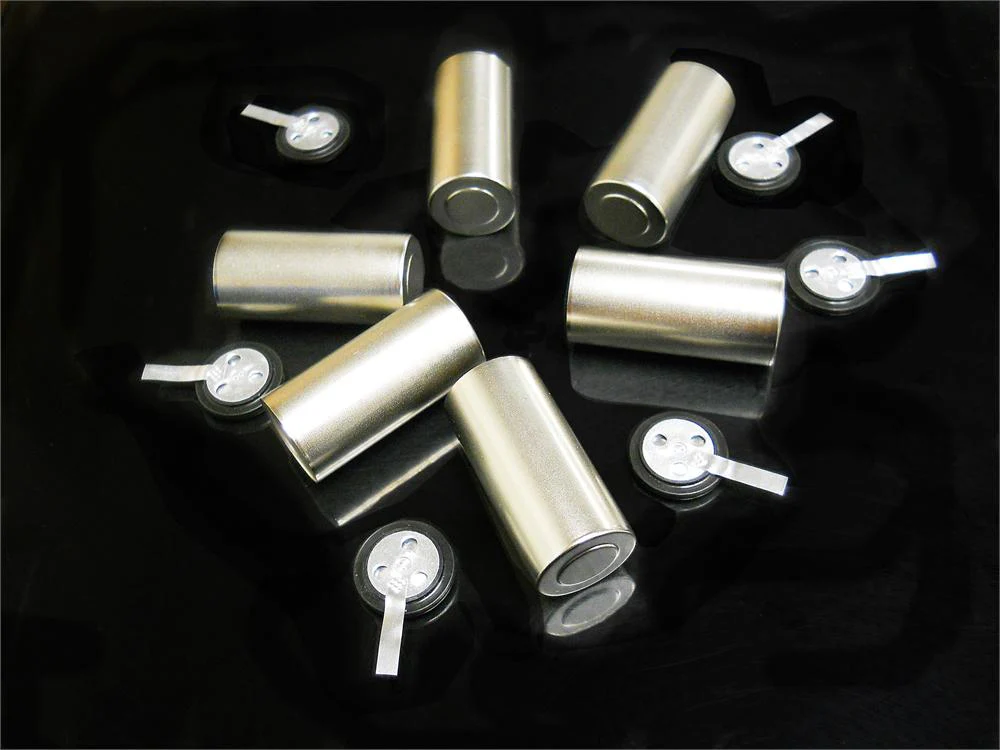

Product image 1

CR123 Cylinder Cell Case with Anti-Explosive Cap & Insulation O-ring and Al Tab- 100 Pcs/pck - EQ-Lib-CR123

CR123 is an intermediate case size between coin cell like CR2032 and cylinder cell like 18650 so that it is a good option for the researchers who are working in this capacity range.

Specifications

Dimensions (Dia x Height)
  • Case: 16.3mm(OD) x 15.6mm(ID) x 34.1mm(H)
  • Top Cap: 15.6mm(D) x 3.7mm(H)
  • Cap Tab Length: 15mm
Materials
  • Case and cap made of Nickel plated A3 steel
  • Seal O-ring and spacer are made of nylon
Weight
  • 5.40 g/pcs
Note
  • Cap Open Pressure: 2.8Mpa (the cap will open to release high pressure inside if over 2.8Mpa to ensure no explosion from the can)




Application
  • To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510 with CR123 die

    MSK-510 Crimper

    Grooved by MSK-500

    Sealed by MSK-510
