The microwave susceptor is a cost-effective DIY module for microwave-assisted heating. It is paired with Economic Rapid Heating Microwave Heater: KSL-MW-XX Series

Features

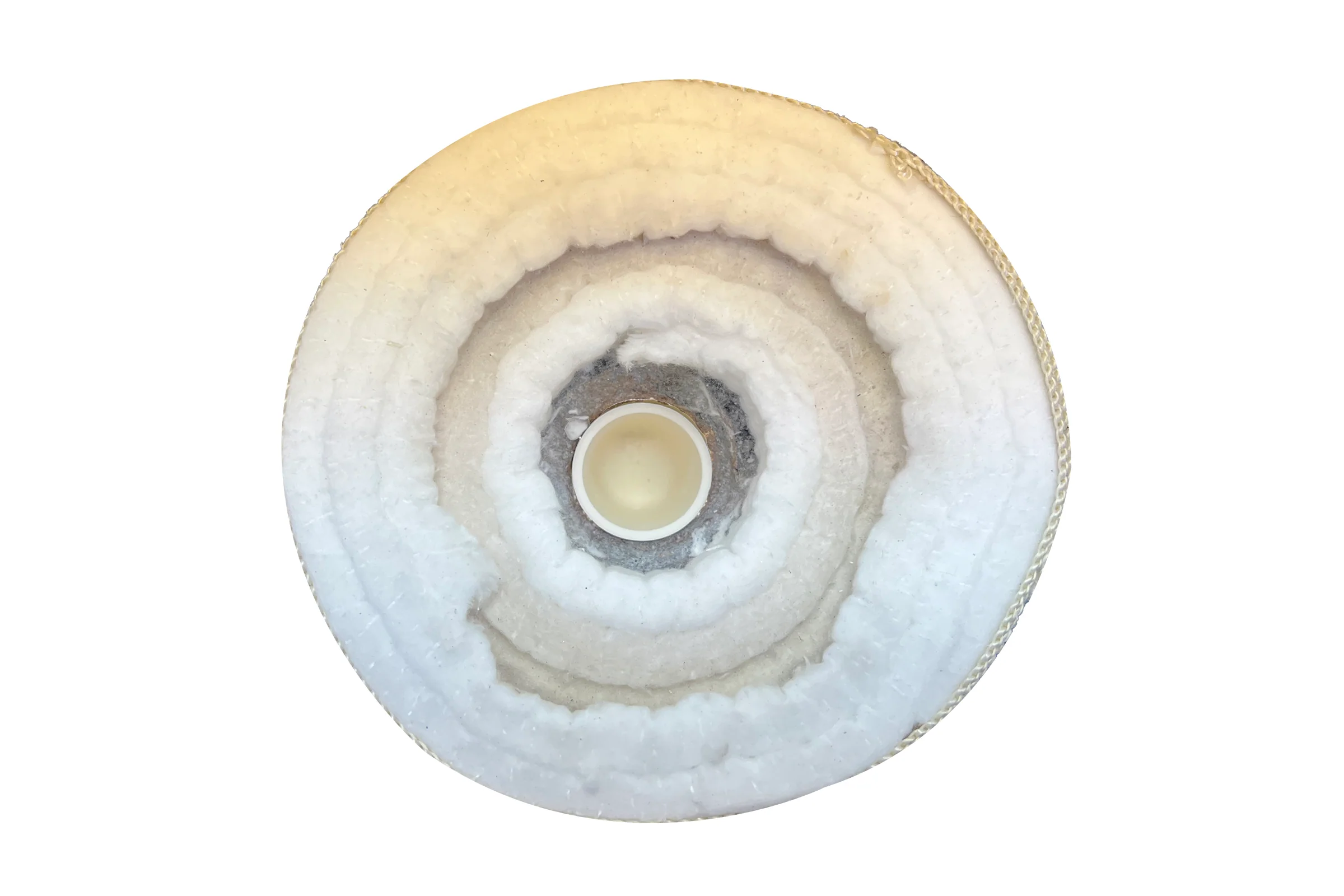

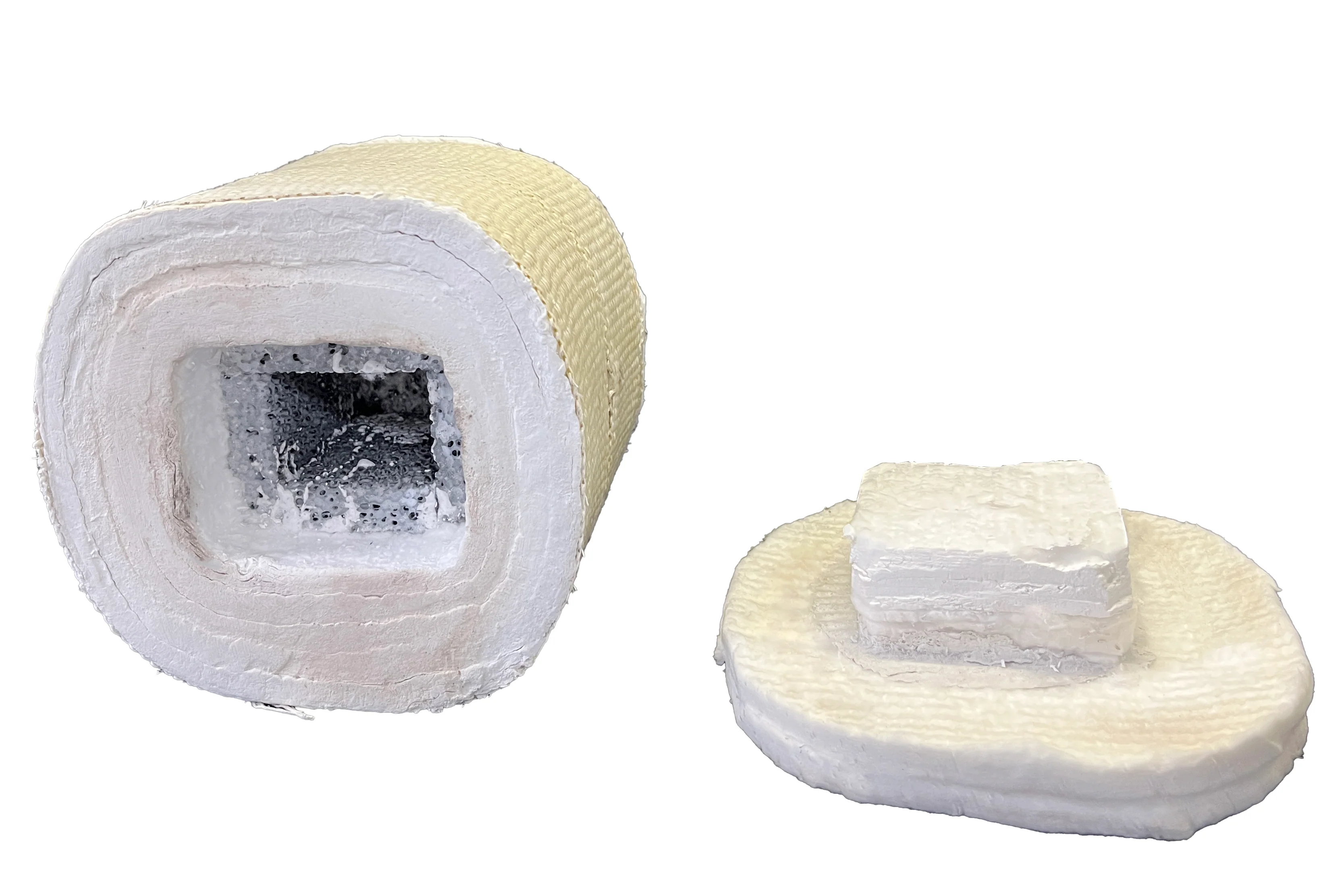

• Three-layer structure
  • Outer layer:  refractory tape as a surface finish
  • Interlayer:    fibrous mullite blanket for thermal insulation.
  • Inner layer:  SiC  coating or foam brick as microwave susceptor
• Working temperature < 1400°C


Specialization

SKU	MWHT75D	MWHT40D	MWHT10060	MWHT6045	MWHT35D
Product Dimension Unit: mm	Ø170 × 180	Ø220 × 180	L × W × H 240×190×150	L × W × H 190 × 190 × 165	Ø155 × 155
Effective Heating Area Unit: mm	Ø40 × 40	Ø40 × 40	L × W × H 100 × 60 × 82	L × W × H 60 × 45 × 80	Ø35 × 35
Max. Working Temperature	1100 ºC	1400 ºC	1200 ºC	1400 ºC	1400 ºC
Max. Input Power	1000W	2100W	2100W	1000W	2100W
Compatible Microwave	KSL-1100-MW	KSL-1400-MW	KSL-1400-MW	KSL-1400-MW	KSL-1100-MW and KSL-1400-MW



Application Note:

• Crucible is not included, please order a compatible crucible separately.
• It is important to keep the product in a dry environment. Before use, please bake out the product in an oven at 150°C for 2-3 hours to remove residual moisture.

Inspect your delivery:

• Please check the package for any damages before accepting delivery. If damages are detected, retain all packing material, document the conditions with photos, and report the issue immediately to the carrier and MTI.

No Warranty:

Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defects before use.
