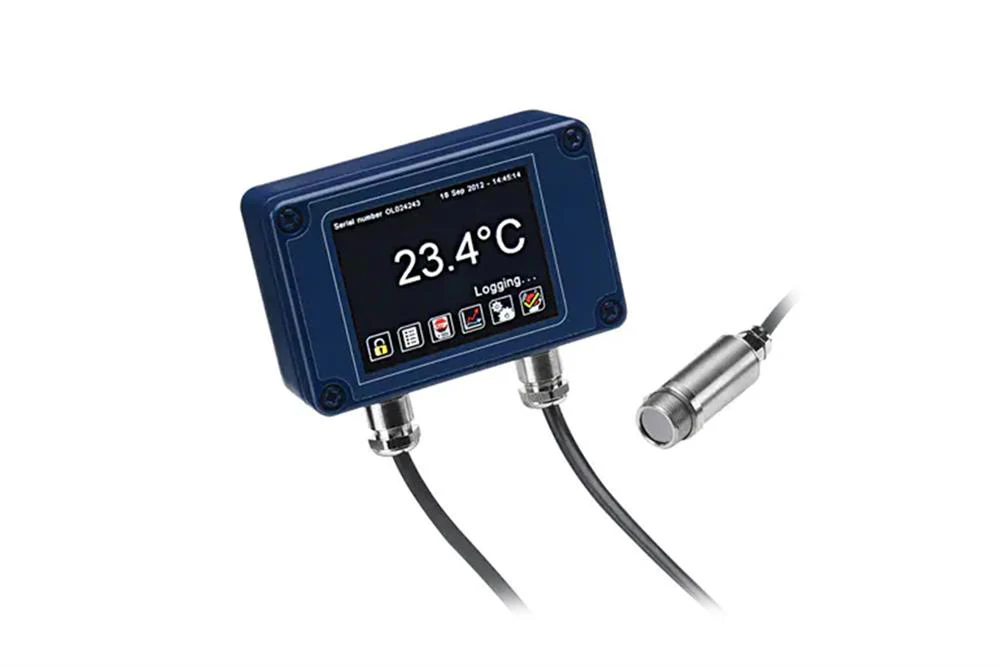

Miniature Fixed Infrared Temperature Sensor - EQ-IRTS-LD

Product image 1

Miniature Fixed Infrared Temperature Sensor - EQ-IRTS-LD

The EQ-IRTS-LD is an infrared sensor designed to work for many applications and provide fast non-contact temperature readings. The miniature sensing head is ideal for space-limiting areas, is manufactured using 316 SS, and has an IP65 rating. This robust, easy-to-use sensor is used in many industries including pharmaceutical, food, manufacturing, plastics, pater, and much more.

Features:
  • The temperature sensing head is completely sealed and IP 65 Rated.
  • Resistance to error from moving, ideal for robot arms and similar equipment.
  • OS-MINIUSB comes with FREE software (Software Tab)
  • Open modbus protocol over serial (OS-MINIBUS)
  • Optional touch screen for temperature indication and configuration
  • Adjustable emissivity to accommodate various applications
SPECIFICATIONS:
Input Voltage

  • 24 Vdc
Process Temperature Range

  • 450 - 2000 °C (842 - 3632°F)
Accuracy at Ambient

  • +/- 1% rdg or 2°C(3.5°F)
Operating Temperature Range

  • 0 - 70°C (32 - 158°F)
Field of View

  • Close-Focus
Output
  • 4 to 20mA, 2 alarm relays output
Spectral Response
  • 2 to 2.6 microns
Response Time
  • 240 ms
Housing Material
  • 316 Stainless Steel
Maximum Ambient Humidity
  • Maximum 95% non-condensing
Repeatability
  • +/- 0.5°C or 0.5%, whichever is greater
Sensor Length
  • 18mm
Thread Size
  • M16 × 1 mm
$262.15

Original: $749.00

-65%
Miniature Fixed Infrared Temperature Sensor - EQ-IRTS-LD—

$749.00

$262.15
