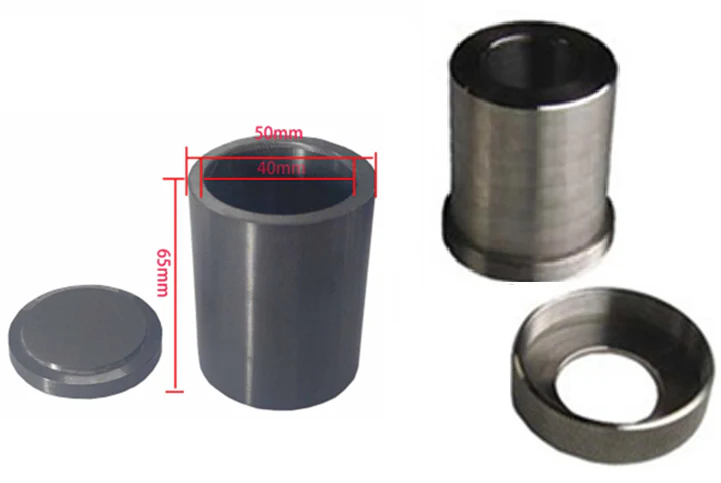

Si3N4 Jar w/ SS Jacket for SFM-3 & SFM-3-II Milling Machines (80ml) - MJ3SN-80

Product image 1
1 / 4

Si3N4 Jar w/ SS Jacket for SFM-3 & SFM-3-II Milling Machines (80ml) - MJ3SN-80

Si3N4 Jar can be fitted into the MSK-SFM-3, MSK-SFM-3-F, and MSK-SFM-3-II for milling materials to avoid iron or other inorganic contamination. It has better abrasion resistance than Zirconia, and it is air-tight for air-sensitive materials.

SPECIFICATIONS

Material
  • Si3N4 (Purity: >99.99%), Silicon Nitride
  • Hardness: > 8.5 Mohs
  • Density: ~3.7 g/cm3
Capacity
  • 84ml (actual cubage)

Package
  • 1 pc of Si3N4 jar with SS Jacket (two O-rings are included to seal the jar air-tightly.)
  • One group of Si3N4 balls is included ( 4 pcs of 10mm, 8 pcs of 8mm, 9 pcs of 5mm ). Pls click the picture left to order more



Ball Miler Compatibility

Si3N4 Jar be used on the

  • MSK-SFM-3
  • MSK-SFM-3-F
  • MSK-SFM-3-II
  • MSK-SFM-1S
  • MSK-SFM-GB
Weight
  • 1.6 lbs
Dimension

Application Notes
  • Si3N4 jar has better abrasion resistance than Zirconia. Please see the picture below for a comparison with the Zirconia jar when milling in an empty jar. Zirconia jar and ball have a certain chipping out
  • To avoid the contamination from jar and ball, please fill the powder into the jar with 1/3 volume before milling. You may mill the sample at low speed first, and let the sample material coats to surface of the jar and ball, then go high speed
  • For air-sensitive material, you may fill the sample and balls with an inert gas glovebox, then ball milling outside



$453.25

Original: $1,295.00

-65%
Si3N4 Jar w/ SS Jacket for SFM-3 & SFM-3-II Milling Machines (80ml) - MJ3SN-80—

$1,295.00

$453.25

Product Information

Shipping & Returns

Description

Si3N4 Jar can be fitted into the MSK-SFM-3, MSK-SFM-3-F, and MSK-SFM-3-II for milling materials to avoid iron or other inorganic contamination. It has better abrasion resistance than Zirconia, and it is air-tight for air-sensitive materials.

SPECIFICATIONS

Material
  • Si3N4 (Purity: >99.99%), Silicon Nitride
  • Hardness: > 8.5 Mohs
  • Density: ~3.7 g/cm3
Capacity
  • 84ml (actual cubage)

Package
  • 1 pc of Si3N4 jar with SS Jacket (two O-rings are included to seal the jar air-tightly.)
  • One group of Si3N4 balls is included ( 4 pcs of 10mm, 8 pcs of 8mm, 9 pcs of 5mm ). Pls click the picture left to order more



Ball Miler Compatibility

Si3N4 Jar be used on the

  • MSK-SFM-3
  • MSK-SFM-3-F
  • MSK-SFM-3-II
  • MSK-SFM-1S
  • MSK-SFM-GB
Weight
  • 1.6 lbs
Dimension

Application Notes
  • Si3N4 jar has better abrasion resistance than Zirconia. Please see the picture below for a comparison with the Zirconia jar when milling in an empty jar. Zirconia jar and ball have a certain chipping out
  • To avoid the contamination from jar and ball, please fill the powder into the jar with 1/3 volume before milling. You may mill the sample at low speed first, and let the sample material coats to surface of the jar and ball, then go high speed
  • For air-sensitive material, you may fill the sample and balls with an inert gas glovebox, then ball milling outside
