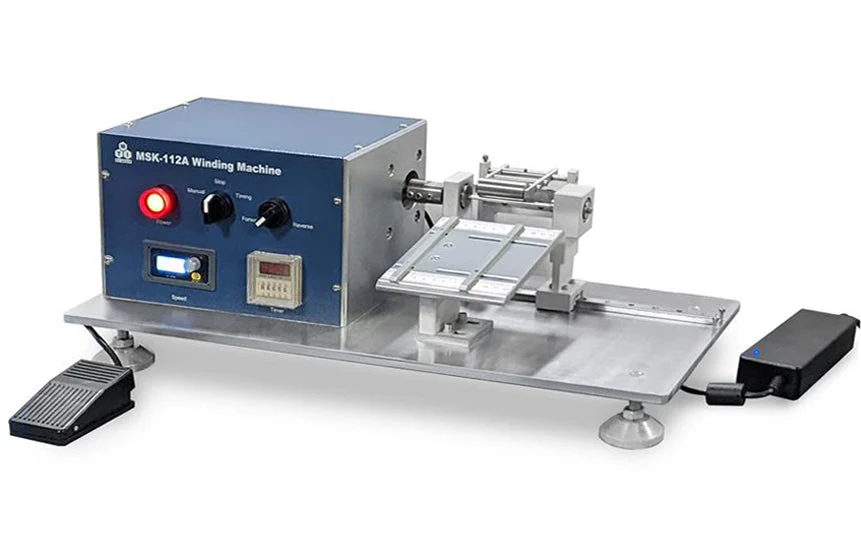

MSK-112A-C is a manual winder for winding electrodes with separators together in the research of Li-ion cylinder batteries.

SPECIFICATIONS:

Winding Speed	0 - 250 RPM Adjustable
Winding Needle	Dimensions of Winding Needle for Cylindrical Cell: Φ 4mm * 125mm (18650 as default). Other sizes, such as 21700, 26650, 32650 cylinder battery jelly roll, are available upon request.  Dimension of Winding Plate for Pouch Cell: 110mm L * 43mm W * 1.6mm H (Customized sizes are available upon request) Maximum Cylindrical Cell Size: Φ 80*110mm Maximum Prismatic or Pouch Cell Size: 110mm L * 80mm W Material: 45# steel with Cr plated (all shinning parts) for anti-crossing
Voltage	Power input for the winding machine: 24VDC 100 - 240VAC (50/60Hz) to 24VDC NRTL certified power adapter is included for worldwide use
Power	25 Watts
Winding Mode	Switchable between clockwise and counterclockwise
Compliance	CE Certified NRTL or CSA certification is available at the extra cost
Application Notes	If you need 1 machine with 1 blade for the cylinder cell, please choose option 1 from the personalization  If you need 1 machine with 1 blade for cylinder cell and 1 blade for pouch cell, please choose option 2 from Personalization above Winding procedure for cylinder cell (Please click on the pictures to enlarge):

STANDARD PACKAGE:

No.	Description	Qty
1	Winding machine (main machine) with two control pedals and power cord	1
2	Winding shaft	1
