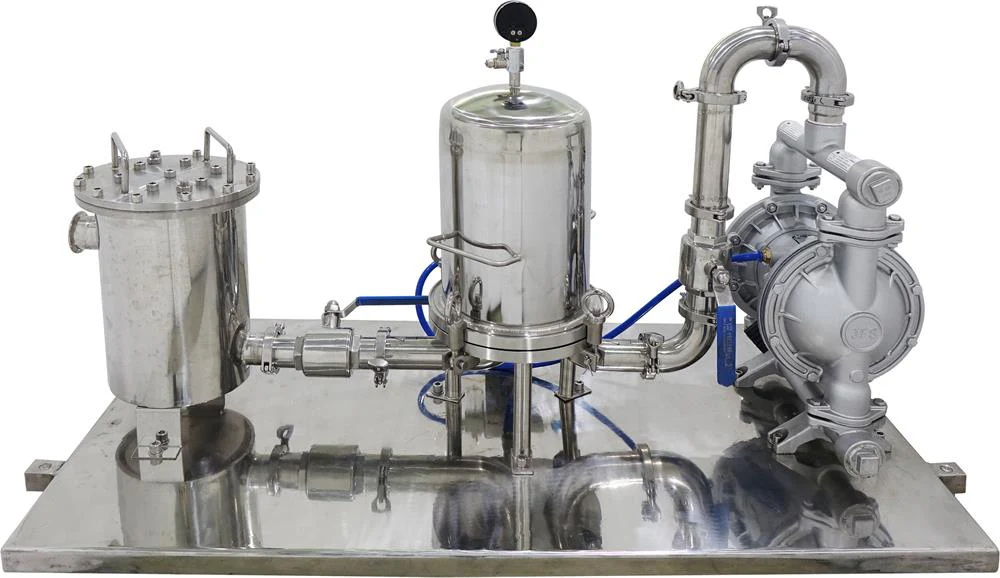

MSK-FT03 is a magnetic de-ironing filtration system. It is designed for optimizing the condition of slurry for Li-ion battery before the coating process. The slurry will pass through a set of strong permanent magnetic rods and then a mesh filter to remove large particles and iron impurity. Such a system is not only able to filter out the large particles but also remove iron to improve the quality and stability of the electrode slurry.

Air Source	0.5 - 0.8MPa

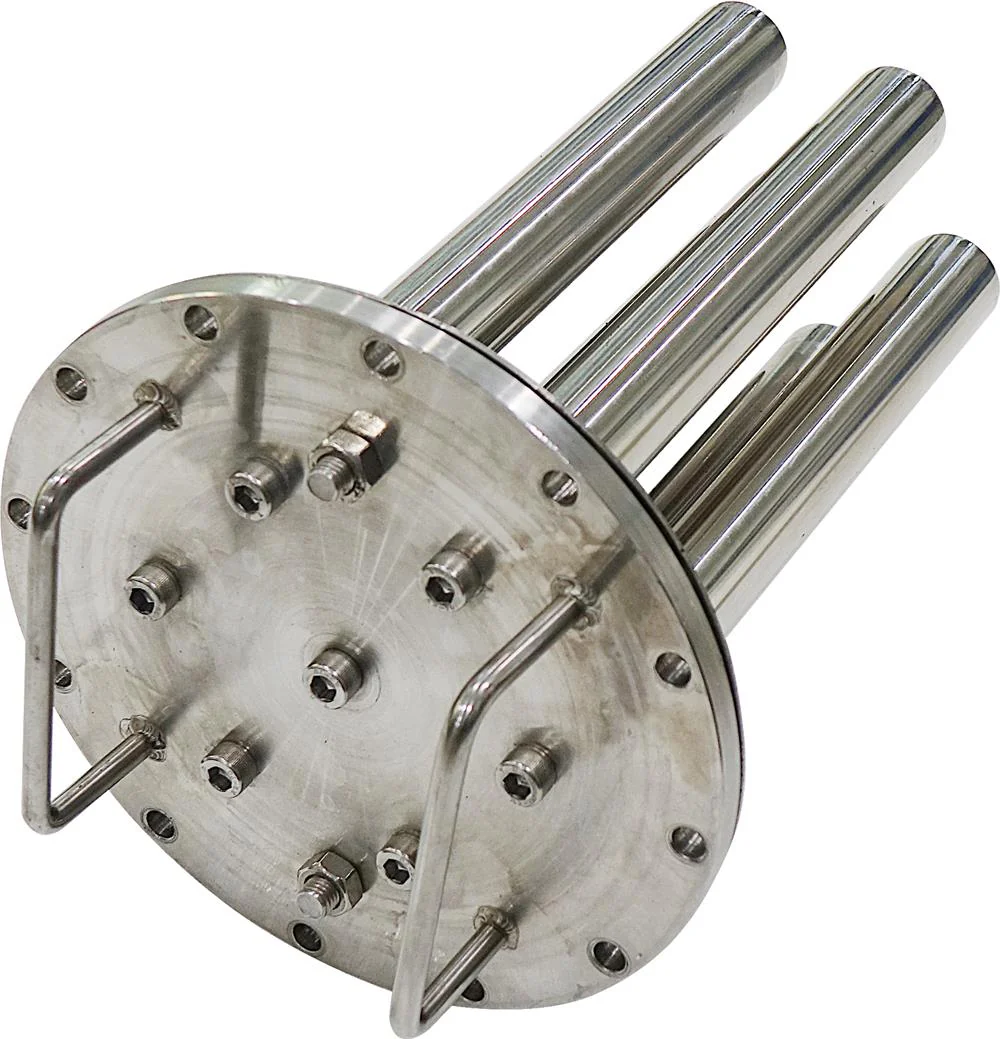

Deironing Function	10000 G per magnetic rod, 7 rods in total
Filtration Mode	Vacuum filtration, magnet deiron, continuous process
Filtration Mesh	10"150mesh filtration core. The mesh number of filter can be customized.
Deiron Capacity	4 magnetic bar with φ25*200mm，each rold with 10000 Gs
Filtration Container	Stainless steel, customization available
Single-Pass Remaining Slurry	0.4 L
Slurry Viscidity	<=20000CP
