Manual Die Cutters for Pouch Cell or Coin Cell Cathode and Anode Electrodes (56x43 & 58x45) - MSK-T18

Product image 1
1 / 5

Manual Die Cutters for Pouch Cell or Coin Cell Cathode and Anode Electrodes (56x43 & 58x45) - MSK-T18

MSK-T-18 is a manual die cutter set for cutting pouch cell battery cathode and anode electrodes. One pair of die cutters is included: One for cutting two cathode sheets of L56 mm x W43 mm (W), and another for cutting two anode sheets of L58 mm x W45 mm. Customized die-cutters are available upon request.
It is a cost-effective die cutter to make pouch cells for battery research

SPECIFICATIONS

Cutting Dies Dimension

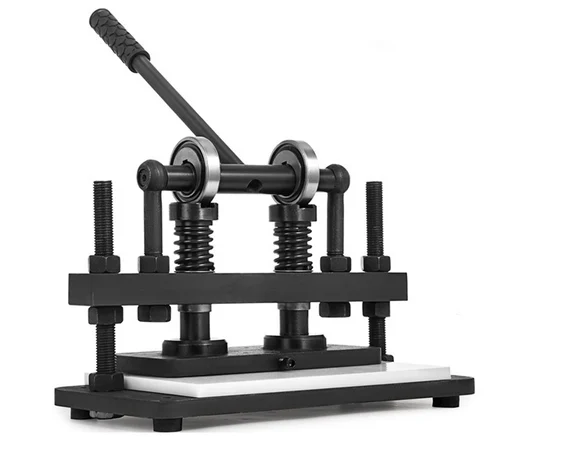

  • The standard Cathode and Anode Cutting dies are preinstalled in the cutters for immediate use (Pic 1)

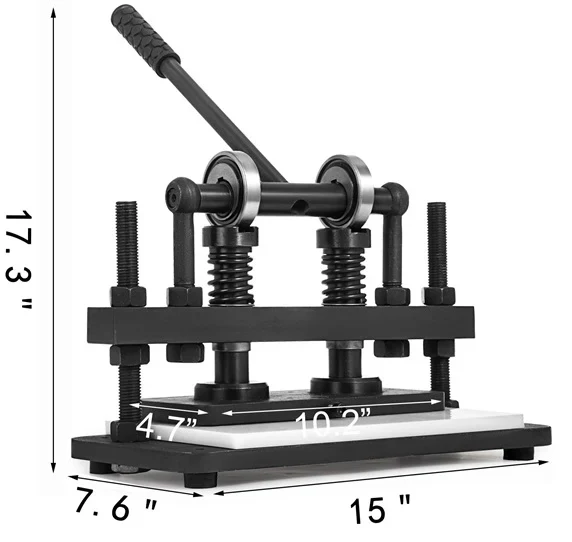

    • Cathode Die (mm): 56 L x 43 W with the protrude current collector of 10 L x 5 W (Pic.2)
    • Anode Die (mm): 58 L x 45 W with the protrude current collector of 10 L x 5 W (Pic.2)
    • <100 mm width electrode sheet is required to insert into the cutter (please see the video to learn the operation)
  • Customized die size is available for this device.
 Cutter Structure
  • Manual push-down rod for cutting
  • Pressing Fixture size: 4.7" x 10.2"
  • One PVC plate is put on the bottom to protect the cutting die
  • One set of wrenches and a screw drive is included for adjusting the pushing plate position

Cutting Dies

for Pouch Cell
  • Two die cutters are included, and one die cuts two pieces of electrode
    • Cathode Die: 56 mm (L) x 43 mm (W) with 14 mm (L) x 11 mm (W) protruding current collector
    • Anode Die: 58 mm (L) x 45 mm (W) with 13 mm (L) x 11 mm (W) protruding current collector
  • Maximum Customized Size: 120 mm (L) x 80 mm (W) (including current collector)
  • Other customized sizes are at an extra cost; don't hesitate to get in touch with us for more details.

Cutting Dies for Coin Cell of 20 mm
  • Three cutting dies for coin cells are included; each die can cut 8 disks
    •  One die cut a 15 mm diameter disk for the anode
    •  One die cut a 19 mm diameter disk for the cathode
    • One die cut a 20 mm diameter disk for the separator

Cutting dies for the disk from 1.0mm to 55mm






  • One set of 16 circular cutters in different sizes is included.
  • Diameter: 6mm(0.24"), 7mm(0.28"), 8mm(0.32"), 9mm(0.36"), 10mm(0.40"), 11mm(0.44"), 12mm(0.48"), 15mm(0.6"), 20mm(0.80"), 25mm(0.98"), 30mm(1.18"), 35mm(1.38"), 40mm(1.57"), 45mm(1.77"), 50mm(1.97"), & 55mm(2.17").
Cutting Depth
  • Max. 0.2 mm (tested with aluminum laminated film)
Cutting Accuracy
  • ±0.1mm
  • For better cutting accuracy, please consider the precise die cutter MSK-180SP and MSK-180-N
Compliance
  • No UL is required because there is no electricity
Application Notes
  • Combining with MTI 3 in 1 vacuum sealer, and ultrasonic welder, you can now make a single or multi-layer pouch cell to explore new generation battery material with more practical data at an ever-lower cost
  • You may use the MTI split test cells to make a pouch or coin cell at an ever-lower cost



Select Pressing Dies
From $489.30

Original: $1,398.00

-65%
Manual Die Cutters for Pouch Cell or Coin Cell Cathode and Anode Electrodes (56x43 & 58x45) - MSK-T18—

$1,398.00

$489.30

Product Information

Shipping & Returns

Description

MSK-T-18 is a manual die cutter set for cutting pouch cell battery cathode and anode electrodes. One pair of die cutters is included: One for cutting two cathode sheets of L56 mm x W43 mm (W), and another for cutting two anode sheets of L58 mm x W45 mm. Customized die-cutters are available upon request.
It is a cost-effective die cutter to make pouch cells for battery research

SPECIFICATIONS

Cutting Dies Dimension
  • The standard Cathode and Anode Cutting dies are preinstalled in the cutters for immediate use (Pic 1)
    • Cathode Die (mm): 56 L x 43 W with the protrude current collector of 10 L x 5 W (Pic.2)
    • Anode Die (mm): 58 L x 45 W with the protrude current collector of 10 L x 5 W (Pic.2)
    • <100 mm width electrode sheet is required to insert into the cutter (please see the video to learn the operation)
  • Customized die size is available for this device.
 Cutter Structure
  • Manual push-down rod for cutting
  • Pressing Fixture size: 4.7" x 10.2"
  • One PVC plate is put on the bottom to protect the cutting die
  • One set of wrenches and a screw drive is included for adjusting the pushing plate position

Cutting Dies

for Pouch Cell
  • Two die cutters are included, and one die cuts two pieces of electrode
    • Cathode Die: 56 mm (L) x 43 mm (W) with 14 mm (L) x 11 mm (W) protruding current collector
    • Anode Die: 58 mm (L) x 45 mm (W) with 13 mm (L) x 11 mm (W) protruding current collector
  • Maximum Customized Size: 120 mm (L) x 80 mm (W) (including current collector)
  • Other customized sizes are at an extra cost; don't hesitate to get in touch with us for more details.

Cutting Dies for Coin Cell of 20 mm
  • Three cutting dies for coin cells are included; each die can cut 8 disks
    •  One die cut a 15 mm diameter disk for the anode
    •  One die cut a 19 mm diameter disk for the cathode
    • One die cut a 20 mm diameter disk for the separator

Cutting dies for the disk from 1.0mm to 55mm






  • One set of 16 circular cutters in different sizes is included.
  • Diameter: 6mm(0.24"), 7mm(0.28"), 8mm(0.32"), 9mm(0.36"), 10mm(0.40"), 11mm(0.44"), 12mm(0.48"), 15mm(0.6"), 20mm(0.80"), 25mm(0.98"), 30mm(1.18"), 35mm(1.38"), 40mm(1.57"), 45mm(1.77"), 50mm(1.97"), & 55mm(2.17").
Cutting Depth
  • Max. 0.2 mm (tested with aluminum laminated film)
Cutting Accuracy
  • ±0.1mm
  • For better cutting accuracy, please consider the precise die cutter MSK-180SP and MSK-180-N
Compliance
  • No UL is required because there is no electricity
Application Notes
  • Combining with MTI 3 in 1 vacuum sealer, and ultrasonic welder, you can now make a single or multi-layer pouch cell to explore new generation battery material with more practical data at an ever-lower cost
  • You may use the MTI split test cells to make a pouch or coin cell at an ever-lower cost
