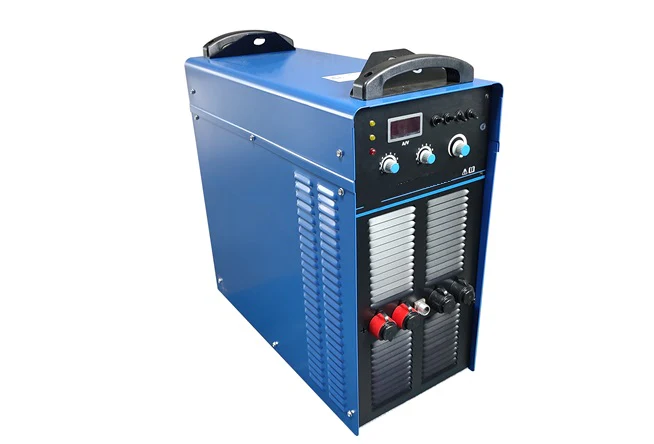

55KW 1000A DC Power Supply for MTI's Arc Melting Systems - MSM-PS1000
SPECIFICATIONS
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Input Voltage/phase | 460VAC, 3 PHASE, 50/60Hz |
| Input Current | 83 AC ( 100% duty) |
| Power | 55 KW max ( 100 % duty ) |
| Output Voltage | 83V (DC) |
| Output Rated Amps | 60 - 1000 A ( DC) |
| Power Factor | λ >= 0.92 |
| Arc Ignition | HF Arc Starting |
| Warranty | Three years limited manufacture warranty |
| Compliance | NRTL certification is available upon request at the extra cost |
$4,898.60
Original: $13,996.00
-65%55KW 1000A DC Power Supply for MTI's Arc Melting Systems - MSM-PS1000—
$13,996.00
$4,898.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFICATIONS
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Input Voltage/phase | 460VAC, 3 PHASE, 50/60Hz |
| Input Current | 83 AC ( 100% duty) |
| Power | 55 KW max ( 100 % duty ) |
| Output Voltage | 83V (DC) |
| Output Rated Amps | 60 - 1000 A ( DC) |
| Power Factor | λ >= 0.92 |
| Arc Ignition | HF Arc Starting |
| Warranty | Three years limited manufacture warranty |
| Compliance | NRTL certification is available upon request at the extra cost |
