120L/min Oil Free Vacuum Pump - OFP14

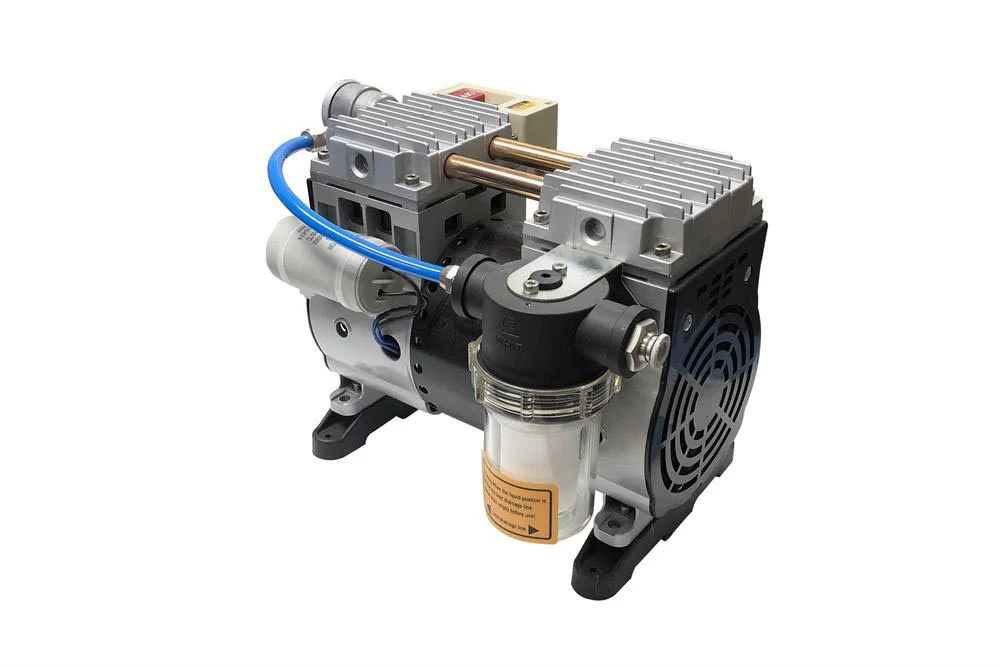

Product image 1
1 / 5

120L/min Oil Free Vacuum Pump - OFP14

Specifications

Features
  • Compact design and low noise and vibration
  • Efficient cooling system and Maintenance-free
  • Longer running life and Ideal for small gas circulating system
  • Two Rubber Anti-Vibration Pads (Updated from 07/30/2015)
Voltage/Frequencies (V/Hz)
  • 110/220 VAC 50/60Hz
  • (Please select the voltage in the options bar, 220VAC version doesn't include the power plug)
  • Note: As this pump doesn't feature a power switch, we recommend you use an extension outlet that enables remote power ON/OFF control.
Power (Watt)
  • ≤450W
Max. Air Flow
  • ≤7.2m^3/h (120L/min)
Vacuum
  • 80~100 torr (10665.8~13332.2 Pa)
Noise Level
  • ≤60dB(A)
Operation Temperature
  • 5-40°C
Insulation Class
  • B
Cold Insulation Resistance
  • ≥100MΩ
Dielectric Strength
  • 1500V/50Hz 1min (No Breakdown)
Thermal Protector (°C)
  • 130±5°C (Automatic reset)
Inlet/Outlet connections
  • 1/4-18FPT
Compliance
  • CE approval
Warning

Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:

  • Pumping of corrosive or explosive media.
  • Pumping of condensing vapors.
  • Pumping of liquids.
  • Pumping of dust.
  • Operation with improper high levels of insulated heat input.
  • Operation in potentially explosive areas.
Inlet & Outlet connector
  • Inlet: one Ø8mm push-to-connect
    • Note: the Ø8mm gas tube is not included.
  • Outlet: One gas exhaust filter (included)





Select Rated Voltage|
From $313.25

Original: $895.00

-65%
120L/min Oil Free Vacuum Pump - OFP14—

$895.00

$313.25
