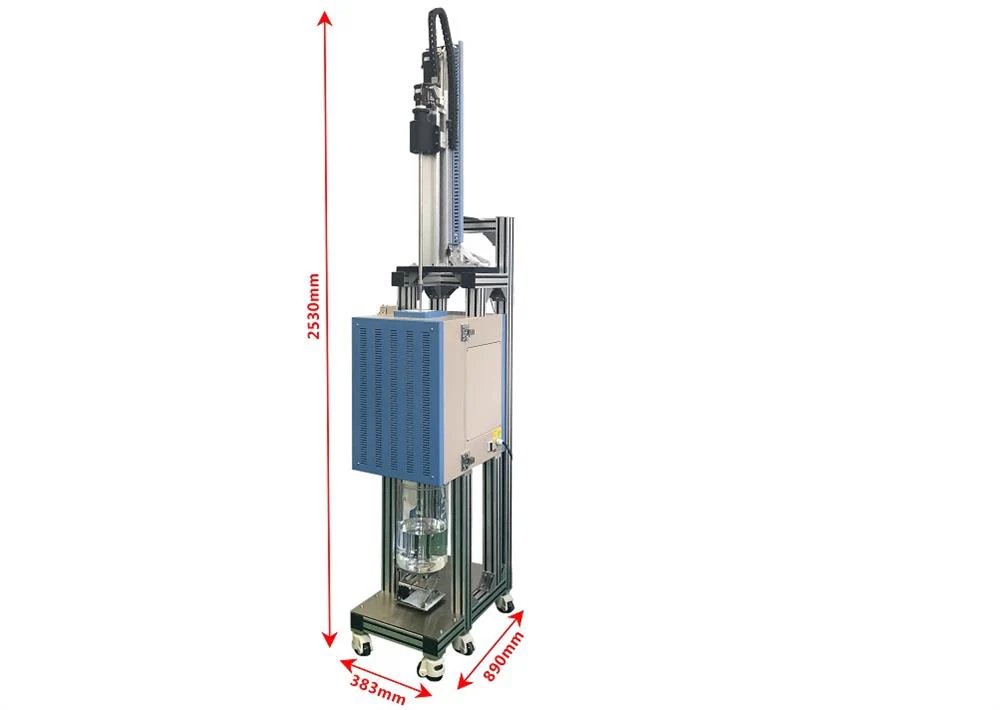

Large size 5-position programmable dip coater w/ 225L Dry Oven - PTL-OV5P-L

Product image 1

Large size 5-position programmable dip coater w/ 225L Dry Oven - PTL-OV5P-L

PTL-OV5P-L 5-position die coater is suitable for large sample up to 10" x 3". The coating process involves one sample each time to be selected to coat out of 5 containers which usually contain 5 different types of the coating solution. The user can write a coating program in touch screen control and monitor the status from it. The try oven is controlled by a digital PID temperature controller. It can be set to dry the sample after coating without the hand-in process and significantly save the time consuming ensure the operational consistency.


SPECIFICATIONS:

Structure
  • 5 positions programmable rotary stage
  • stepping motor control pulling system with control resolution as low as 1mm/min
  • Stainless steel pulling wire
  • quick sample clip for up to 10" x 3" sample
  • Stainless steel oven chamber
Rotary dipping stage
 The rotary dipping stage has five slots to place coating solution containers. It is controlled by the program to send each container sequentially in a position for sample coating. According to the program which user can coat their sample with one or multiple layers of coating at one go.
Touch screen controller 6" color touch screen controller

Travelling Distance 300 mm max.
Dipping/Pulling Speed 1-200 mm/min Adjustable
Max. Sample Size 10" x 3"
Max. Sample Weight 4 kg
Oven
  • Working Voltage: 208-240V AC
  • Max. Power Consumption: 2300W
  • Inside dimensions: 600 x 500 x 750mm (L W H) ( 225L)
  • Digital temperature controller+/- 1.5°C accuracy
  • Max. Working Temperature: 200°C
Compliance CE Certified
NRTL or CSA certification is available upon request at the extra cost



$6,999.30

Original: $19,998.00

-65%
Large size 5-position programmable dip coater w/ 225L Dry Oven - PTL-OV5P-L—

$19,998.00

$6,999.30
