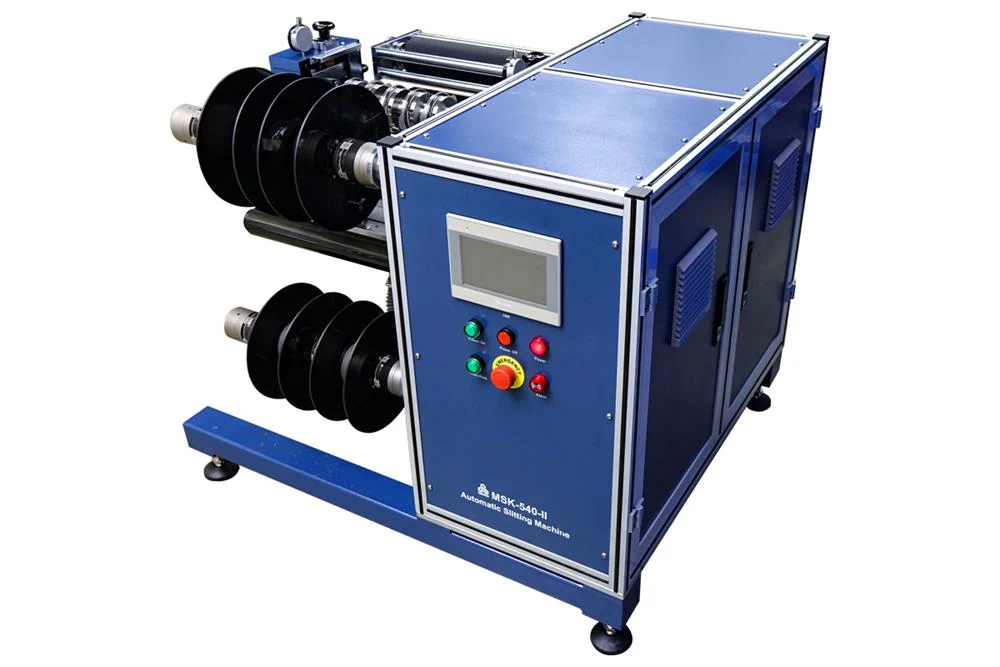

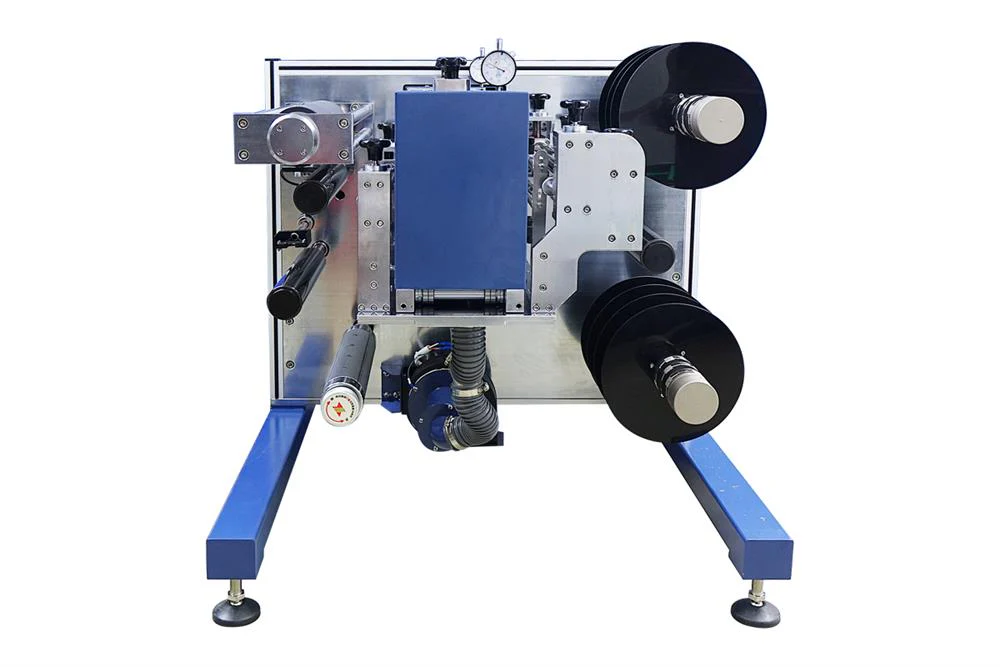

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II

Product image 1
1 / 3

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II

MSK-540-II is a Roll to Roll automatic continuous slitting machine.

  • Multiple electrodes strip slitting
  • High precision round disc blades
  • Cutting depth and speed are adjustable
  • Automatic Roll to Roll Feeding and Correcting

MTI has granted the patent 201821974061.8 for the Roll to Roll Automatic Slitting Machine MSK-540-II since September 2019.

SPECIFICATIONS:

Working Voltage
  • Power supply: Single-phase 220V AC, 50/60Hz
  • Maximum Power: 1 kW
  • For operating at 110V AC, please order a transformer separately by clicking the Picture below
Reeling and Unreeling
  • Roller Width: 380 mm
  • Automatic Tension control ≤ 50N
  • Max. Reeling/Unreeling Diameter: 250mm
  • Automatic unwinding correction, accuracy ± 0.5mm
Cutting Blades
  • Burr condition: ≤ 16 um
  • Four electrode strip slitting
  • Top and bottom set of round blades
  • Blade Materials: Ultrafine Tungsten Alloy
  • Blade Diameter: 100mm
Cutting Width
  • Range: 30 ~ 300mm
  • The width of the electrode strip is preset and fixed
  • Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness
  • 10 - 300 um
Cutting Speed
  • 1 - 5 m/min Adjustable
Optional Upgrades
  • Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost
  • De-dusting and iron powder removing device could be added at extra cost





$34,960.10

Original: $99,886.00

-65%
Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II—

$99,886.00

$34,960.10

Product Information

Shipping & Returns

Description

MSK-540-II is a Roll to Roll automatic continuous slitting machine.

  • Multiple electrodes strip slitting
  • High precision round disc blades
  • Cutting depth and speed are adjustable
  • Automatic Roll to Roll Feeding and Correcting

MTI has granted the patent 201821974061.8 for the Roll to Roll Automatic Slitting Machine MSK-540-II since September 2019.

SPECIFICATIONS:

Working Voltage
  • Power supply: Single-phase 220V AC, 50/60Hz
  • Maximum Power: 1 kW
  • For operating at 110V AC, please order a transformer separately by clicking the Picture below
Reeling and Unreeling
  • Roller Width: 380 mm
  • Automatic Tension control ≤ 50N
  • Max. Reeling/Unreeling Diameter: 250mm
  • Automatic unwinding correction, accuracy ± 0.5mm
Cutting Blades
  • Burr condition: ≤ 16 um
  • Four electrode strip slitting
  • Top and bottom set of round blades
  • Blade Materials: Ultrafine Tungsten Alloy
  • Blade Diameter: 100mm
Cutting Width
  • Range: 30 ~ 300mm
  • The width of the electrode strip is preset and fixed
  • Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness
  • 10 - 300 um
Cutting Speed
  • 1 - 5 m/min Adjustable
Optional Upgrades
  • Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost
  • De-dusting and iron powder removing device could be added at extra cost
