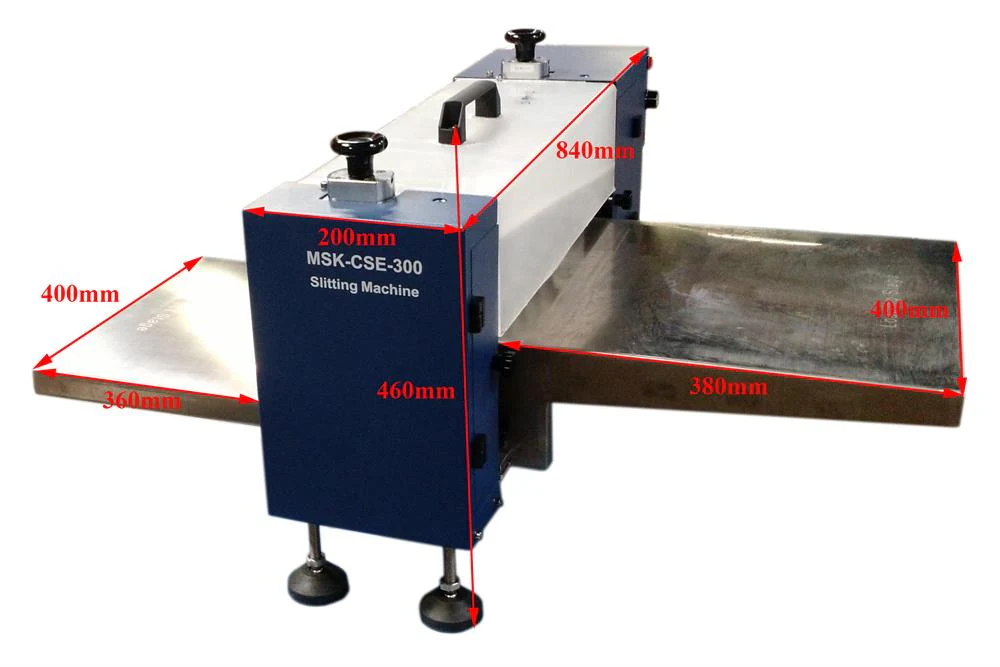

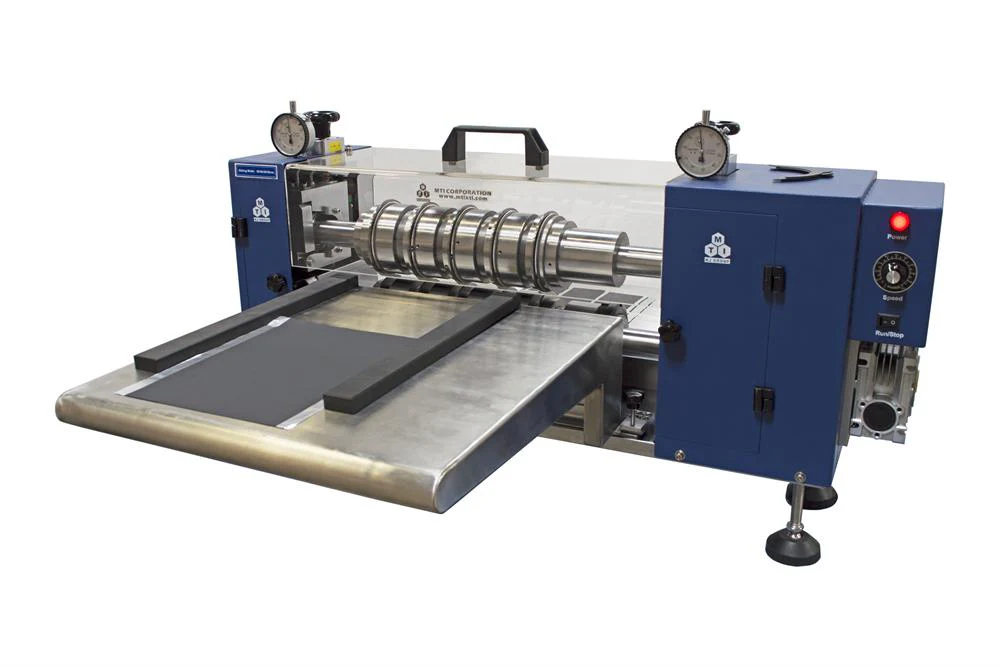

MSK-CSE-300 is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrodes of cylinder batteries in R&D laboratories.
MTI has granted the patent 201821974061.8 for the Semi-Automatic Slitting Machine MSK-CSE-300 since September 2019.

SPECIFICATIONS:

Working Voltage	Machine Input: 22-24V DC with 5mm barrel connector Power Input: 110-240V AC to 22V DC adaptor (120W) with CE / ETL approval, which can be used worldwide (PSE-approved power adaptor for Japan is available upon request)
Max. Power Consumption	100W
Cutting Blades	10 spherical cutting blades (5 blades per roller) Blade Materials: Tungsten alloys Blade Diameter: 100mm
Cutting Width	Cutting width for each section: 58 mm, 58 mm, 56 mm, and 56 mm, which are the typical sizes for a 18650 cylindrical battery. Customization: 25 - 250mm cutting width is available at extra cost, please contact us for details.
Cutting Thickness	100 - 300 microns
Cutting Speed	Adjustable: 0 - 4 meters/minute
Compliance	CE certified Meet CSA, TUV and UL standard

STANDARD PACKAGE
