Small Dehumidification System with Air Cooling ( RH 10% max ) - MSK-ADS-600E

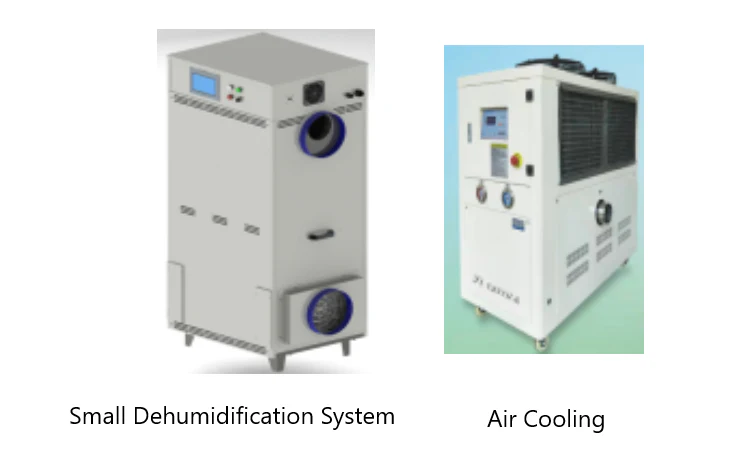

Product image 1

Small Dehumidification System with Air Cooling ( RH 10% max ) - MSK-ADS-600E

MSK-ADS-600E is a small dehumidification system including air cooling. It can be used for humidity and temperature control in a small area dry room.

SPECIFICATIONS
Features and principle
  • Area of Dry room <= 13.95 square meters
  • With only one operator
  • Relative humidity: 10% at room temperature (Dew point: -9°C)
Voltage & Power
  • AC 220V +/- 10%, 50/60 Hz, Single Phase
  • Max power: 9.5 kW
Dehumidification
  • 6 kg/hour
Air Volume
  • 600 m^3/hour
Regeneration Ratio
  • 1/3
Dehumidification Motor/Fan
  • Speed: 15 - 30 RPH
  • Diameter: 350 mm
  • Thickness: 200 mm
  • Capacity: 600 m^3/ hour
  • Power: 0.75 kW
  • Maximum Air Pressure: 300 Pa
Regeneration Motor/Fan
  • Capacity: 200 m^3/hour
  • Power: 0.37 kW
  • Maximum Air Pressure: 350 Pa
Regeneration Heater
  • Power: 8.25 kW/hour
  • Motor Reduction Ratio: 1:500
  • Power of Motor: 0.015 kW/h
Air Cooling System/Fan
  • SDAA-02
  • Power: 2.2 kW
  • Voltage: AC 220V +/- 10%, 50/60 Hz, Single Phase
  • Refrigerant: R22
  • Air Compressor: 1.5 kW
  • Capacity: 300 m^3/hour
  • Diameter of Inlet and Outlet: 89 mm
Dimension
  • Small Dehumidification System: 675 mm (L)x 711 mm (W) x 1,600 mm (H)
  • Air Cooling: 900 mm (L) x 500 mm (W) x 900 (H)
Net Weight
  • Small Dehumidification System: ~200 kg
  • Air Cooling: 140 kg
Warranty
  • One-year limited warranty on lifetime support
Operation Demo Video
$29,998.00
Small Dehumidification System with Air Cooling ( RH 10% max ) - MSK-ADS-600E—
$29,998.00

Product Information

Shipping & Returns

Description

MSK-ADS-600E is a small dehumidification system including air cooling. It can be used for humidity and temperature control in a small area dry room.

SPECIFICATIONS
Features and principle
  • Area of Dry room <= 13.95 square meters
  • With only one operator
  • Relative humidity: 10% at room temperature (Dew point: -9°C)
Voltage & Power
  • AC 220V +/- 10%, 50/60 Hz, Single Phase
  • Max power: 9.5 kW
Dehumidification
  • 6 kg/hour
Air Volume
  • 600 m^3/hour
Regeneration Ratio
  • 1/3
Dehumidification Motor/Fan
  • Speed: 15 - 30 RPH
  • Diameter: 350 mm
  • Thickness: 200 mm
  • Capacity: 600 m^3/ hour
  • Power: 0.75 kW
  • Maximum Air Pressure: 300 Pa
Regeneration Motor/Fan
  • Capacity: 200 m^3/hour
  • Power: 0.37 kW
  • Maximum Air Pressure: 350 Pa
Regeneration Heater
  • Power: 8.25 kW/hour
  • Motor Reduction Ratio: 1:500
  • Power of Motor: 0.015 kW/h
Air Cooling System/Fan
  • SDAA-02
  • Power: 2.2 kW
  • Voltage: AC 220V +/- 10%, 50/60 Hz, Single Phase
  • Refrigerant: R22
  • Air Compressor: 1.5 kW
  • Capacity: 300 m^3/hour
  • Diameter of Inlet and Outlet: 89 mm
Dimension
  • Small Dehumidification System: 675 mm (L)x 711 mm (W) x 1,600 mm (H)
  • Air Cooling: 900 mm (L) x 500 mm (W) x 900 (H)
Net Weight
  • Small Dehumidification System: ~200 kg
  • Air Cooling: 140 kg
Warranty
  • One-year limited warranty on lifetime support
Operation Demo Video
