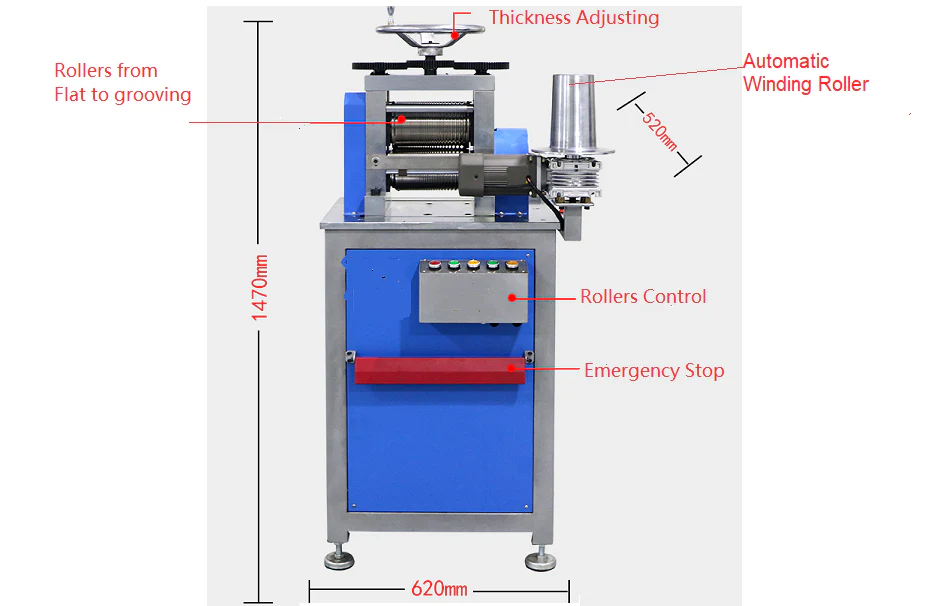

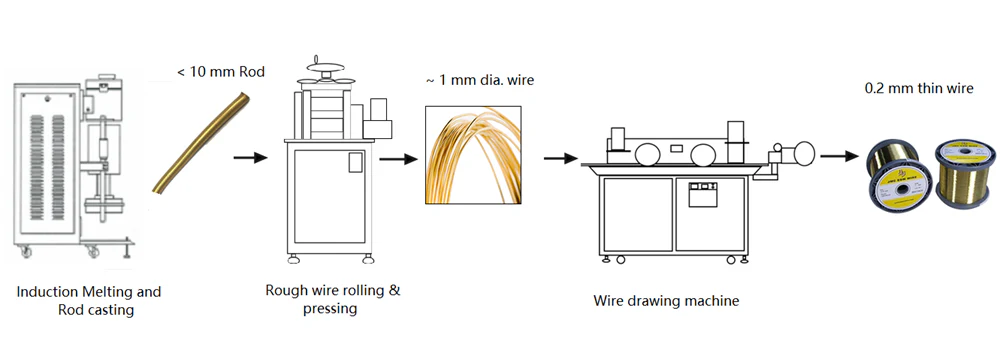

MSK-1220-W is a heavy-duty wire rolling mill, designed for rolling metallic wire (< RC 50) from 10 to 1 mm, such as Aluminum alloy, Copper, Nickel alloy and stainless steel, etc. It is one of the equipment for metallic wire preparation for WAAM.

SPECIFICATIONS:

Power	208- 240V Three Phase, 50/60Hz  5.5 KW AC motor (7.5 horsepower) 380VAC, three-phase is available upon request AC Motor
Rollers	The rollers surface consists of a series of grooves with a square cross section, from 10 to 1 mm (side length) The automatic winding roller is build in Roller materials: Hardening DC53 Roller size: 120 mm dia x 200 mm width (~4.7" Dia x 8" width) Hardness: HRC 63-65 Rolling thickness: 1 - 11 mm adjustable
Rolling Speed	0 - 6 mm / second adjustable by 22 segments
Compliance	CE Certified NRTL certification is available upon request at an extra cost
Application Note	Never roll materials with hardness > 50HRC The thickness for each time pressing is dependent on material thickness. Harder material shall be less press thickness, which customer shall test by themselves for the best parameters For some material, you may need to anneal it by furnace after each rolling to avoid work hardening
