100T Electric Cold Isostatic Pressing (CIP) with ID 35/50/60/80 mm Vessel up to 900 Mpa - YLJ-CIP-XXA

Product image 1
1 / 3

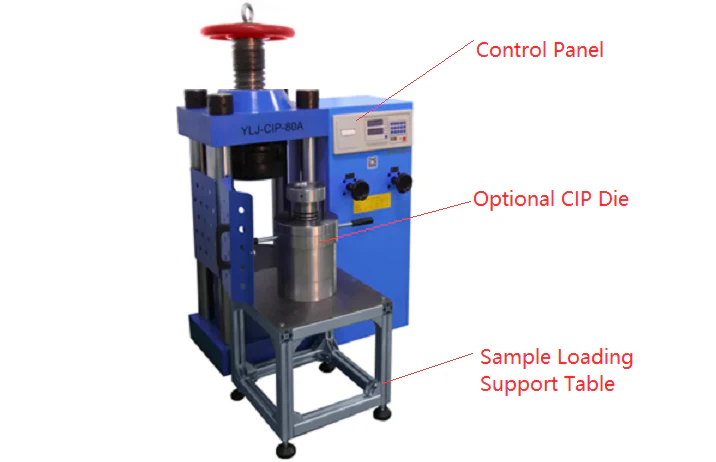

100T Electric Cold Isostatic Pressing (CIP) with ID 35/50/60/80 mm Vessel up to 900 Mpa - YLJ-CIP-XXA

YLJ-CIP-AXX is an electric cold isostatic pressing (CIP) machine operated via a 100T electric hydraulic pump with optional 35. 50, 60, 80mm ID CIP vessel up to 900 Mpa. It is an excellent tool for preparing many high-density ceramic rods, disks or targets. compared to dry die pressing.

SPECIFICATIONS:

Hydraulic Press
  • Max. 100 Metric Tons
  • Digital pressure display (unit KN)
  • 10 - 100T adjusted by manual ON/OFF valve
  • Display real pressure on the sample based on die size
  • Pressure accuracy: +/- 1% by adjusting hydraulic oil valve
Electric Hydraulic Pump
  • Standard: 220V±10% AC (single phase, 50/60hz)
  • 750W AC motor
  • Optional: 110V to 220V transformer for using under 110V
Pressure Controller
  • Digital control panel
  • Built-in paper printer to print out strength data
Bottom Hydraulic Cylinder Travel Distance
  • 0 - 20 mm
  • Range sensing switch to prevent travel distance beyond 20 mm
Top Support Screw Adjustable Height
  • 310 mm
Working Space
  • Top & Bottom working plate: 240 Lx 240 W x 300 H, mm
Moving Cart
  • The Cart for the CIP Die moving is included
Press Cover
  • A metal door with a magnetic door latch
  • Note: For safety, please close the door before operating
Optional CIP Die
  • The optional die is available for this 100T hydraulic press
The ID of CIP Die (mm) 35 50 60 80
Max. Pressure (MPa) 900 500 300 200
Max Force to apply ( T) 86.6 98.1 84.7  100
Click Pic to order
Compliance
  • CE Certified
  • NRTL (UL or CSA) Certification is available upon request at an extra cost
Application Notes
  • You may use the liquid rubber to seal the sample to be CIP ( click Pic.1 to order). Check this link to understand liquid rubber for sample preparation.
  • You may use a small vacuum sealer to seal the sample before CIP inside a glovebox to avoid air contamination ( Click Pic. 2 to order)
  • You may use the machine as a dry pressing to order a pressing die (click Pic below right)

Pic. 1  Pic. 2 Pic. 3



Select CIP Die ID&Pressure
From $6,299.30

Original: $17,998.00

-65%
100T Electric Cold Isostatic Pressing (CIP) with ID 35/50/60/80 mm Vessel up to 900 Mpa - YLJ-CIP-XXA—

$17,998.00

$6,299.30
