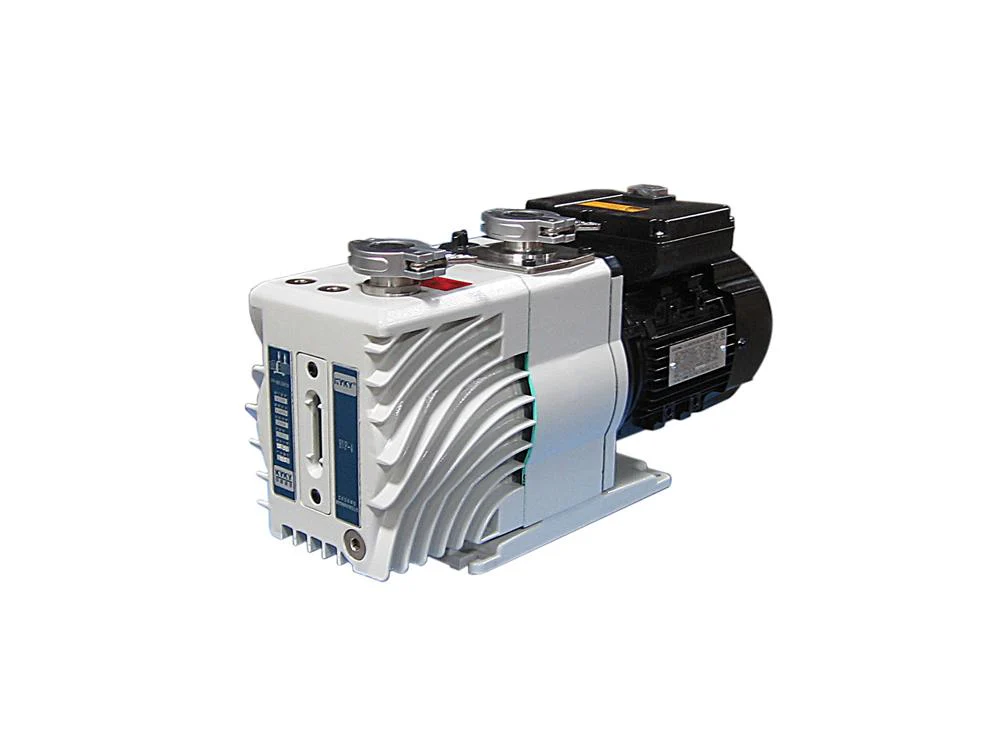

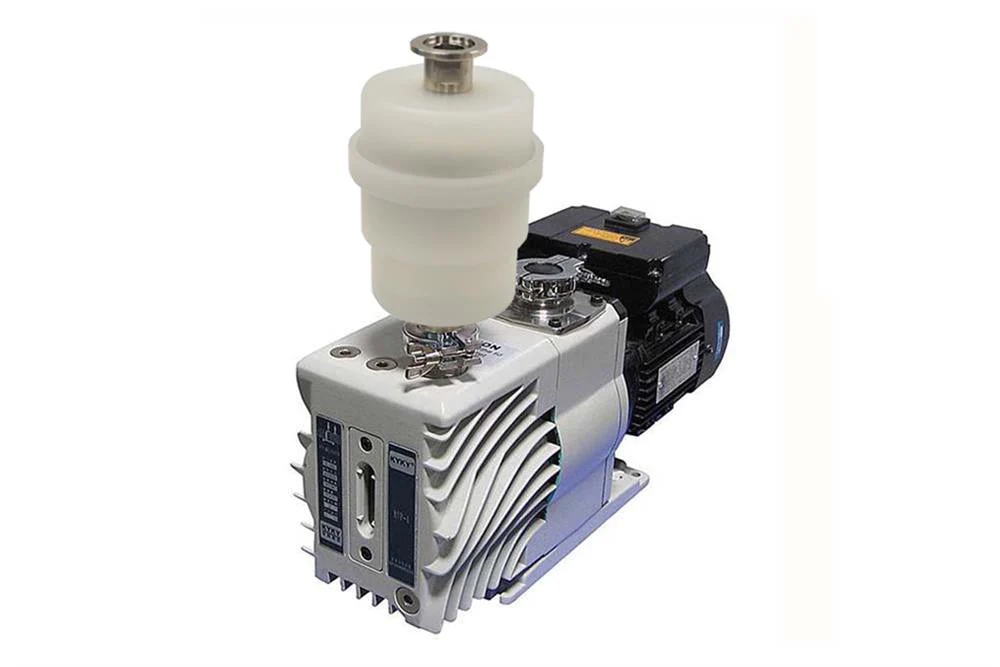

NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD
NRTL certified 240 L/m Heavy Duty Double Stage Rotary Vane Vacuum Pump with Exhaust Filter - YTP-550-LD
The Heavy Duty Double Stage Rotary Vane Pump utilizes proprietary advanced technique to increase performance and adaptability with extremely low noise generation. The YTP550 features a proprietary built-in check valve, an easy-to-use air needle valve control and oil scale inspection. It is the most cost-effective vacuum pump for using continuously
|
Model Type |
YTP550-4E16A |
|
Voltage / Frequency |
110V or 208 - 240V / 50-60 Hz |
|
Working Current |
3.5A Max. ( 750W Max. ) |
|
Pumping Rate (m3/h) |
240 L/min or 8.5 CFM
(Please click here to convert metric to English unit)
|
|
Maximum Pressure |
3E-3Torr (4×10-1Pa) |
|
Power (HP) |
3/4HP550W |
|
Rotate Speed |
1400 (rpm) |
|
Volume of Oil (ml) |
1100 (included) |
|
Working Temperature |
-5 ~ 60 0C |
|
Vacuum port fitting (KF25D) |
 KF-25 ports, click the picture above to enlarge
|
|
Vacuum Pump Exhaust System with KF-D25 Adapter & Quick Clamp (Included for immediate use)  |
Oil Mist Trap is included
|
|
Dimension |
20" (l) x 6" (w) x18" (h) with Filter |
|
Net Weight (kg) |
25 |
|
Shipping Dimension (mm) &Weight (Kg) |
440x160x300mm; 30 Kg |
|
Structure Drawing |
 |
|
Certificate |
CE approved UL Certified (UL 1450) . |
|
Warranty |
One year limited with lifetime support (Attention: Improper use will cause all claims for liability and warranties to be forfeited. Improper use is deemed to be all use for purposes deviating from those mentioned in below, especially:
|
| Application Note |

|
|

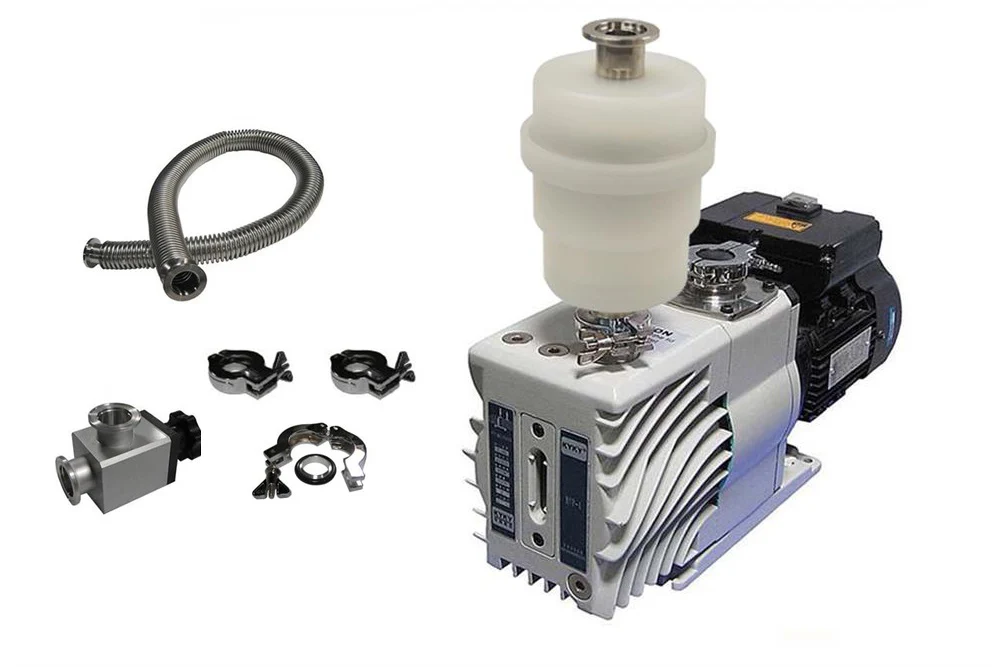

Part No. |
Product Name |
Quantity |
|
EQ-YTP-550
|
240 L/m Heavy Duty Rotary Vane Vacuum Pump with Exhaust Filter, EQ-YTP-550
|
1
|
|
EQ-KF-Pipe-D25
|
Vacuum bellows with KF-D25 adaptor (1m)
|
1
|
|
EQ-KF-Valve-D25
|
KF25 Vacuum Right-Angle Valve
|
1
|
|
EQ-KF-Clamp-D25
|
Quick Clamp with Rubber O-Ring for KF-D25 Vacuum Adaptor
|
3
|
Original: $2,998.00
-65%$2,998.00
$1,049.30Product Information
