23 Chamber (Each of 6.5"W x 5.25"H x 15" D) Cabinet for Multi-battery Test - MSK-TE-24

Product image 1
1 / 3

23 Chamber (Each of 6.5"W x 5.25"H x 15" D) Cabinet for Multi-battery Test - MSK-TE-24

MSK-TE-24 is a front-loading multi-chamber cabinet which consists of 23 individual chambers with the dimension of 6-1/2" W x 5-1/4" H x 15" D and can test 23 pieces of small batteries independently. A 16 mm (5/8") ID cable feedthrough is available in the back of each test chamber.

SPECIFICATIONS

Structure & Material
  • Material: Aluminum Alloy
  • Mounting: Wall-mount, bench-mount, or base-mount.
  • Dimension: Whole Cabinet: 750 L × 420 W × 870 mm H
  • Chamber:  23 small chambers with size: 165 L x 380 D x 133 mm H (6.5" W x 5.25"H x 15" D )
  • Ports: Each chamber has one 16 mm (5/8") diameter feedthrough port for electrical cables.
  • Loading: Front-loading by openable front panel or each individual door.
  • Locking: A deadbolt master lock for opening the front panel of the cabinet.
  • Individual 5-pin cylinder cam locks (with 2 keys) for each chamber.

Optional
  • A transparent front window and LED light in each chamber are available upon request at extra cost.
  • Temperature monitoring and an automatic Nitrogen Extinguishing System are available upon request at extra cost.
  • Thumb latch for each test chamber (in lieu of standard lock) upon request for free.

Operating Environment
  • 0 - 50 °C
  • 0 - 85%RH
Battery Testers (Optional)

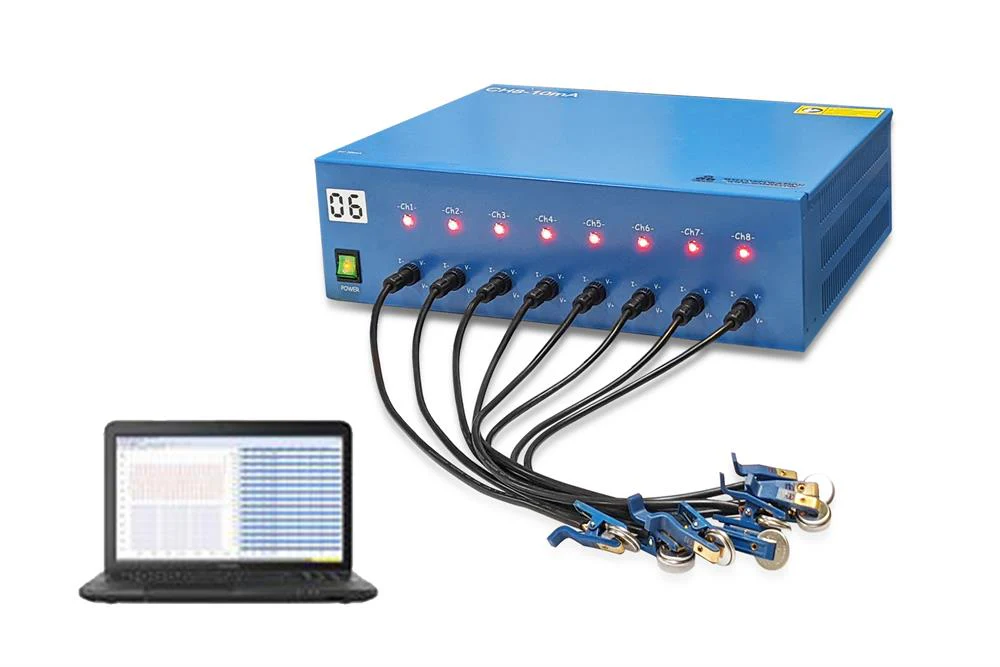

 A smart battery analyzer for use as the source of over-charging and forced discharging is available through here:
Warning
  • For better safety, the battery test box shall be placed in a fire-proof and isolated room or a fume hood
Application Notes
  • IEC 62133 Safety Test Standard Details
  • Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements
  • Other equipment for testing of IEC 62133 or UN38.3 Standards can be found at MTI online site.





$1,399.30

Original: $3,998.00

-65%
23 Chamber (Each of 6.5"W x 5.25"H x 15" D) Cabinet for Multi-battery Test - MSK-TE-24—

$3,998.00

$1,399.30
