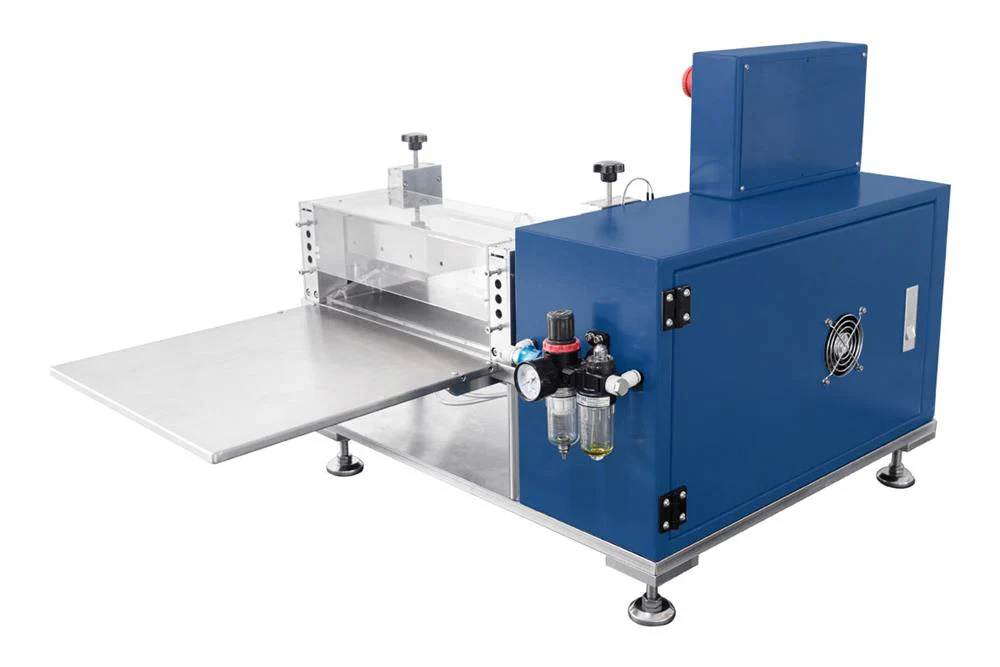

Automatic Roll-to-Sheet Cutting Machine for Electrodes Cutting - MSK-520A

Product image 1
1 / 6

Automatic Roll-to-Sheet Cutting Machine for Electrodes Cutting - MSK-520A

Outstanding Features:

  • Auto-tension control.
  • The cutting width of electrodes: 10 mm - 290 mm
  • Continuous fixed-length cutting mode
  • Minor adjustment at the cutting edge for the continuous cutting
  • PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520 since September 2019.

SPECIFICATIONS:

Working Voltage
  • Single-phase 208~240VAC, 50/60Hz
Max. Power Consumption
  • 500 W
Acceptable Electrode Width
  • 10 mm - 290 mm
Cutting Accuracy
  • +/- 0.3mm
Tension Control
  • Maximum 30 N
Linear Speed Allowed for Cutting
  • Maximum 2 m/min
Acceptable Electrode Roll Size
  • Maximum 300 mm O.D.
Compress Air Requirement
  • 0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  •   pic1                pic2

$20,648.25

Original: $58,995.00

-65%
Automatic Roll-to-Sheet Cutting Machine for Electrodes Cutting - MSK-520A—

$58,995.00

$20,648.25
