MSK-TE902-UL is a UL standard Gravity Impact (Free Fall) Tester that can simulate an impact to a lithium battery based on UN38.3 standard (38.3.4.6). Battery Free Fall Testing based on IEC-62133-8.3.3 standard is feasible with this tester.

Note: MSK-TE902 was updated to MSK-TE902-UL since Jan.12,2017

SPECIFICATIONS

Power	208 - 240VAC (110VAC available upon request), 1KW
Cell Testing compatibility	Compatible with most commercialized Prismatic, Coin, Cylindrical, Pouch batteries Testing Standards: UN 38.3.4.6, GB31241-2014, GB/T18287-2000...
Gravity Mass	Mass can be set at 9.1 Kg or 10 kg. (Deadweight is available for minor adjustment of the impact force)
Drop Height	600 mm - 1000 mm adjustable
Horizontal Steel Rod	15.8 mm Dia steel rod is included for the impact test Customized diameter is available upon request
Chamber	Anti-explosion reinforced double-layer steel chamber Inside chamber: made of 1 mm thickness cold rolled SS304 with tensile strength > 500 Mpa Outside casing: made of 3 mm thickness annealed A3 steel with Tensile strength > 400 Mpa Explosion-proof window: L 382mm x W 332mm  Double layer 5 mm thick anti-explosion glass with sandwiched shattering proof film  Max. Working Space in the chamber: L300mm*W250mm*H1000mm Built-in illuminator Rolling wheels are installed on the bottom for easy transportation
Control Unit	6" color touch screen control panel for operating and setting parameters  Electric motor with worm gear reducer for raising and lowering the weight In the case of an electrical outage, the weight will be lowered and locked in position automatically Once the parameter setup on the touch screen, a wireless hand-held remote controller will operate the machine within 10 meters distance for the safest operation
Venting	A venting port is installed in the back chamber which shall be connected to your venting system. Duct included. (exhaust fan is not included) Warning:  Must keep venting fan and exhaust system running during battery testing to avoid pressure build-up in the case of battery explosion. A Centrifugal inline exhaust fan with aluminum flex duct connection is recommended and optional. (Click pic below to read detail) The machine should be placed in a fume hood or a well-circulated room
Safety Door	A pressure relief door is on the back of the chamber. In the case of a battery explosion, the door will "pop" to release the pressure inside of the chamber. Attention: Do not block the Pressure Relief Door

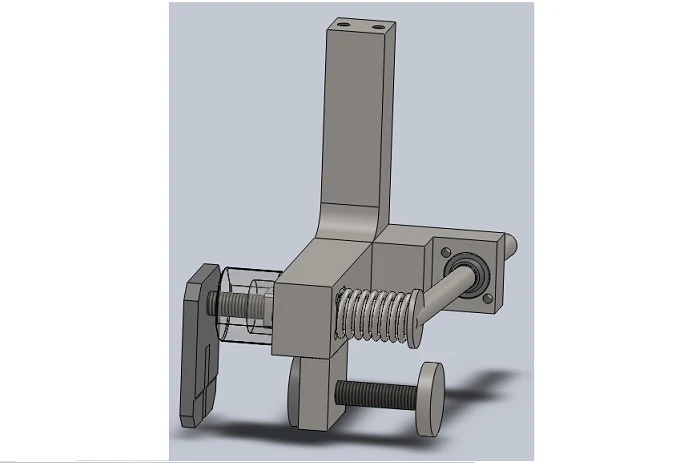

Free Fall Testing (Optional)	Freefall testing based on IEC-62133-8.3.3 is feasible with electric driven testing fixtures (Picture left). The additional cost will apply, please contact us for more details This fixture is only for small single cells. For a larger battery pack, please choose MSK-908
Dimensions	W 800mm x D 700mm x H 1,815mm
Weight	700 kg
Shipping Weight & Dimensions	925 lbs 42"x37"x80"
Warranty	One-year limited manufacturer's warranty with lifetime support; extended warranty available upon request at additional cost.
Compliance	CE certified NRTL or CSA certification is available upon request.
Application Notes	Please Click Here for Details on UN38.3 Li-Ion Battery Testing Requirements Other equipment for testing of IEC 62133 or UN38.3 Standards can be found at http://www.mtixtl.com/batterytestequipent.aspx The maximum thickness of the sample is 50mm for the Free Fall Test in IEC62133 (2nd edition) Safety Test Standard. If your sample is larger than that please contact us.
