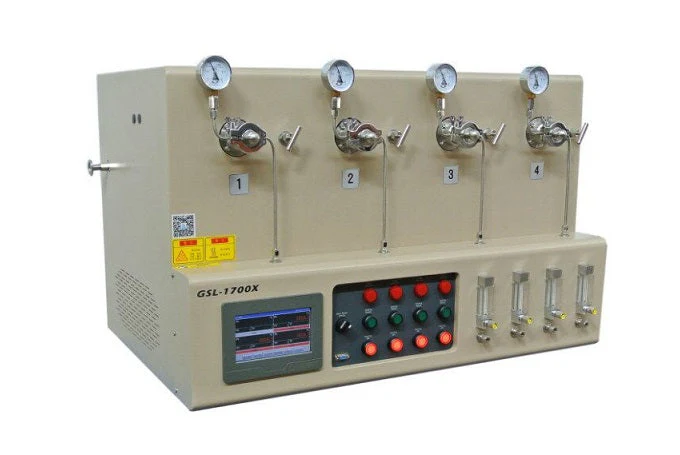

Product image 1
1 / 2

1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4

GSL-1700X-MGI-4 is an integrated four channels 25mm O.D. tube furnace for high throughput heat treatment research for alloy and ceramic materials up to 1700°C. Given the compact design, it save a lot of lab space.

SPECIFICATIONS

Furnace Structure
  • 4 tube furnace modules with alumina tubes of 25 OD x 22 ID x 460 L (mm)
  • Independent temperature control up to 1700°C for each module.
  • Hermetic flanges, Pressure gauges, flow meter, and vacuum ports are all included ready for use.

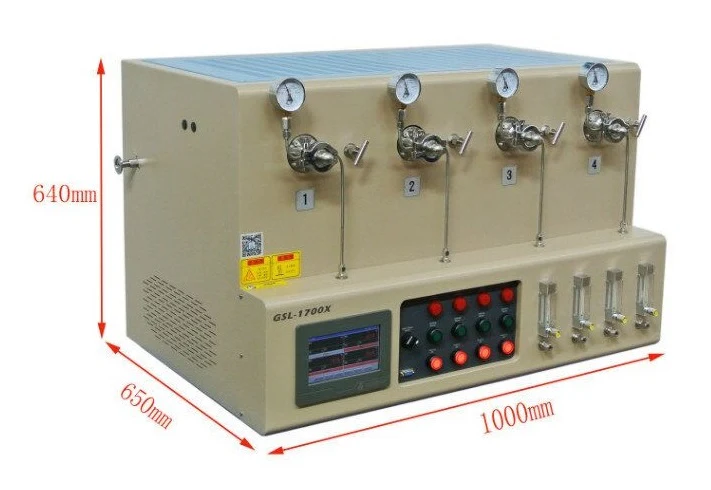

  • Compact size with a footprint of only 1000×650 mm.
Power
  • 208 - 240VAC, 1 ph., 50/60Hz, 30 A, 6 kVA
  • 10-foot power cord.
Working Pressure
  • < 3 psig

Working Temperatures
  • <1600°C, continuous @ ambient pressure
  • <1700°C  < 1 hr @ ambient pressure
  • <1500°C  under vacuum
Heating Length
  • 150 mm
Uniform Temperature Zone
  • +/- 5°C @ 60 mm @ 1400°C
Heating Rate
  • < 10°C/min
Heating Elements
  • MoSi2 heating elements (40mm x147mm)
  • 4 heating elements for each channel, a total of 16
Processing Tube
  • Alumina tubes, 25 OD x 22 ID x 460 L (mm)
Temperature Control
  • Touch screen panel
  • 30-segement PID temperature controllers
  • Interlocks for overheating and thermocouple failure
  • Temperature stability < ±1°C
Thermocouple
  • B type, alumina sheath

Heating Rate
  •  10 °C/ min Max.

PC Communication

Remote Control
  • RS-485 serial port
  • Complementary MTS-03 LabVIEW based temperature control software to edit temperature profiles, manage recipes, and data logging.
Vacuum
  • <5e-2 torr @ ambient temperature
  • (Optional) 156 L/min rotary vane pump for all four channels.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.



$10,149.30

Original: $28,998.00

-65%
1700°C 4 Channel Tube Furnace (1" Alumina Tube) for Hi-Throughput Annealing - GSL-1700X-MGI-4—

$28,998.00

$10,149.30
