• 800 -1720ºC continuous
• Max: 1750ºC < 2 hour

• Double-layer steel casing with air cooling.
• Two cooling fan inside to keep case temperature < 60^oC.
• High purity Alumina refractory chamber with max energy saving.
• Alumina tube, vacuum flange, gauge & valves are included.

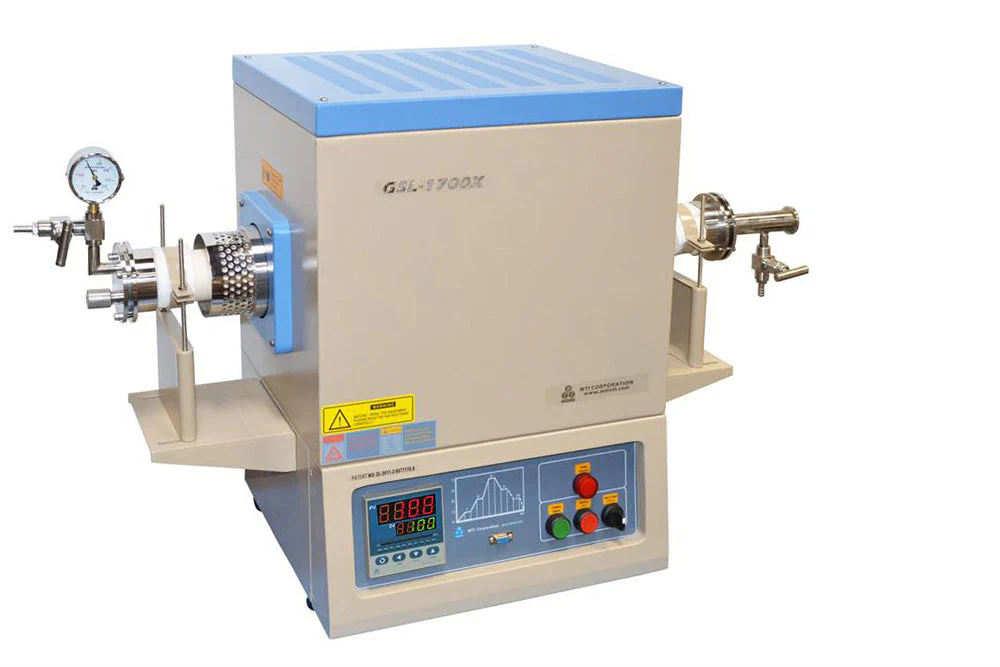

• Compact design (click picture on left to see dimensions)
• Such a compact space-saving furnace can be placed on the 600mm x 600mm mobile cart (available in the optional parts list below).

• PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired
• 30 programmable segments for precise control of heating rate, cooling rate and dwell time
• Please click here to learn why SCR is more accurate than SSC (Solid state relay)
• Built-in over-temperature alarm and protection allows for operation without the attendant
• +/- 1 ºC temperature accuracy
• RS485 Communication Port
• Optional:
• The furnace may be operated by PC by installing a control module. Please order an MTS-02 control module at extra cost.
• If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer (laptop) from us to avoid software installation problems. For more information please click here.

• Premier Grade alumina tube made in USA.
• 54 mm (I.D) x 60 mm (O.D) x 790 mm length.
• Four fiberous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating).
• For 60mm tubes, it is recommended that customers purchase two pairs of tube support to prevent tube from bending under high temperature (please click on the last picture to order).

 click here to choose alumina boat

• One pair sealing flange with double silicone high-temperature O-ring is included.
• Two SS needle valves and one dial vacuum gauge are installed with a flange for immediate use.
• Vacuum pressure can reach 50 mTorr by a quality mechanical vacuum pump and 10^^-5 torr by turbo molecular pump. Please click the picture below to see flange assembling details.

• Standard 1/4‘’ Barbed fittings with needle valves.
• For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order.
• Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order.
• Optional: You may also consider using the parts in below to increase the vacuum efficiency
• Please click here to order a digital vacuum gauge for precision vacuum control up to 10^-4 torr (see picture below and click to enlarge)
• You may click here to order flow meter and install in tube flange (see picture below)
• KF25 Stainless steel Bellows
• KF25 Quick Clamps
• You may order a pressure control module ( click picture below-right ) to keep the chamber at constant pressure

• Limited by vacuum pump
• 50 mtorr can be achieved by a mechanical pump
• 10^-5 torr can be reached by molecular pump
•  The vacuum pump is not included, please order separately by clicking here

• 10 feet long 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by click picture below-left
• The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below-right (30A plug)

• CE Certified
• NRTL or CSA certification is available upon request at the extra cost

Application Notes

Click here to learn more about the installation of a gas regulator.

• In order to obtain accurate temperature inside tube furnace, you need to perform a temperature calibration before use, please click here to learn how.
• How to set up ceramic tube and vacuum flange for MTI Tube furnace
• Proper placement of tube blocks
• The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa
• Attention: A pressure regulator must be installed on your input gas tank ( click picture below to review ) and have the output gas pressure set below 3 PSI at all times after opening the gas tank with the gas maintained in a continuous flowing condition. Gas build-up with pressure levels exceeding over 3 PSI may cause irreversible damage to the furnace chamber.
• Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages.
• The flow rate for gases should be limited to < 200 SCCM ( or 200ml/min )
• Vacuum pressures may only be safely used up to 1500°C
