This is a smart sealing assembly for single end 50mm O.D. tube.
SPECIFICATIONS
| Package included |

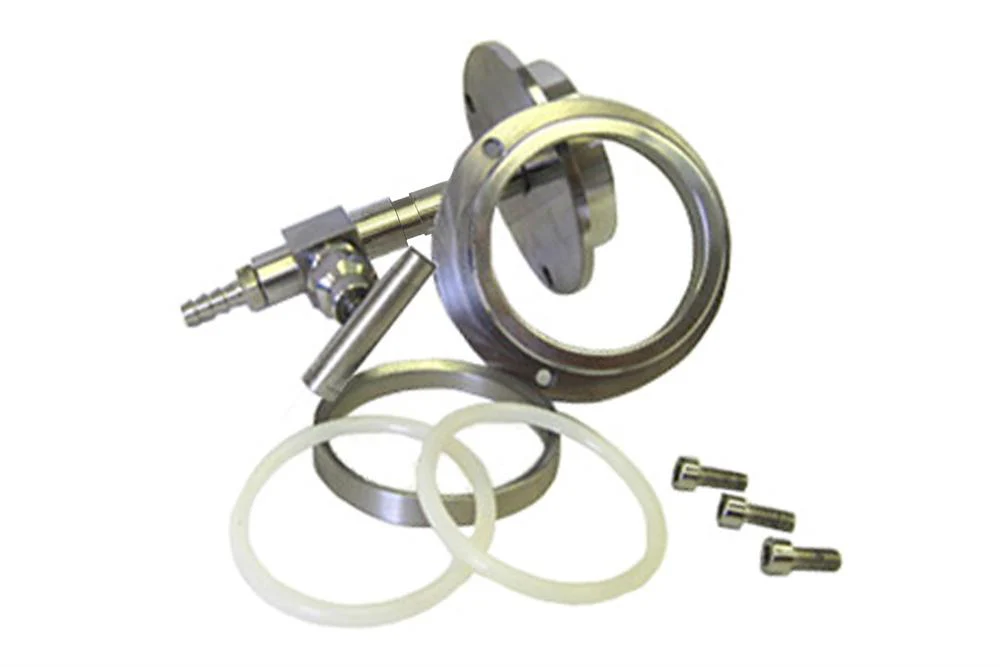

One flange with needle valve, one steel sealing rings, two high-temperature silicone O-rings ( 250ºC Max.) and three screws. |
| Flange Assembling |
|
| Vacuum Level |
10E-5 torr by molecular pump and 10E-2 torr by mechanical pump
|
| Features |
- Made of Stainless Steel with double high-temperature silicon O-rings.
- The end has a vacuum meter with valve.
- Seal tube by tightening screws on the flange without any welding or gluing.
- 1/4" hose connector at the end.
- Excellent for any type of tubing: ceramic, glass, quartz and steel pipe.
- The assembly kit will seal 50-52mm diameter ceramic and quartz tube.
|
| Warning |
- Must put a refractory tube block into the tube( see picture below ) to avoid heat radiation melt silicone O-ring. Please order a ceramic block in related products.
- Please do not over tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs.
- For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
|
| Optional |
Click here to choose flange for tube from 42mm to 11" Vacuum Pump & High Vacuum Station
|
