Note:

If remove the feeder and add hi-pressure fitting,

the Max. working pressure can be increased to 10 MPa.

• Nickel base super-alloy tube with flanges. φ30 OD x φ12 IDX 600 L mm
• One mechanical pressure gauge(-0.1-0.3MPa) pre-installed,

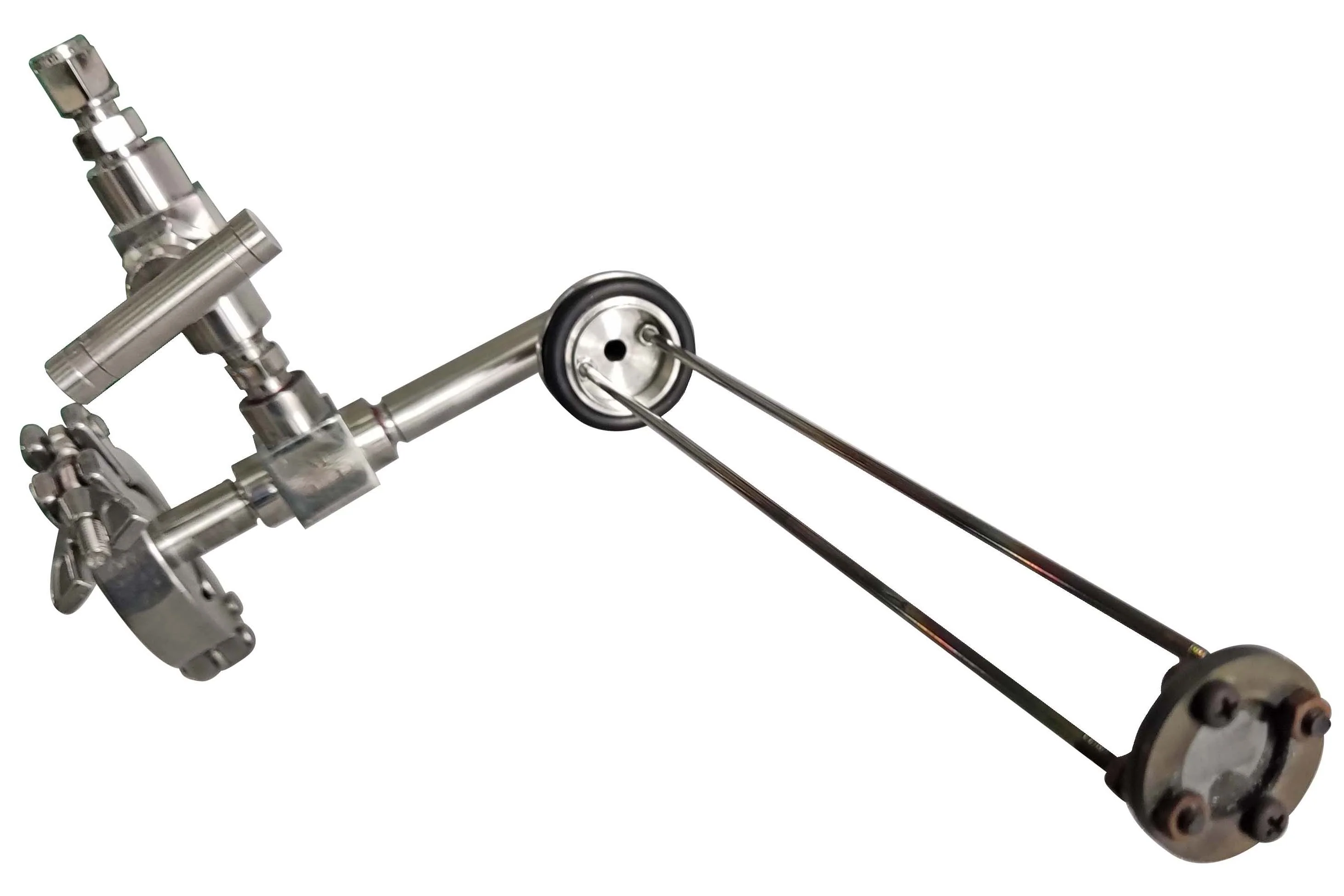

• The pre-installed Safety relief valve will turn on automatically once the pressure reaches 0.3Mpa (Pic.1)
• One Ni alloy mesh is installed inside the tube center to carry two layers of materials (Pic. 2 &3)

Pic. 1Pic. 2Pic.3

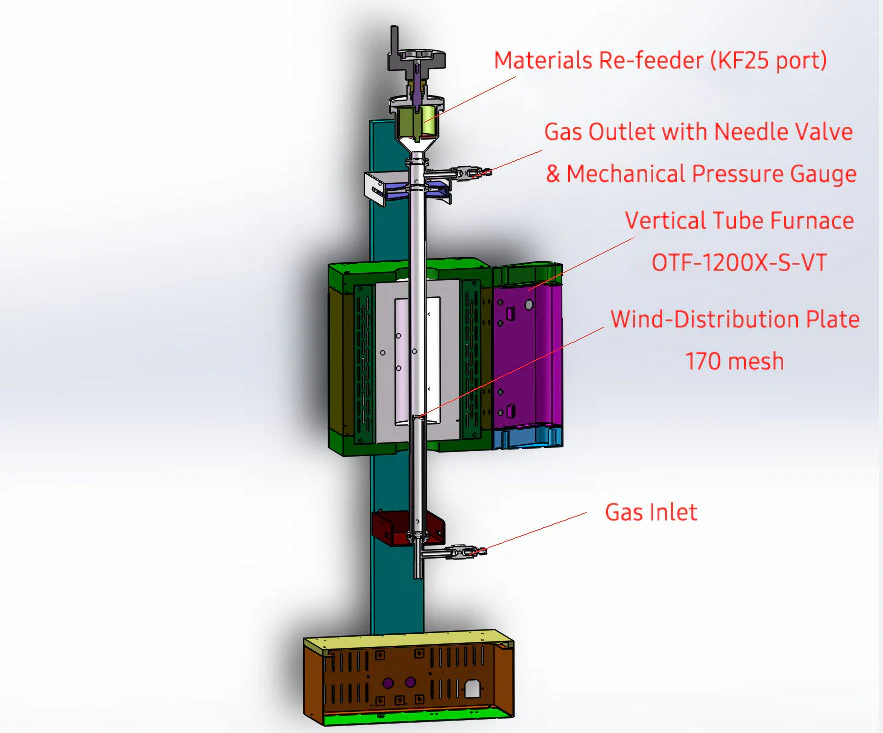

• A re-feeder connects the tube with a KF25 port on the tube( which is limited pressure to Max. 3 bars)
• Three different materials can be filled in the re-feeder at the same time by filling into different zones. (50ml each zone) via KF25 adaptor
•

Temperature Controller

• 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• +/- 1 ºC temperature accuracy.
• Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy

Dimensions

Net Weight

~40 Kg

Laptop & software (Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
• Labview Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, record and plot data for MTI furnaces

Compliance

• CE Certified
• NRTL or CSA certification is available at an extra cost


Warning

• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
