Bench-Top Automatic Pouch Cell Stacking Machine with Hybrid Stacking Modes (Max.110 mm L x 100 mm W), Glovebox Compatible - MSK-111A-PES

Product image 1
1 / 6

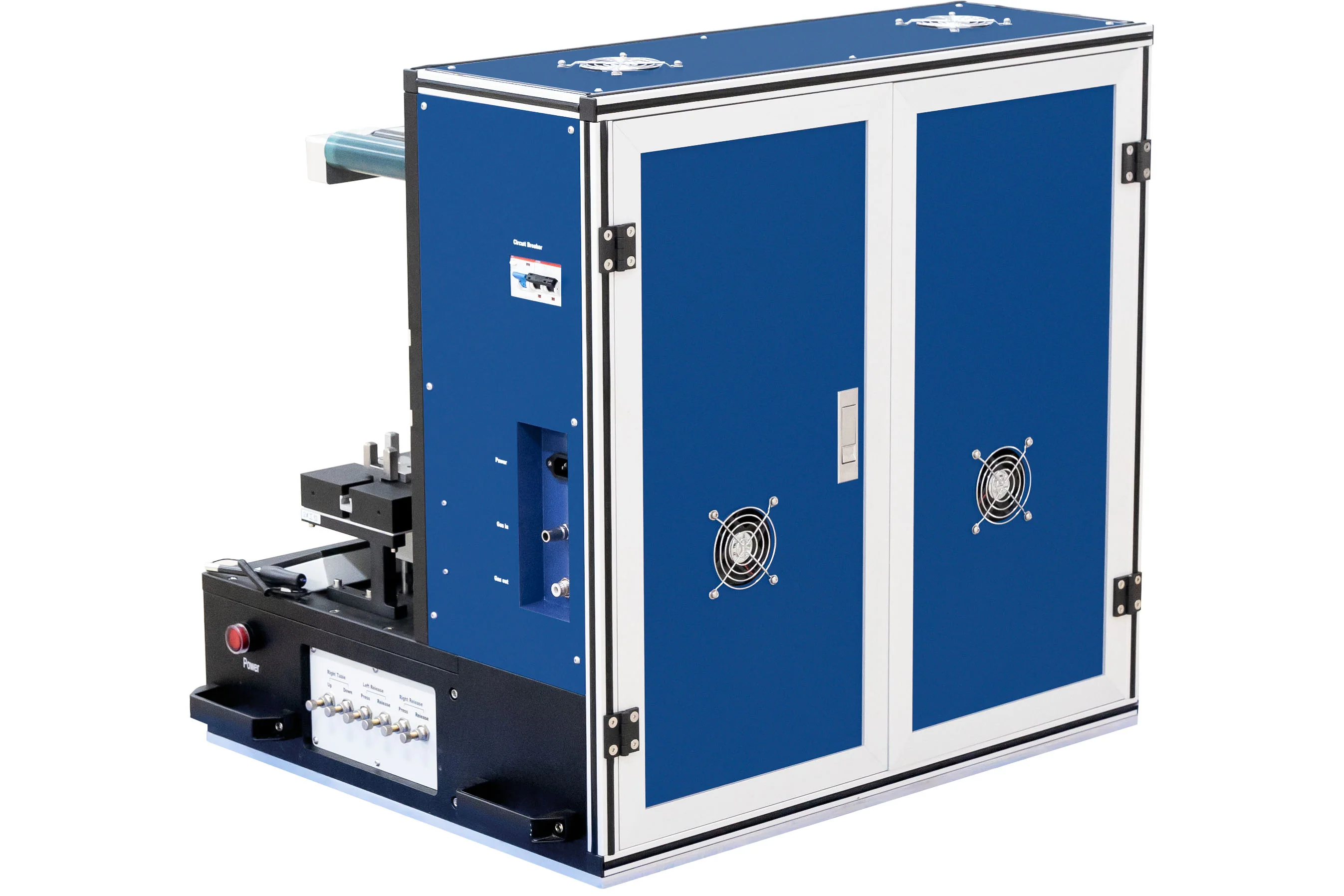

Bench-Top Automatic Pouch Cell Stacking Machine with Hybrid Stacking Modes (Max.110 mm L x 100 mm W), Glovebox Compatible - MSK-111A-PES

MSK-111A-PES is a bench-top high precision automatic stacking machine with hybrid stacking modes (regular Z-type stacking and piece-by-piece sequence stacking). The stacking machine is compatible with glovebox that is filled with Argon gas to ensure no air/humidity exposure during pouch cell electrode stacking.

  • Advanced Features:
    • Compatible for stacking for both regular electrodes and pure Lithium anode electrodes in the Ar glove box or dry room.
    • Hybrid stacking modes of regular Z-type stacking and piece-by-piece sequence stacking for solid-state battery application.
    • PLC Touch Screen Control allows easy control
    • Auto electrode pick-up & stacking via vacuum manipulators
    • Auto separator cutting and feeding for each battery.
    • Adjustable mechanical electrode fixture for accurate electrode positioning
    • Auto tension-controlled rotor for separator feeding
    • One set of 80x50mm stocking die fixtures is included for immediate use.

SPECIFICATIONS:

Working Voltage
  • AC220V 50/60Hz
  • AC 110V version is available upon request
Power
  • 400 W
Stackable Size of electrode
  • Standard stacking electrode size: 62 mm Length x 46 Width (Current Corrector Not Included)
  • Electrode length: 40-100 mm, electrode width: 40-90 mm
Stacking modes
  • Z-type stacking: polymer roll as separator for liquid-type lihitum ion battery.
  • Step-by-Step sequence stacking: Solid-state electrolyte with plate shape as separator.
Stackable Layers
  • Up to 100 layers
Stacking Speed
  • 4 - 6 seconds / layer
Max. Electrode Thickness
  • Piled up thickness < 20 mm
Max Current Corrector Length
  • Max. 15 mm
Aligning Accuracy
  • ±0.3 mm for stacked electrodes
Acceptable Separator Size
Polymer Roll:
  • I.D>3'' (76mm), O.D<9.8'' (250mm)
  • Please choose the corresponding separator size according to the electrode size
  • A roll of separator with width of 60 mm will be provided for expeirmental trial
Solid-state electrolyte plate as separator:
60 * 40mm
Stacking Fixture
  • One set of 62 x 46 mm stacking die fixtures is included for immediate use.
  • If you need different size electrode stacking, please inform us before order. We will make it for you at extra cost. Allowable customization size: Max. 110mm x 100mm; Min. 40 mm x 30 mm; Each size cell needs one mold.
Operation in Glove Box
  • The Pouch Cell Stacking Machine can be operated in the glove box in either N2 and Ar gas

Vacuum Pump
  • An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure
  • 0.5 - 0.8 MPa (Air compressor is not included in the standard package. Please click here to order)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator

Pic 1 MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - EQ-ACPHD-3-LDPic 2
Transparent Cover
  • The transparent cover is optional at an extra cost for the NRTL Certificate
Compliance
  • CE Certified
  • NRTL certificate is available upon request at extra cost
Application Notes
  • This machine can be put in a glovebox and operated in Ar gas.
  • For the Lithium-sulfur research, please send the request for the special technique to do the pure lithium foil stacking.
  • MTI Supplies ready-to-use Cathode & Anode Electrodes and Laminated Aluminum Pouch for your research. Please click the picture below for product details.
  • MTI Supplies Nylon-made Splitable Pouch Cell Casing for Battery R&D, please click the picture below for more details.
