Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662

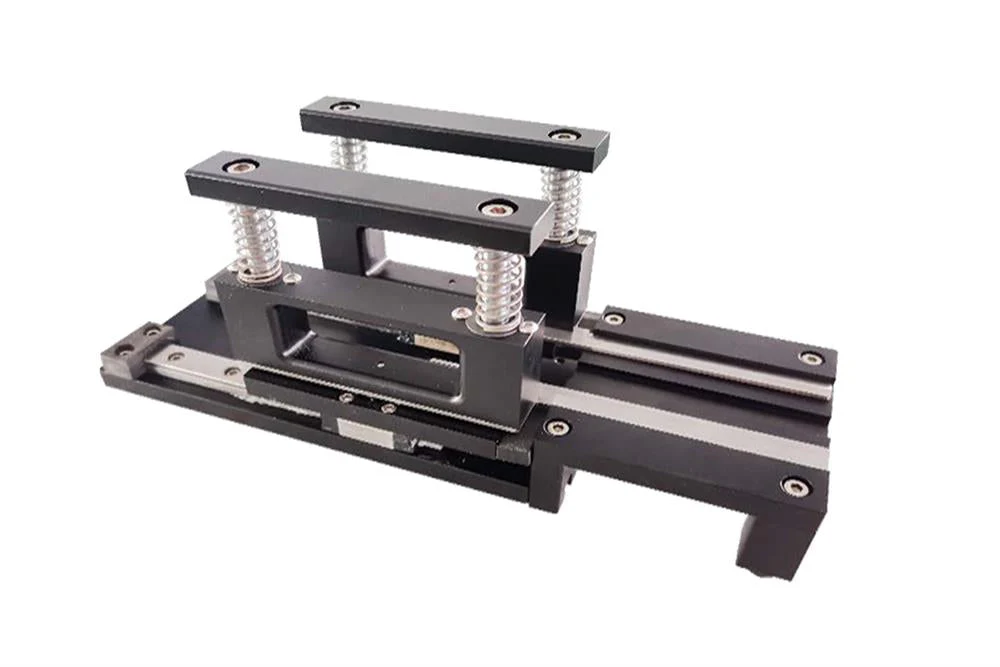

Product image 1
1 / 3

Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662

MSK-111A-PF4662 is a compact manual stacking holder designed for single-layer or multiple-layers pouch cells (L 62 x W 46 mm).
The stacking procedures are shown below:



SPECIFICATIONS:

Feature
  • Z-shaped stacking
  • Auxiliary positioning for the position of the separator
  • Manual placement of the electrodes and separator
  • Auxiliary clamping by the fixture
  • Dedicated fixtures can be customized according to battery size
  • Desktop design with simple operation and easy maintenance
Stacking Accuracy
  • ± 0.5 mm
Stacking Blade
  • Length: 30 - 80 mm
  • Width: 45 mm
  • Thickness: Max. 3 mm
  • Customized widths and lengths are available upon request at an extra cost.
Pouch Cell Electrode Size
  • 62 mm L x 46 mm W
Product Size
  • L 250 mm × W 83 mm × H 129 mm
Net Weight
  • 1.3kg (~3 lbs)



$1,998.00
Manual Stacking Holder for Single-Layer or Multiple-Layer Pouch Cells (L 62 x W 46 mm) - MSK-111A-PF4662—
$1,998.00

Product Information

Shipping & Returns

Description

MSK-111A-PF4662 is a compact manual stacking holder designed for single-layer or multiple-layers pouch cells (L 62 x W 46 mm).
The stacking procedures are shown below:



SPECIFICATIONS:

Feature
  • Z-shaped stacking
  • Auxiliary positioning for the position of the separator
  • Manual placement of the electrodes and separator
  • Auxiliary clamping by the fixture
  • Dedicated fixtures can be customized according to battery size
  • Desktop design with simple operation and easy maintenance
Stacking Accuracy
  • ± 0.5 mm
Stacking Blade
  • Length: 30 - 80 mm
  • Width: 45 mm
  • Thickness: Max. 3 mm
  • Customized widths and lengths are available upon request at an extra cost.
Pouch Cell Electrode Size
  • 62 mm L x 46 mm W
Product Size
  • L 250 mm × W 83 mm × H 129 mm
Net Weight
  • 1.3kg (~3 lbs)
