Heating Sealer for Continuous Top/Side Sealing of Pouch Cells (Max. 190×190×12 mm) - MSK-140-AM

Product image 1
1 / 5

Heating Sealer for Continuous Top/Side Sealing of Pouch Cells (Max. 190×190×12 mm) - MSK-140-AM

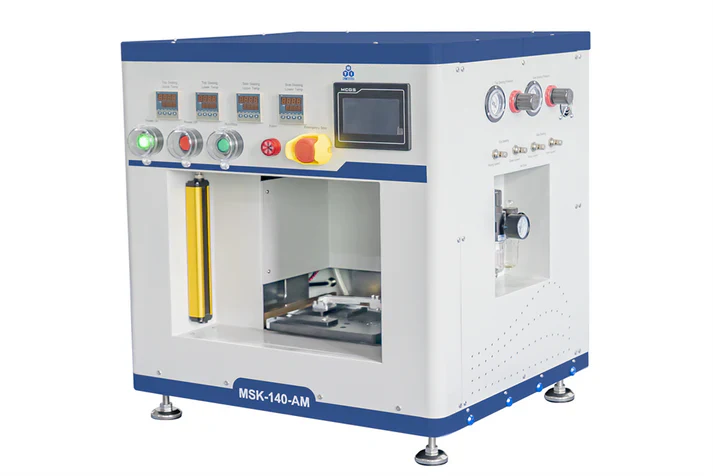

MSK-140-AM is a multifunctional heater sealer for continuous top/side sealing of pouch cell (Max. 190×190×12 mm), which is realized by the special design of dual sets of heating blades and cell fixture. The absolute length of sealing blades is 210 mm and its effective sealing length is 190 mm. The temperature uniformity of sealing blade is ± 2.5 °C. The sealing width of soft top sealing blade and hard side sealing is 3.5 mm 6 mm, respectively.

SPECIFICATIONS:
Power Supply
  • AC220V±10%, Single Phase, 50/60Hz, 2 kW
Pouch Cell Size
  • Max. L190×W190 ×T12 mm; Min: L62×W46 ×T2 mm (Smaller sizes requires customized fixture)



Sealing Length
  • Sealing blade length is 210 mm, the maximum effective sealing length is 190 mm.
Sealing Width
  • Top Sealing: standard soft sealing width is 3.5 mm. Customized sealing width of 2-10 mm is available upon request
  • Side Sealing: standard hard sealing width is 6 mm. Customized sealing width of 2-10 mm is available upon request
Sealing Thickness
  • 0-0.5 mm for pouch cell case
Sealing Accuracy
  • Thickness' uniformity is better than 0.03 mm
Sealing Pressure
  • Max. 160 kgf (corresponds to a gas pressure of 0.6 MPa)
Sealing Temperature
  • Max. 250°C (hard side sealing blade with Teflon tape at 220°C; soft top sealing blade with Teflon tape at 250°C).
  • Normally we recommend 180°C for sealing blades.
Sealing Time
  • 0-99s adjustable, normally 4-8s was recommended.
Production Efficiency
  • 100-200 pcs/h (depends on the proficiency of operators)

Sealing Pressure

pic 1pic 2
  • 0 - 0.7 Mpa (0 - 99 psi) adjustable
  • Air compressor tube size is 8.
  • (2-gallon air compressor is required, but not included. pls order at your store or the related product below )
  • Note: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Air Consumption
  • 0.09 L / Sealing
Certification
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost.
Sealing Die Tape
Adhesive Heat Sealing Tape (for MSK-115/140 series) 300X400mm/sheet, 5 MIL, 260C max. - EQ-MSK140-HST
  • Please click here to order our sealing die tape for repair/spare use.



$16,980.00
