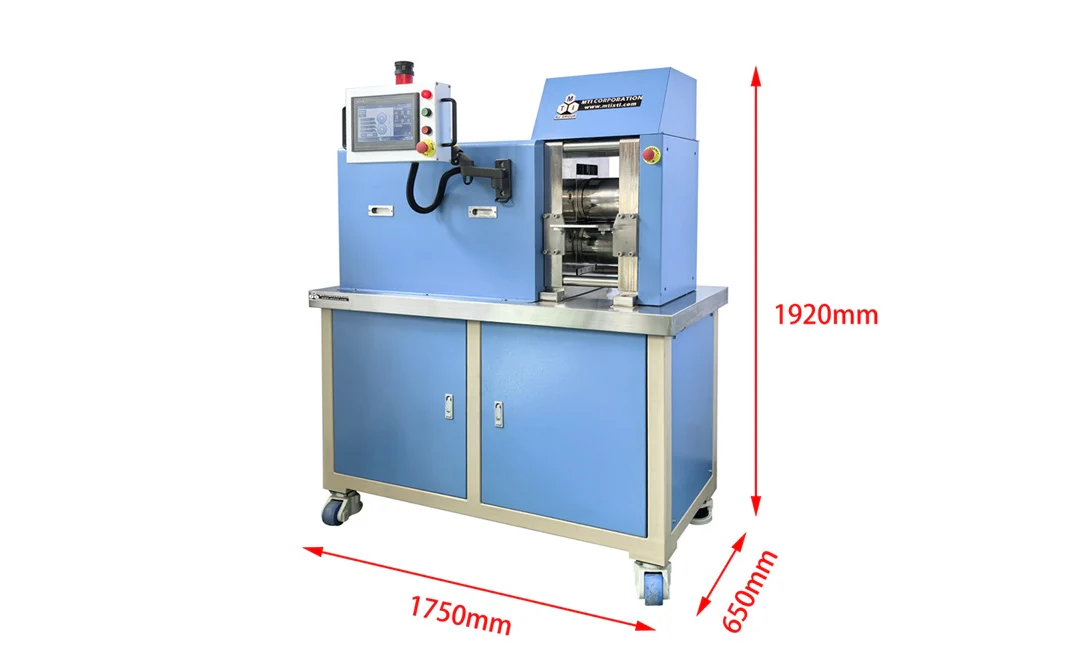

Heavy Duty Rolling Press w/ Automatic Control of Prolling Speed and Gap and Pressing Force Display up to 10 T - MSK-ARP-10T

Product image 1
1 / 5

Heavy Duty Rolling Press w/ Automatic Control of Prolling Speed and Gap and Pressing Force Display up to 10 T - MSK-ARP-10T

This a automatic rolling press, which can adjust rolling speed and gap, as well as display pressing force automatically

SPECIFICATIONS:

Power
  • Input Voltage: 208- 240VAC Three Phase, 50/60Hz,
  • 2.5KW
Control Panel

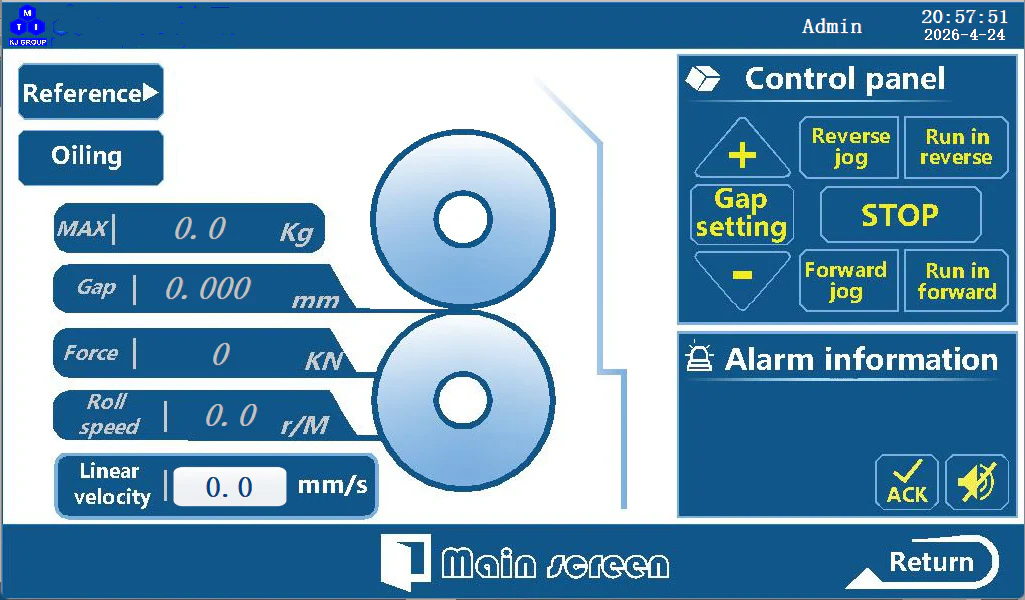

  • Touch screen control panel to set all pressing parameters:
    • Rolling speed
    • Rolling gap for each time
    • Display pressing force
Rollers
  • Roller materials: Hardening Cr12MoV
  • Roller size: 165 mm dia. x 170 mm width (~6.5 " Dia x 6.7" width )
  • Recommended sample size < 60 mm wide
  • Hardness: HRC 60-62
  • Rolling thickness: 0.1 - 30 mm adjustable
Rolling Speed
    • Linear Speed: 10-170mm/s
    Compliance
    • NRTL certification is available upon request at an extra cost.



    Update

    Automatic IR Heated reversible Hot Rolling System up to 32 Samples is available for studying the effect of rolling deformation on the strength of alloys



    $34,999.65

    Original: $99,999.00

    -65%
    Heavy Duty Rolling Press w/ Automatic Control of Prolling Speed and Gap and Pressing Force Display up to 10 T - MSK-ARP-10T—

    $99,999.00

    $34,999.65

    Product Information

    Shipping & Returns

    Description

    This a automatic rolling press, which can adjust rolling speed and gap, as well as display pressing force automatically

    SPECIFICATIONS:

    Power
    • Input Voltage: 208- 240VAC Three Phase, 50/60Hz,
    • 2.5KW
    Control Panel
    • Touch screen control panel to set all pressing parameters:
      • Rolling speed
      • Rolling gap for each time
      • Display pressing force
    Rollers
    • Roller materials: Hardening Cr12MoV
    • Roller size: 165 mm dia. x 170 mm width (~6.5 " Dia x 6.7" width )
    • Recommended sample size < 60 mm wide
    • Hardness: HRC 60-62
    • Rolling thickness: 0.1 - 30 mm adjustable
    Rolling Speed
      • Linear Speed: 10-170mm/s
      Compliance
      • NRTL certification is available upon request at an extra cost.



      Update

      Automatic IR Heated reversible Hot Rolling System up to 32 Samples is available for studying the effect of rolling deformation on the strength of alloys
