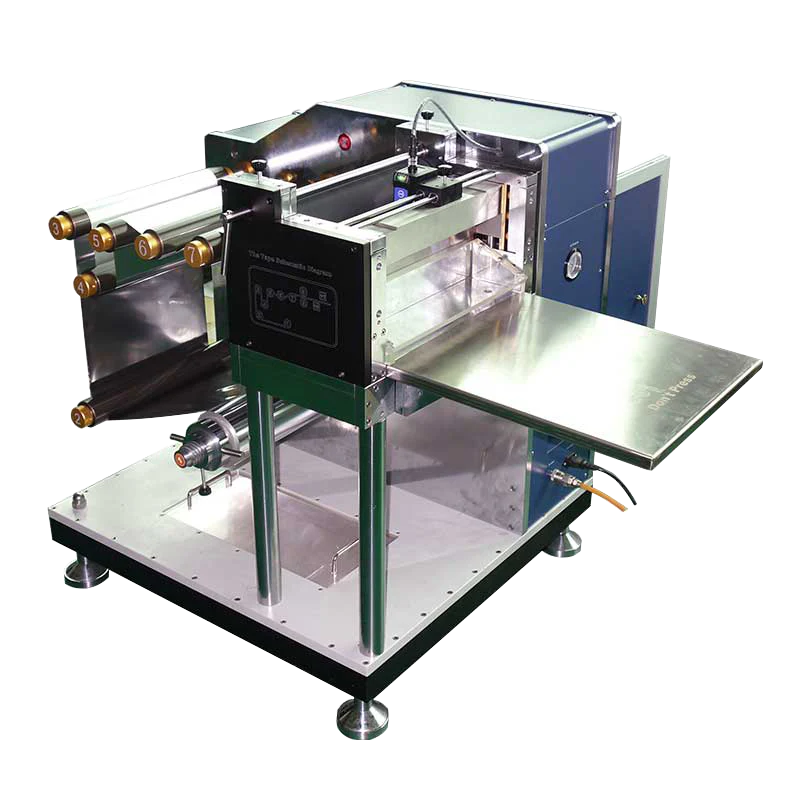

Large Automatic Roll-to-Sheet Slitting Machine for Electrodes Cutting (Max. Width of 400 mm) - MSK-520-L

Product image 1

Large Automatic Roll-to-Sheet Slitting Machine for Electrodes Cutting (Max. Width of 400 mm) - MSK-520-L

Outstanding Features:

  • Auto-tension control.
  • The cutting width of electrodes: 10 mm - 400 mm
  • Continuous fixed-length cutting mode
  • Minor adjustment at the cutting edge for the continuous cutting
  • PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520 since September 2019.

SPECIFICATIONS:

Working Voltage
  • AC220V±10%, single phase, 50/60Hz
Max. Power Consumption
  • 500 W
Acceptable Electrode Width
  • 10 mm - 400 mm
Cutting Accuracy
  • +/- 0.3mm
Tension Control
  • Minimal 10 N
Linear Speed Allowed for Cutting
  • 1 - 5 m/min
Acceptable Electrode Roll Size
  • Maximum O.D of 250 mm
Compress Air Requirement
  • 0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  • pic1pic2
Warranty
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty



$26,998.00
Large Automatic Roll-to-Sheet Slitting Machine for Electrodes Cutting (Max. Width of 400 mm) - MSK-520-L—
$26,998.00

Product Information

Shipping & Returns

Description

Outstanding Features:

  • Auto-tension control.
  • The cutting width of electrodes: 10 mm - 400 mm
  • Continuous fixed-length cutting mode
  • Minor adjustment at the cutting edge for the continuous cutting
  • PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520 since September 2019.

SPECIFICATIONS:

Working Voltage
  • AC220V±10%, single phase, 50/60Hz
Max. Power Consumption
  • 500 W
Acceptable Electrode Width
  • 10 mm - 400 mm
Cutting Accuracy
  • +/- 0.3mm
Tension Control
  • Minimal 10 N
Linear Speed Allowed for Cutting
  • 1 - 5 m/min
Acceptable Electrode Roll Size
  • Maximum O.D of 250 mm
Compress Air Requirement
  • 0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  • pic1pic2
Warranty
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
