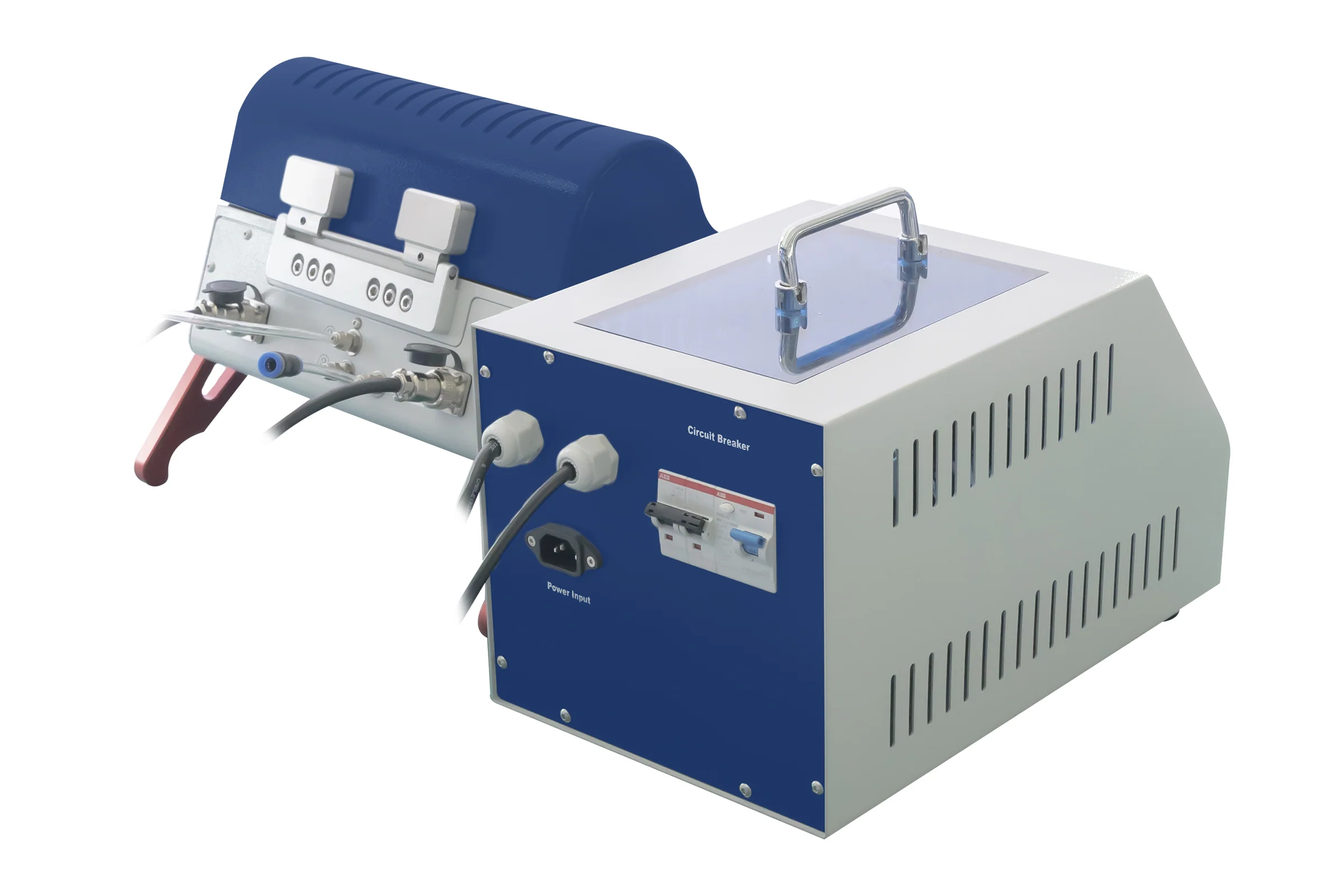

Mini 4-in-1 Vacuum Sealer for Pouch Cell (100x100x12 mm Max.) Antechamber Acceptable - MSK-115A-SS

Product image 1
1 / 4

Mini 4-in-1 Vacuum Sealer for Pouch Cell (100x100x12 mm Max.) Antechamber Acceptable - MSK-115A-SS

 MSK-115A-SS is a mini 4-in-1 sealer for top/side & final vacuum standing & sealing for pouch cell with a maximum size of L100 x W100 x H12 (mm). The sealer can be put into the glovebox through the standard antechamber, and operated in Ar gas.

  • Four functions: Side Sealing, Purging/cleaning, Vacuum Standing, and Vacuum Sealing.
  • One KF40 feedthrough with all necessary power cables gas tubes and vacuum pipes is included to connect the sealer to the devices outside the glovebox
  • A vacuumable tube is included to help put all cables and tubes with KF40 into the glovebox without any air leaking.
  • The purging function will remove the oxygen and moisture in a cell, which is beneficial for forming a superior SEI layer during the initial cycling of solid-state pouch cell batteries.
  • A perfect lab tool for lab research of liquid, semi-solid, or solid-state pouch cell batteries, as well as metal-gas (eg: Li-O2, Li-CO2, Al-CO2) batteries.

SPECIFICATIONS:

Power
  • AC110V, Single-phase, 50/60Hz, 800W
  • AC200V is available upon request
Air Pressure
  • 0.50.8MPa compressed air or inert gas is required for the operation
Sealing Temperature
  • 250ºC Max. ( +/- 2 ºC) for the top and bottom sealing die. (We normally recommend 180-200ºC for pouch cell sealing)
Heated sealing time
  • 0 ~ 90 seconds adjustable (5 ~ 6 seconds recommended)
Inert Gas Cleaning
  • Cleaning with Argon gas and slightly positive pressure before vacuum standing can effectively remove oxygen content and improve the wetting and filtration effect at solid-solid and solid-liquid interfaces of electrodes.
  • Cleaning cycle number: 0-90 adjustable
  • Cleaning pressure: 0~0.8KPa adjustable
Vacuum Standing and Sealing
  • Vacuum level: Max. not less than -95KPa (The vacuum degree can reach mTorr level by using a mechanical vacuum pump)
  • Vacuum standing time: 0~900 seconds adjustable
  • Vacuum pre-standing time: 0~90 seconds adjustable
  • The vacuum pump is not included. Please click here to order at MTI.
Front and Back Panels
  • A PLC screen was used to set the sealing parameters and show the operation status.
  • Inert gas port, compressive gas port, and vacuum ports are installed on the back panel
  • You need an air compressor to operate (not included, please click Pic. 1 to order)
  • You need an inert gas tank to purge the chamber(not included)
  • The vacuum pump is required for final sealing (not included, please click Pic 2 to order)
  • Pic. 1 Pic. 2
Sealing Die
  • Max battery size: L100 x W100 x Thickness 12 ( mm)
  • Heatable sealing blade: 250oC Max with precision digital temperature control
  • Sealing width: 4 mm (The sealing width could be customizable)
  • Sealing length: 100 mm Max.
  • Sealing evenness: ≤ 0.02 mm overlapping precision of top and bottom sealing dies
  • Sealing die type: Sealing blade with rubber buffer (soft-sealing)
Sealing Pressure
  • Pressure: 393N Max.
  • Consumption: ~ 0.04 L compressed air per sealing
  • Please use high-purity inert gasses (Ar or N2), when operating in the glove box. Using Air Compressor driven when operating outside the glove box.
  • Please note that the air compressor is not included and is not recommended for use in the glove box.
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Structure
  • It is easily transferred into the glovebox from the antechamber.
  • A flanged tube can be installed to transfer the wires to the glove box without any gas leaks, which is available at extra cost.

Compliance
  • CE Certified
  • NRTL Certification is available upon request at an extra cost
