Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L

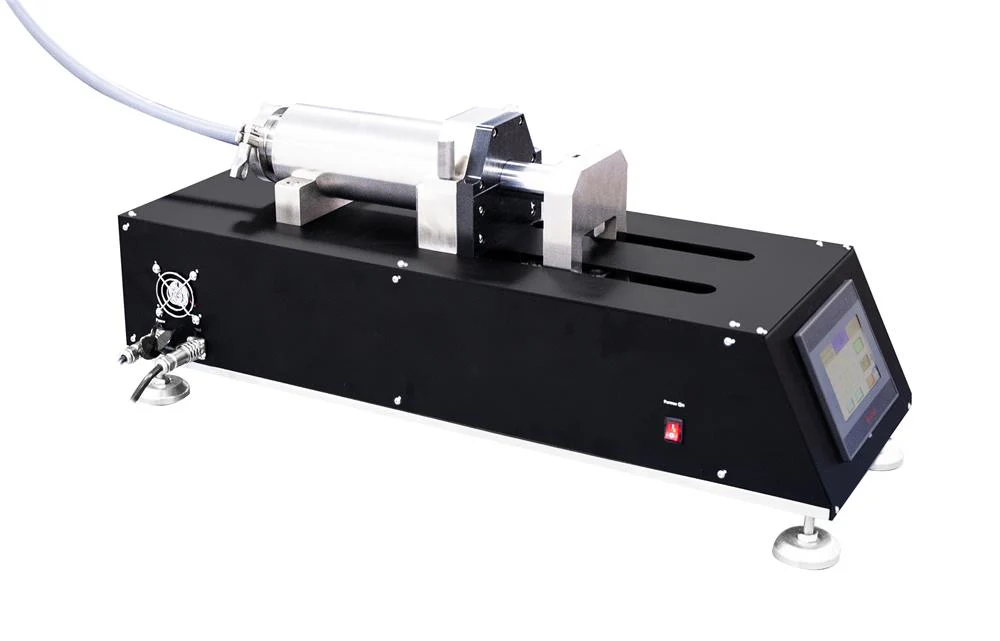

Product image 1
1 / 6

Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L

MSK-151-L500 is a precision slurry feeding device with 500ml or 1000 mL stainless steel syringe for Li-ion battery electrode coating process.
It is compatible with the MTI machines MSK-AFA-200, MSK-AFA-MC200, and MSK-AFA-300-LD.



SPECIFICATIONS:

Products

 MSK-151-L500 MSK-151-L1000

Features
  • High-precision control
  • Easy-to-use control panel screen
  • Adjustable movement speed
  • Equipped with a 500 ml stainless steel slurry syringe
Power
  • Single Phase, NRTL listed AC 100 - 240 V In & DC 24 V Out power adapter is included
  • 120W
Speed
  • Running Speed: 0.17 - 20 ml/s
  • Plunger Speed: 0.05-5mm/s adjustable
  • Accuracy: +/- 0.05 ml
  • Running Speed: 0.17 - 20 ml/s
  • Accuracy: +/- 0.05 ml
Syringe pump
  • Material: 316 stainless steel
  • Size: I.D. 65mm, L = 165 mm
  • Capacity: 500ml Volume
  •  Material: 316 stainless steel
  • Capacity: 1L Volume
Touch-Screen Control Panel
  • Pump speed is adjustable
  • Pre-setting injection volume
  • Display the current injection volume
  • Edit other parameters in the system
  • Manual operation is also available
Options To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter and dispersing machine to find the best parameter for your coating,

Applications notes
 		 Such a slurry feeder can be used with MTI equipment such as MSK-AFA-MC200 and MSK-AFA-300-LD.
to achieve higher production efficiency.


Select Volume
From $1,959.30

Original: $5,598.00

-65%
Digital-Controlled Slurry Feeding Device, 500 or 1000 ml - MSK-151-L—

$5,598.00

$1,959.30

Product Information

Shipping & Returns

Description

MSK-151-L500 is a precision slurry feeding device with 500ml or 1000 mL stainless steel syringe for Li-ion battery electrode coating process.
It is compatible with the MTI machines MSK-AFA-200, MSK-AFA-MC200, and MSK-AFA-300-LD.



SPECIFICATIONS:

Products

 MSK-151-L500 MSK-151-L1000

Features
  • High-precision control
  • Easy-to-use control panel screen
  • Adjustable movement speed
  • Equipped with a 500 ml stainless steel slurry syringe
Power
  • Single Phase, NRTL listed AC 100 - 240 V In & DC 24 V Out power adapter is included
  • 120W
Speed
  • Running Speed: 0.17 - 20 ml/s
  • Plunger Speed: 0.05-5mm/s adjustable
  • Accuracy: +/- 0.05 ml
  • Running Speed: 0.17 - 20 ml/s
  • Accuracy: +/- 0.05 ml
Syringe pump
  • Material: 316 stainless steel
  • Size: I.D. 65mm, L = 165 mm
  • Capacity: 500ml Volume
  •  Material: 316 stainless steel
  • Capacity: 1L Volume
Touch-Screen Control Panel
  • Pump speed is adjustable
  • Pre-setting injection volume
  • Display the current injection volume
  • Edit other parameters in the system
  • Manual operation is also available
Options To achieve a better coating by the slot die, the viscosity and dispersion of the slurry are significant. Please click the picture below to order a viscosity meter and dispersing machine to find the best parameter for your coating,

Applications notes
 		 Such a slurry feeder can be used with MTI equipment such as MSK-AFA-MC200 and MSK-AFA-300-LD.
to achieve higher production efficiency.
