Power Requirement

• 100 - 240VAC ( 50/60Hz), 100W

Structure & Material

• Materials:
• Chamber: 1.5 mm thick brushed SS304 with tensile strength > 500 Mpa
• Exterior: 3 mm thickness cold rolled steel with tensile strength > 400 Mpa

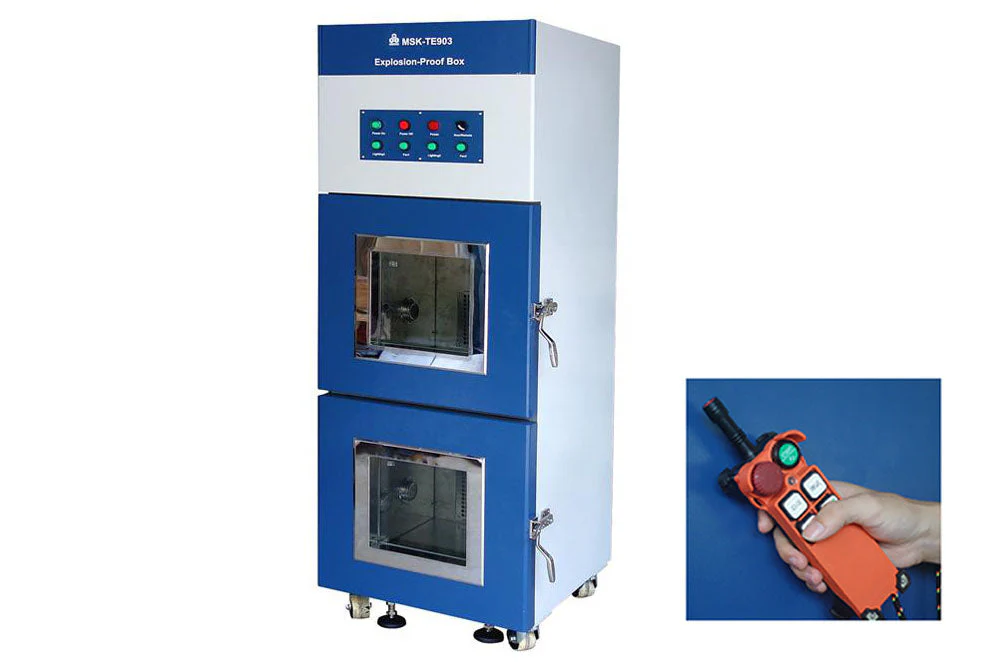

• Structure: Two anti-explosion chambers, top and bottom
• Chamber Size: 500mm x 500mm x 500mm (x2)
• Testing Cables: Two 3-meter-long cables with clamps are included, Max. current rating is 30A
• Ports: Each chamber has two 2" diameter holes reserved for electric cables of battery testing equipment
• Safety door: The pressure relief door is built on the back of each chamber. In the event of a battery explosion, the door will open and release pressure.

Venting Fan

• A venting port with a high-quality exhaust fan is installed in the back chamber which shall be connected to your venting system. (ducting and exhaust system are not included )
• Warning: Must keep a venting fan and exhaust system running during battery testing to avoid pressure build-up in the case of a battery explosion.
• Venting fan: 24 VDC, 3425 RPM, 235 CFM, 54.3 dBA
• Centrifugal in-line exhaust fan with aluminum flex duct connection is recommended but not included.
• If you need to control chamber temperature between 23oC - 46oC, we may help you to install a spot air conditioner ad the picture below, at the extra cost

Remote Control

• A wireless hand-held remote controller can operate the machine within 10 10-meter distance for safe operation.

Lighting

• Anti-explosion LED light (30W) is installed inside of each chamber.
• The angle of illumination is adjustable up to 90°

Electrode Holder & Cables

• Two sets of battery electrode clamps with 10 AWG gauge cables (30A Max.) are included for easy & quick connections to batteries

Mobility

• Four mobile wheels are installed at the bottom for easy transportation

• A smart battery analyzer for use as the source of over-charging and forced discharging is available here:

• IEC 62133 Safety Test Standard Details
• Please click here to review the UN38.3 Li-Ion Battery Transportation Safety Testing Requirements
• Other equipment for testing of IEC 62133 or UN38.3 Standards can be found at MTI online web.
