1100°C Split Vertical Tube Furnace with 80mm Quartz Tube & SS Vacuum Flanges - OTF-1200X-VT-80

1100°C Split Vertical Tube Furnace with 80mm Quartz Tube & SS Vacuum Flanges - OTF-1200X-VT-80

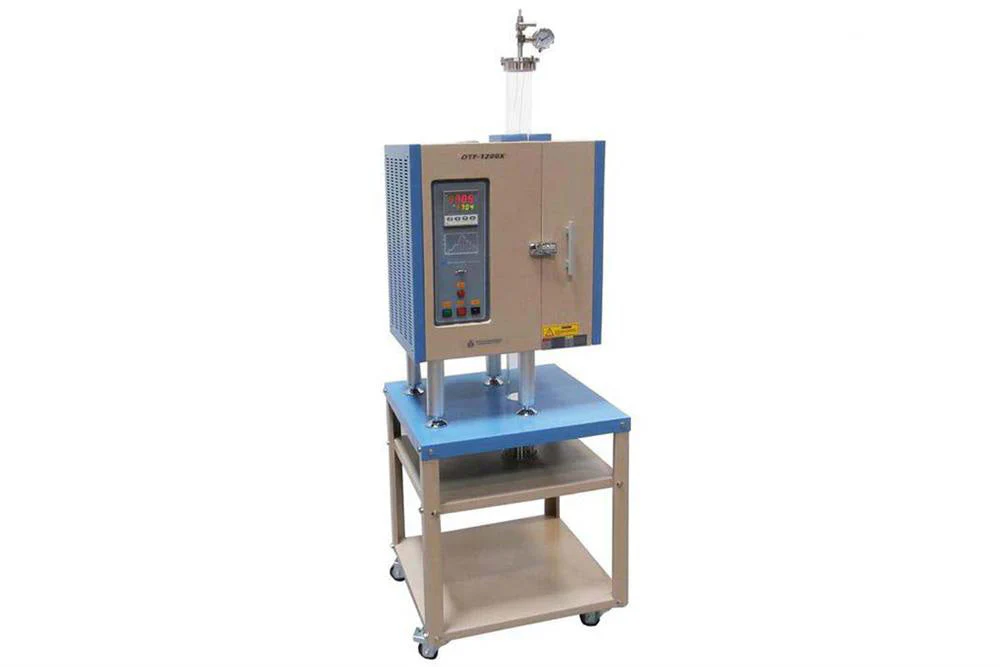

OTF-1200X-VT-80 is a split Vertical Tube Furnace with vacuum sealed 80mm diameter quartz tube, which can achieve faster sample heating and quenching in the vacuum or flowing gas. The precision temperature controller can provide 30 segments of heating and cooling steps with +/- 1°C accuracy. It is an ideal furnace for making quenching tests and temperature measurements. The vertical tube furnace is installed in a heavy-duty mobile for easy moving.

SPECIFICATIONS:

Furnace Structure	Double layer steel structure with air cooling to keep case temperature <65°C High purity fibrous alumina insulation with the Special coating to ensure max. energy saving
Power	6KW
Voltage	AC 208-240V Single Phase, 50/60 Hz
Max. Temperature	1100°C(<1 hr)
Continuous Temperature	1000°C for each zone
Max. Heating Rate	<= 20°C/min.
Processing Tube	High purity quartz tube with 1200 °C max. working temperature Size: OD: 80 mm,x ID. 72 mm x 1000mm Length Upgrade note:( Processing tube can be replaced by mullite tube from 60 mm OD to 100 mm OD at extra cost, then furnace can be used up to 1250°C )
Heating Zone length	440mm (single zone)
Constant Temperature Zone	150mm (+/-1°C)
Temperature Accuracy	+/- 1°C
Temperature Controller	MET certified 30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection. Over-temperature protection and alarm allow for operation without attendants (s). +/- 1 ºC temperature accuracy. RS485 Communication Port. Advanced Temperature Control (Optional) MTS01 Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at an extra cost. Click for detailed information about the MTS01 software kit. You may upgrade the temperature controller to the Eurotherm Temperature Controller, which is fully compatible with Eurotherm iTools software. This package includes a Eurotherm 3004 programmer, a communication cable (RS485 - USB), and a software USB. Click the pic below to view the full spec of the Eurotherm 3004 temperature controller.
Vacuum & Fitting Ports	Two stainless steel flanges with a vacuum gauge and valves included Gas outlet ( vacuum port ) on top with 1/4" barb connector Gas inlet on the bottom with 1/4" barb connector A hook ring is welded inside the top flange for hanging a thermal block or crucible by wire You may choose any connectors (KF25D adapter, 1/4'' Swagelok Tube Fitting) as shown in the picture left at extra cost
Vacuum Level	10E-2 Torr by a mechanical vacuum pump. 10E-5 Torr by the molecular pump. Leak rate < 5 mTorr / min.
Heating Element	1300°C Fe-Cr-Al Alloy doped by Mo
Dimensions	550mm(L) x 380mm(W) x 520mm(H) exclude mobile cart 600mm(L) x 600mm(W) x 1200(H) install with mobile cart
Net Weight	About 80kg (excluding mobile cart)
Shipping size	48"(L) x 40" (W) x 72''(H)
Shipping weight	400lbs
Warranty	One-year limited warranty with lifetime support (Consumable parts such as processing tubes and o-rings are not covered by the warranty, please order the replacement at related products below.)
Laptop, software (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) *LabVIEW-Based Temperature Control System (MTS01)*enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available at extra cost.
Application Notes ( We may help you to build a customized flange to meet your application at extra cost )	Customers may calibrate temperature before use to obtain accurate temperature inside the tube furnace, please click here to learn how. Please click the picture below to learn how to quench samples in gas flow and vacuum The furnace ca be modified into an HPCVD ( hybrid physical-chemical vapor deposition ) furnace via DIY a sample susceptor ( click picture below-right to see how ) Approach#1: Traditional wire cut and free-falling Approach#2: Electromagnetic release and free-falling. Please contact us for the customization of this feature.
Warning Click here to learn the install of a gas regulator	The tube furnaces with quartz tubes are designed for use under vacuum and low pressure <0.2 bars / 3 psi / 0.02 MPa Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator. Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C

$4,198.25

Original: $11,995.00

-65%

1100°C Split Vertical Tube Furnace with 80mm Quartz Tube & SS Vacuum Flanges - OTF-1200X-VT-80—

$11,995.00

$4,198.25

Original: $11,995.00

-65%

1100°C Split Vertical Tube Furnace with 80mm Quartz Tube & SS Vacuum Flanges - OTF-1200X-VT-80—

$11,995.00

$4,198.25
