1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD

Product image 1
1 / 4

1-2" 1250C Compact Split Tube Furnace with 8" Heating Zone & Programmable Controller - OTF-1200X-S-NT-LD

OTF-1200X-S-NT is a compact and energy-saving (1200W power consumption) split tube furnace with a max. the working temperature of 1250°C. The built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy. The furnace does not include a working tube. You may order a 2" quartz tube, vacuum flange, and refractory ceramic blocks based on your application needs.

SPECIFICATIONS



Furnace Structure
  • Double-layer steel structure with air cooling.
  • High-purity Al2O3 fibrous insulation with Max. energy saving.

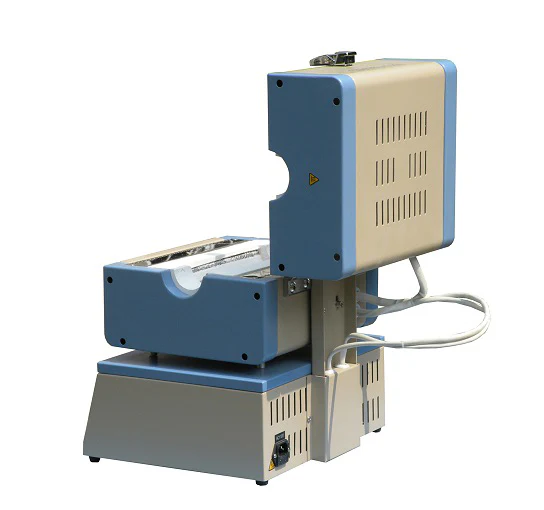

  • Split cover for easy tube replacement.
  • Adopts 1" or 2" O.D processing tubes.
  • Heating module is replaceable (Pic. 4)
Power
  • 110VAC (Single Phase 220VAC can be selected in the options bar)
  • 1.2 KW
Continuous Temperature

v.s.

Processing Tube
  • 1200°C (continuous) with Mullite tube 1-2 " dia
  • 1100°C (continuous) with Quartz tube 1- 2" dia
  • Please click Pic below to choose the processing tube (Length > 450 mm)
  • If using a 25mm O.D tube, please also get an adaptor
Quartz Tubes Quartz tube Mullite Tubes Mullite tube Stainless Steel Sealing Flange Assembly for 1Vacuum Flange

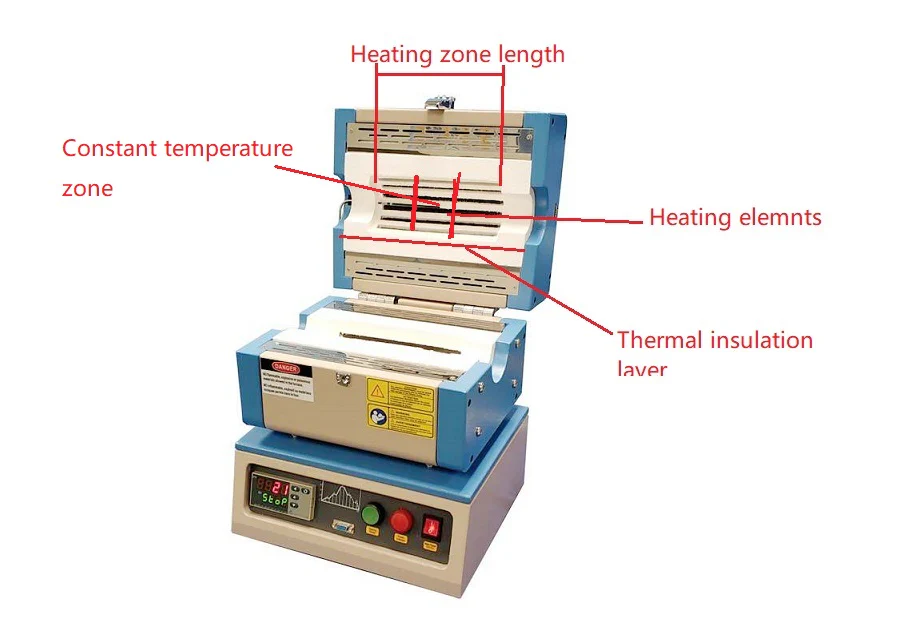

Heating Zone length
  • 8" (200mm), single zone. The following picture shows the temp. distribution across the heating zone, please click to enlarge.
  • Constant Temp. Zone: 2.3" (60mm) (+/-1°C) @ 900 °C
Temperature Controller
  • PID automatic control with 30 steps programmable.
  • Built-in Over Temperature and Thermocouple Failure Protection
  • Max. Heating Rate: <= 10 °C/min
  • Temperature Accuracy +/- 1°C
Dimensions

With lid closed: 350mm×390mm×400mm (L x W x H)
With lid open: 350mm×440mm×560mm (L x W x H)
Net Weight
18 Kg
Shipping Package Size
40 x 28 x 33 inches (W x L x H)
Shipping Weight
100 lbs
Warranty
 One-year limited warranty with lifetime support
Laptop, software & WiFi Control (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview-Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Compliance
  • CE Certified and UL 6010 standard ready
  • NRTL / CSA Certification is available upon request, additional charges will apply
Application Notes & Warning
  • Tube furnaces with quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa. Vacuum pressures may only be safely used up to 1000°CThe flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • How to set up a ceramic tube and vacuum flange for MTI tube furnaces.
  • For safety, you may consider putting the small tube furnace inside a fume hood. ( click picture left to see )



Select Voltage & Chamber Diameter for Tube
