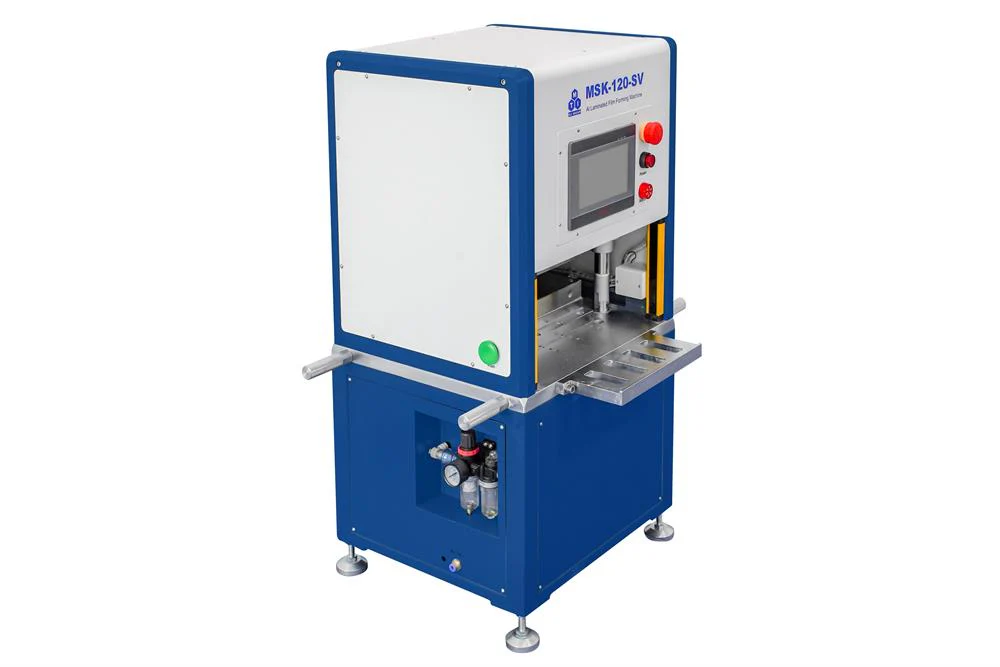

MSK-120-SV is a gas-driven and electrical Aluminum Laminated Films pouch case-forming machine with Automatic Depth Adjustment.

Features	Gas/Electrical driven. The pouch cell forming depth, punching pressure, and speed are programmable Case forming die set with high strength and precision. Display for case forming time PLC Control
Voltage and Power	AC 110V or AC 220V, 50/60 Hz (Please select from product options) Maximum power: 1,000 W
Standard Die Size	Standard die size: 61mm (L) x 47mm (W) which perfectly fits the electrodes cut by MSK-180 Recommended pouch cell case size: 182 mm (L) at least x 137 mm (W), one aluminum laminated case after forming could be folded
Customized Die Size	One aluminum laminated case after forming could be folded, the maximum dimension: 70 mm (L) x 110 mm (W) with an airbag One formed aluminum laminated case + one flat aluminum laminated case With the airbag, the maximum dimension: is 120 mm (L) x 110 mm (W) Without the airbag, the maximum dimension: is 120 mm (L) x 140 mm (W)
Air Pressure Requirement	0.5 - 0.8 MPa Air or inert gas Air Compressor is not included. Please click here to order. Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.  pic1  pic2
Max. Cup Depth	Maximum 6.0 mm Precision: ± 0.05 mm
Max. Punching Pressure	1 metric ton
Al Laminated Film	The thickness of Aluminum Laminated Film: 0.10 mm - 0.20 mm is acceptable Please click the picture below to order Aluminum Laminated Film.
Die Installation Warning	The tolerance of precision die is very little; Misalignment will result in die damage.  Following the operation manual when installing the die. MTI is not responsible for the damage caused by desperation.
