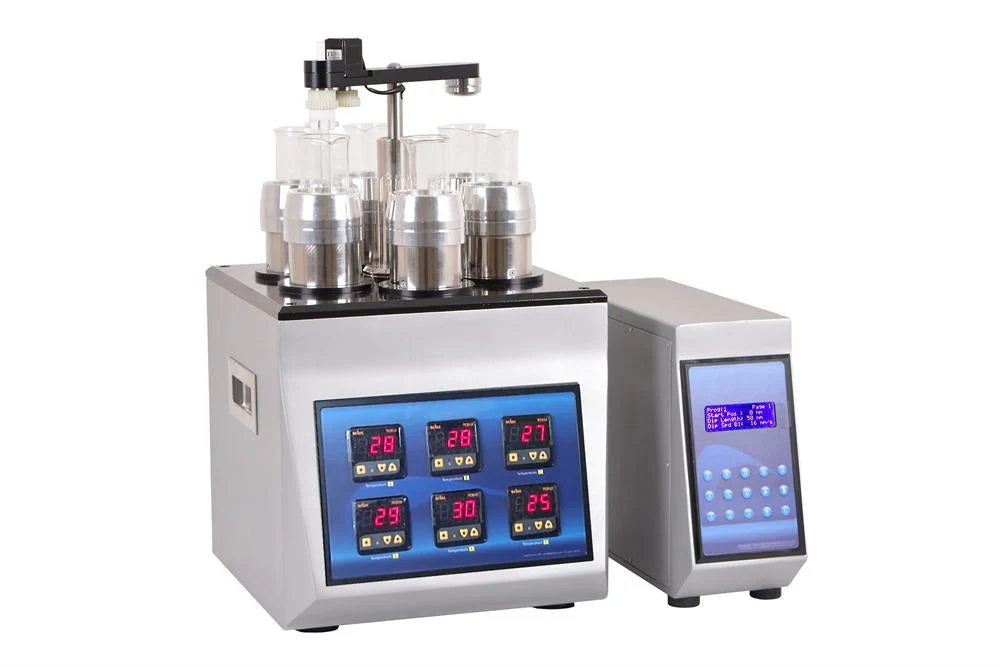

PTL-SC-6S-LD Coating System has been designed to automate the entire process to avoid operator fatigue and errors associated with it. In the manual SILAR process, the operator has to perform hundreds of repetitive dipping into the solution and water. It is very difficult to control dip duration and number of dips in a manual process which can last hours. In the automated unit, the operator needs just to clamp the substrate into the holder and program the controller with required dip cycles and duration.

PTL-SC-6S-LD has a motorized substrate holder. The dipping speed, stirring speed, dip duration, retrieval speed, and dry duration can be set for each beaker. Six hot plates can be set at different temperatures independently up to 350°C from ambient.

In this technique, the thin film is deposited on a glass substrate following a chemical technique called successive ion layer adsorption and reaction (SILAR). The technique involves multiple dipping of the substrate in a given solution and deionized water, the temperature of both can vary from case to case.

Power Input	208-240VAC, 50/ 60Hz 1000 W max (with heater) For use at 110VAC, please click the Pic left to order a 1500W transformer
Actuator	Stepper motor
Drive Mechanism	Lead screw
Dip Duration	0 - 99 seconds / minutes / hours
Speed Control	Drawing speed adjustable from a digital panel from 2 microns/sec to 9000 micron/sec ( Max.)
Number of Dips	1 - 999
Hot Plate Temperature	Ambient to 350°C for each hot plate ( 6 in total )
Beaker	Recommended 100mL beaker with 50mm OD Beaker is not included in the package
Stirrer Speed	1 - 200 rpm
Thermocouple	6 K-type thermocouple built-in
Extension Sample Clip	One extension sample clip can be used if you need to dip a small sample into the larger beaker. Size: supporting rod 10cm long; clipping head: 2cm long.
Stroke length Max.	75 mm
Control Unit	Speed control via LED display with 5 programs memory Six Temperature controller to control 6 hot plates independently with +/-1°C accuracy up to 350°C
Certificate	All electric components ( >24V) are UL certified. (except heating element)
Compliance	CE certified NRTL or CSA certification is available upon request at extra cost. please click marks below to learn details )
Application note	In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information) Use an ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information) The compact dip coater can be put in an MTI glovebox to operate under a control atmosphere Please put the coaster into a fume-hood as the pic below right, if liquid release vapor
