• Voltage: 308V AC , 50/60Hz, Three-phases
• Power: 10 KW

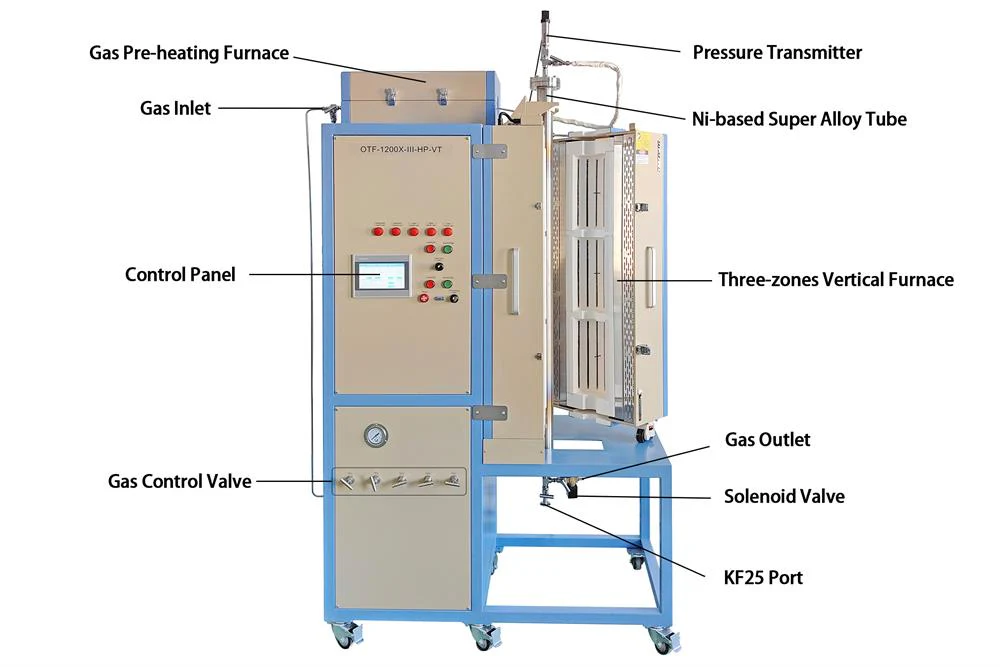

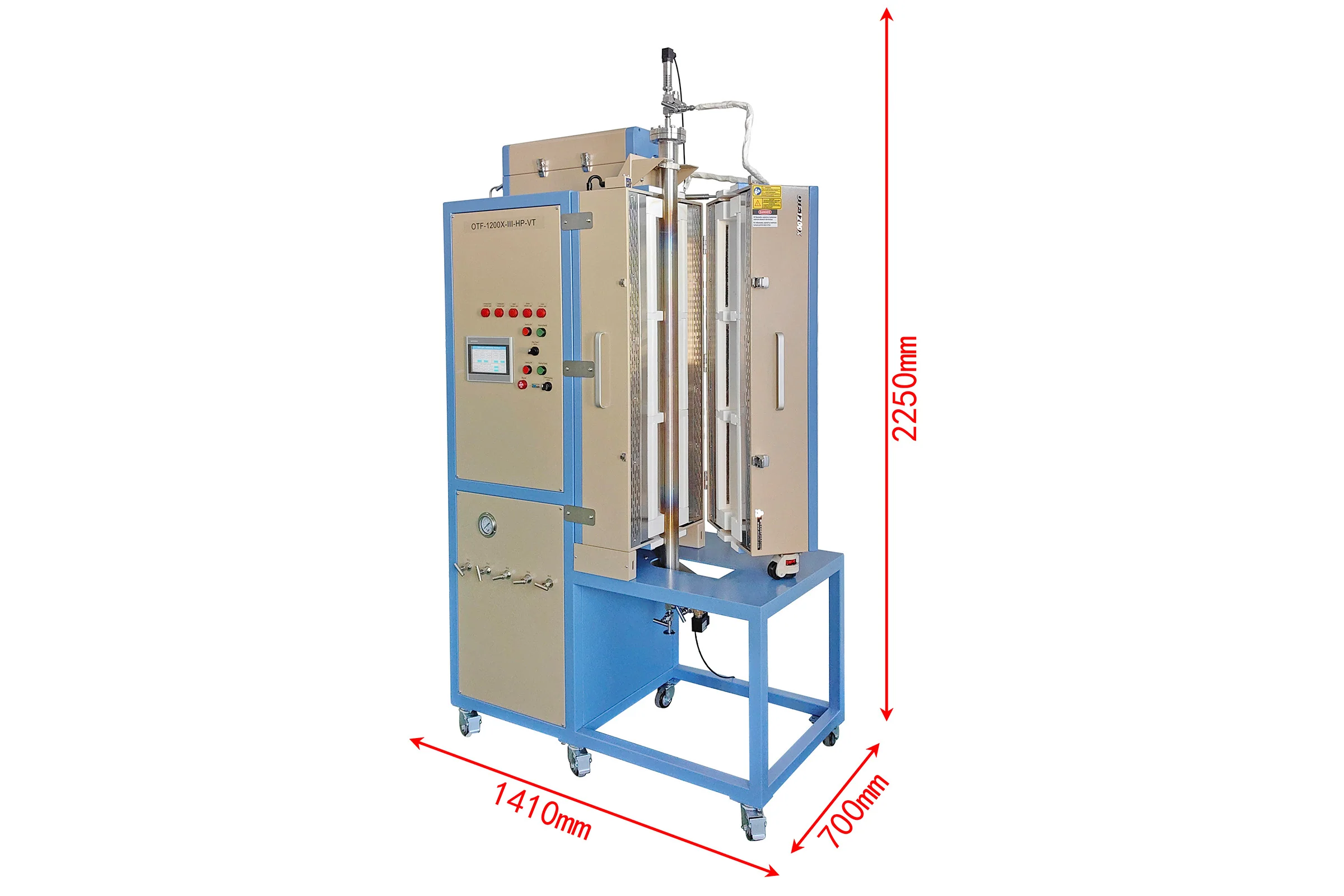

• Vertical split door design for easy installation of tube
• Separated temperature control unit
• Max. Working Temperature: 1200 °C ( less than 30 mins )
• Continuous Working Temperature: 1100 °C
• Recommend Heating Rate: ≤ 10 ºC/min
• Three heating zones with 900 mm total length ( 300 + 300 + 300 mm) with independent temperature control

• Gas Pre-heating Furnace provides heated gas to processing vessels via 316L SS tube
• Voltage: 208-240V AC, 50Hz
• Power2.4 KW
• Length of Heating Zone: 400 mm
• Max. Working Temperature: 700°C ( Max. pressure at this temperature: ≤ 2.5 MPa)
• Length of Heating Tube: Ø 25 x 700 mm (spiral shape)

• Two types of processing tubes and flanges are included:
• Quartz Tube: Ø 60 O.D. x Ø 52 I.D. x 1400 L (mm)
  • Frits with forced convection design can trap the particles within the central heating area (Pic.1&2)
  • One mechanical pressure gauge is pre-installed on the top flange
• Nickel Base Super Alloy Tube with CF60 flange: Ø 60 O.D. x Ø 50 I.D. x 1400 L, mm
• One pressure transmitter is pre-installed on the top flange.
• The bottom flange is equipped with a 50-mesh air distribution plate (Pic.3)
• The pressure inside the alloy tube will be varied by the change of the temperature:
• Temperature ≤ 800ºC, Pressure: ≤ 2.5 MPa
• Temperature ≤ 900ºC, Pressure: ≤ 2 MPa
• Temperature ≤ 1000ºC, Pressure: ≤ 1.5 MPa
• Temperature ≤ 1100ºC, Pressure: ≤ 1 MPa
• The pre-installed safety relief valve will turn on automatically once the pressure exceeds the safety range.
• A KF25 port on the bottom flange to connect with a vacuum pump.

Pic. 1Pic.2Pic.3

Temperature Controller

• Three digital temperature controllers are installed to control three heating zones independently
• 50 programmable segments for precise control of heating rate, cooling rate, and dwell time.
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• +/- 1 ºC temperature accuracy.
• Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy

Optional Vacuum Pump

• The vacuum pump is not included in the standard, please click here to order a vacuum pump separately.


Laptop & software (Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
• Labview Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.

Compliance

• CE Certified
• NRTL or CSA certification is available at an extra cost


Warning

• For safety operation, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure below 3 PSI. Click here to learn about the installation of a gas regulator
• The pressure inside the quartz tube must be < 0.02 MPa
• The pressure inside the super alloy tube must be < 2.5 MPa
